5" Lift Kit with OK 2.5" Shocks suits Chev 2500/3500 (11-19) / GMC 2500/3500 (11-19) by Zone Offroad

• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Finish: Powdercoat
• Front Lift Height: 5"
• Front Lift Method: Torsion Bar Drop
• Lift Type: Lift Kit
• Material: Steel
• Rear Lift Height: 3"
• Rear Lift Method: Cast Blocks
• Requires Metal Cutting: Yes
• Requires Welding: No

Installation

• Install Guide 1
• Estimated time: 7 hours
• Difficulty: Difficult

Install Tools

Torsion Bar Unloading Tool

Tyre & Wheel

• 35 x 12.5 with 17 x 9 and 4.75 in. Backspace
• 285 / 65 with 20 x 9 and 6 in. Backspace
• 35 x 12.5 with 20 x 9 and 6 in. Backspace

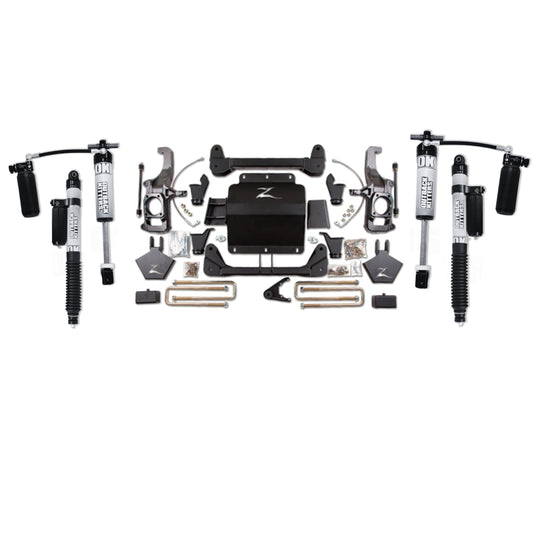

Kit Components

• ZONC2630: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (1of5)
• ZONC2631: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (2of5)
• ZONC2632: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (3of5)
• ZONC2633: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (4of5)
• ZONC2634: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (5of5)
• ZONC2639: Zone Offroad 2011-2019 Chevy/GMC HD 3in Rear w/o Top Overload
• OKSUCH205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
• OKSUCH205R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single

• 2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
• Fitment: WILL fit RWD models, however the front differential related parts in kit will not be used.
• Frame bracket modifications required for installation.
• Mod's Required: Modifications required for installation. See installation instructions for more information.
• Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• Will fit RWD models. The front differential related parts will not be used.
• With a 20" Wheel, 5"-6" backspacing is recommended.
• In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.
