6.5" Lift Kit with Fox 2.5" PES DSC Coilover Shocks suits Chev 2500/3500 (2020+) / GMC 2500/3500 (2020+) by BDS Suspension
BDS is a game changer in performance of your 2020-2026 Chevy Silverado and GMC Sierra 2500 HD truck with a 6.5-inch suspension lift kit with FOX 2.5 Coil-Over conversion. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.
In addition to replacing the factory torsion bars, the upper and lower control arms are upgraded to improve strength, travel, and accommodate the new coilovers. The new upper control arms are fabricated from large 1.5" OD x .120-wall tubing, fully TIG welded for the highest quality, strength and durability. To compliment the uppers, the new lower control arms are built from high strength steel, fully boxed with internally gusseted.

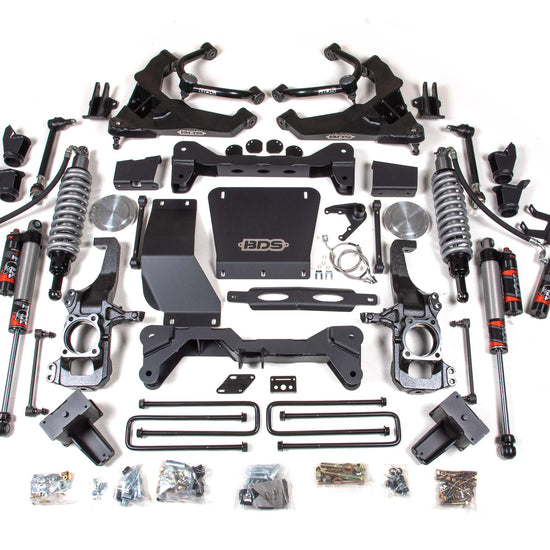

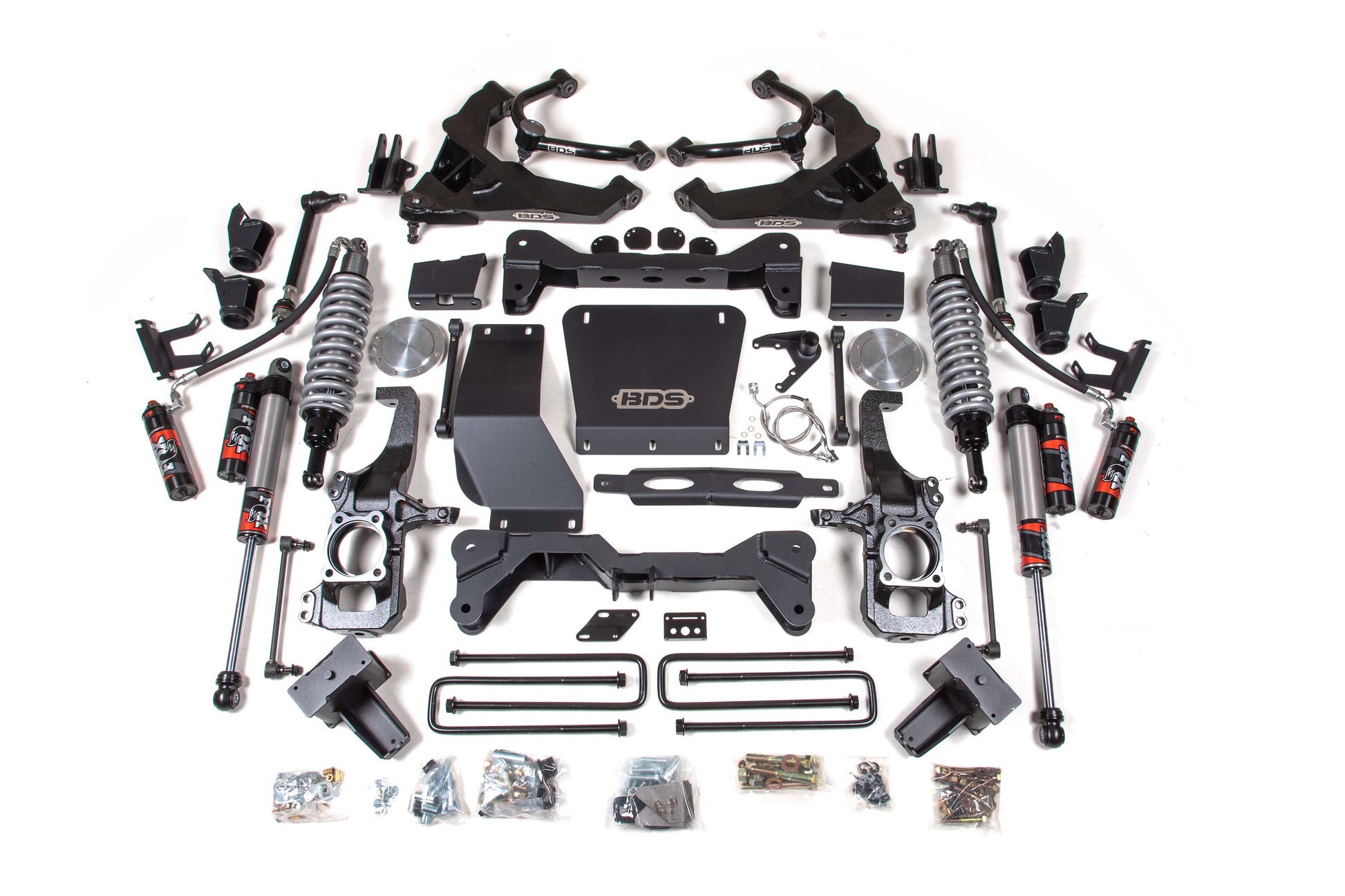

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, fully boxed and gusseted lower control arms, high-arched 1/4-inch thick steel crossmembers, and a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned FOX 2.0 Performance Series shocks for ultimate off road performance.
FOX Performance Elite

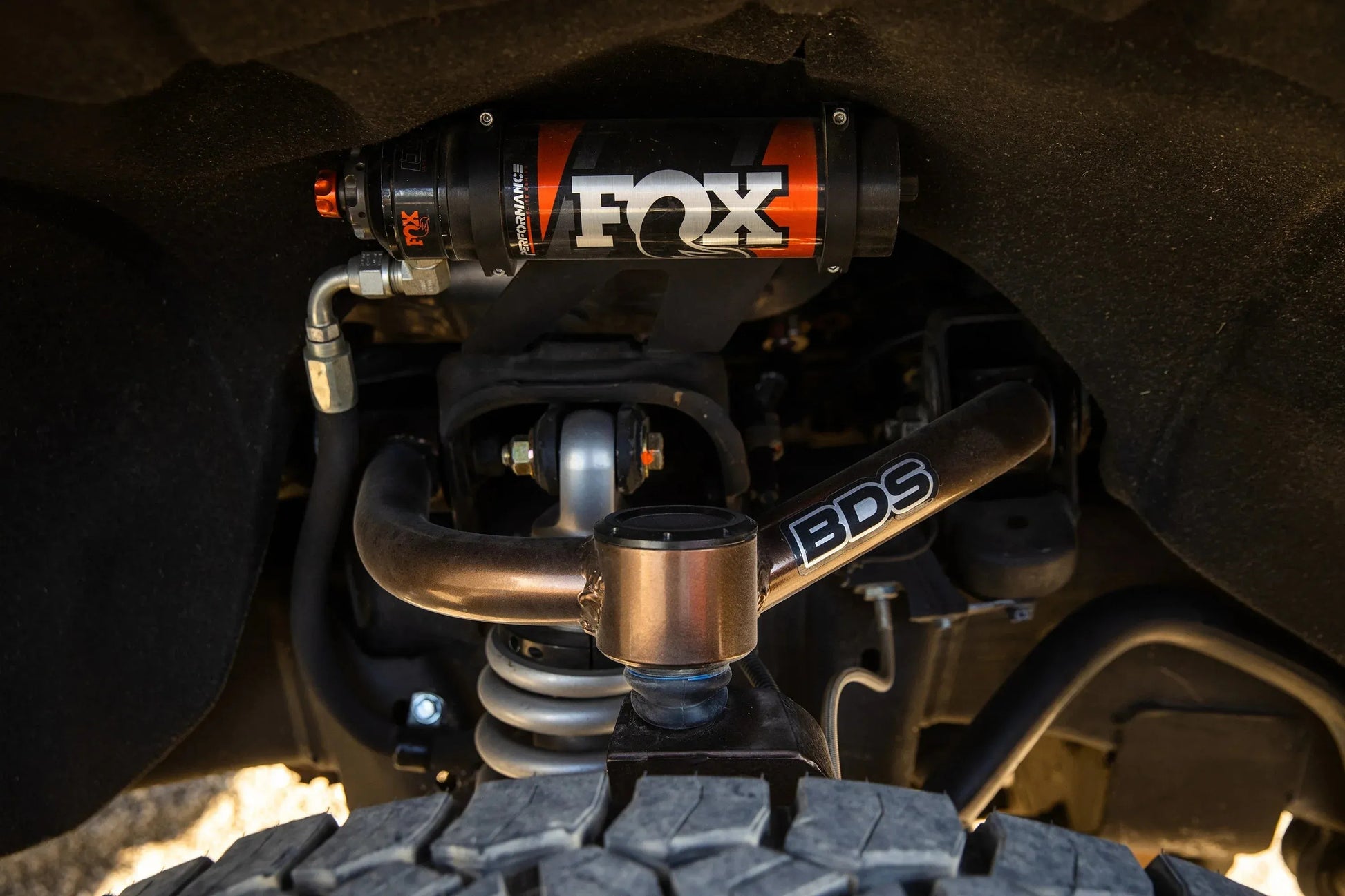

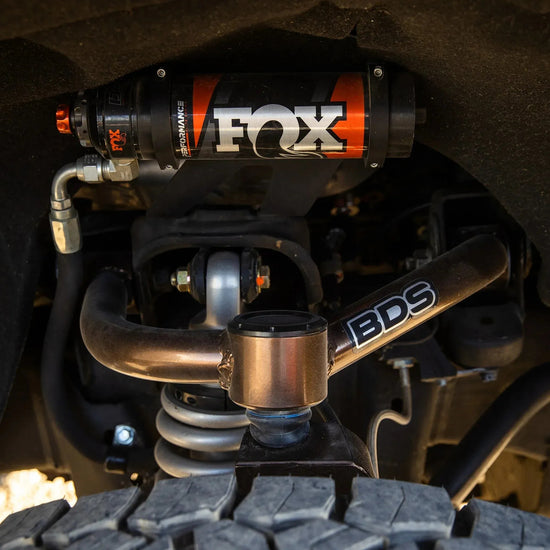

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Control Arms
Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Engineered to Perform
BDS suspension kits are purpose-built for strength, reliability, and a perfect fit. Each system includes everything you need to get your ute or truck sitting right, with no hidden extras.
Key Features:
- Lift heights from 2” to 8”
- Complete systems – nothing left out
- FOX shock upgrades available
- Designed to maintain factory ride comfort
- Lifetime No Fine Print Warranty
On-Road Comfort. Off-Road Capability.
From the bitumen to the bush, BDS delivers a smooth, controlled ride. Pair your kit with FOX shocks tuned for your vehicle, and you’ll have the confidence to tackle corrugations, ruts, and washouts with ease.
Highlights:
- Maintains driveline geometry
- Built for towing and heavy loads
- Designed and tested for tough Aussie conditions
Built Tough. Backed for Life.
Every BDS kit is finished with a premium powder coat for corrosion resistance and backed by a lifetime warranty. Break it, bend it, or crack it – BDS will replace it—no fine print. No worries.
Brand Promise:
- Lifetime warranty, no questions asked
- Trusted by off-roaders worldwide
- Backed by expert local support
Why Choose BDS Suspension?
BDS isn’t just another lift kit – it’s peace of mind. With precision engineering, heavy-duty components, and unbeatable after-sales support, you’re not just buying a kit, you’re investing in every trip your rig takes.
Quick Points:
- Proven performance in Aussie conditions
- Designed to work seamlessly with late-model 4WDs and utes
- Backed by one of the strongest warranties in the industry
Adventure Starts Here
Whether you’re towing the caravan, hauling gear for work, or hitting the tracks on the weekend, BDS Suspension gives your rig the clearance, stance, and strength it needs to handle anything Australia throws at it.
FREQUENTLY ASKED QUESTIONS
Yes. Lift kits must meet Australian vehicle standards. Check our GVM Upgrade page for the list of lift kits we can make compliant pre- and post-registration.
Generally, no. Under Australian Consumer Law, your warranty can only be denied if the lift kit directly causes a failure.
Refer to the wheels and tyres compatibility table above on the product page, which specifies the correct sizes for each BDS lift kit.
Contact us to be put in touch with a reputable installer, or check our Dealer Network for approved fitment specialists.
BDS provides a manufacturer warranty covering defects in materials and workmanship. Terms vary by product, so check the product page for details.
It depends on your vehicle. Check our GVM Upgrade page for the list of lift kits that can be made compliant pre- and post-registration.
Yes. All BDS lift kits are FMVSS compliant and have passed Electronic Stability Control (ESC) tests.
Short answer: No. Strut and coil spacers are not legal for compliance in Australia.
Installation requires specialised tools and expertise. While experienced DIYers can attempt it, professional installation is highly recommended to ensure safety and compliance.
Yes. A lift kit changes the vehicle’s centre of gravity and suspension geometry. BDS kits are engineered to maintain safe handling, but correct installation and setup are essential.
Not usually. Most BDS kits include upgraded shocks designed to match the lift, ensuring proper ride quality, handling, and compliance.
BDS lift kits are designed to maintain towing and payload capacity, but check the vehicle-specific kit and consider any additional suspension or GVM upgrades.
America’s Garage adapts BDS kits for Australian conditions, removing spacers and supplementing with coils and shocks to meet legal compliance and provide optimal performance.
Other unrelated components remain under warranty. Only parts directly affected by the lift installation could potentially be questioned in a warranty claim.
