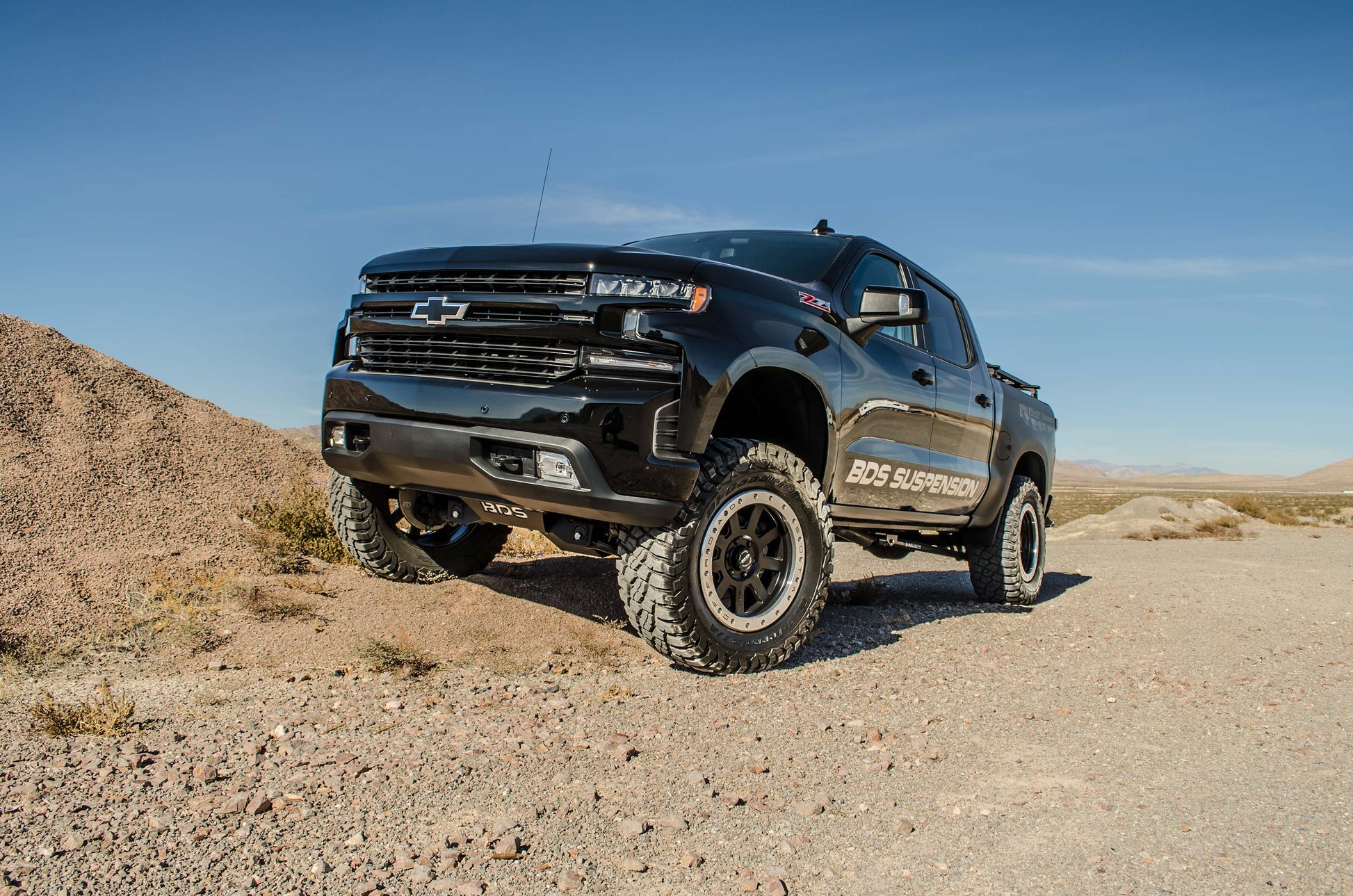

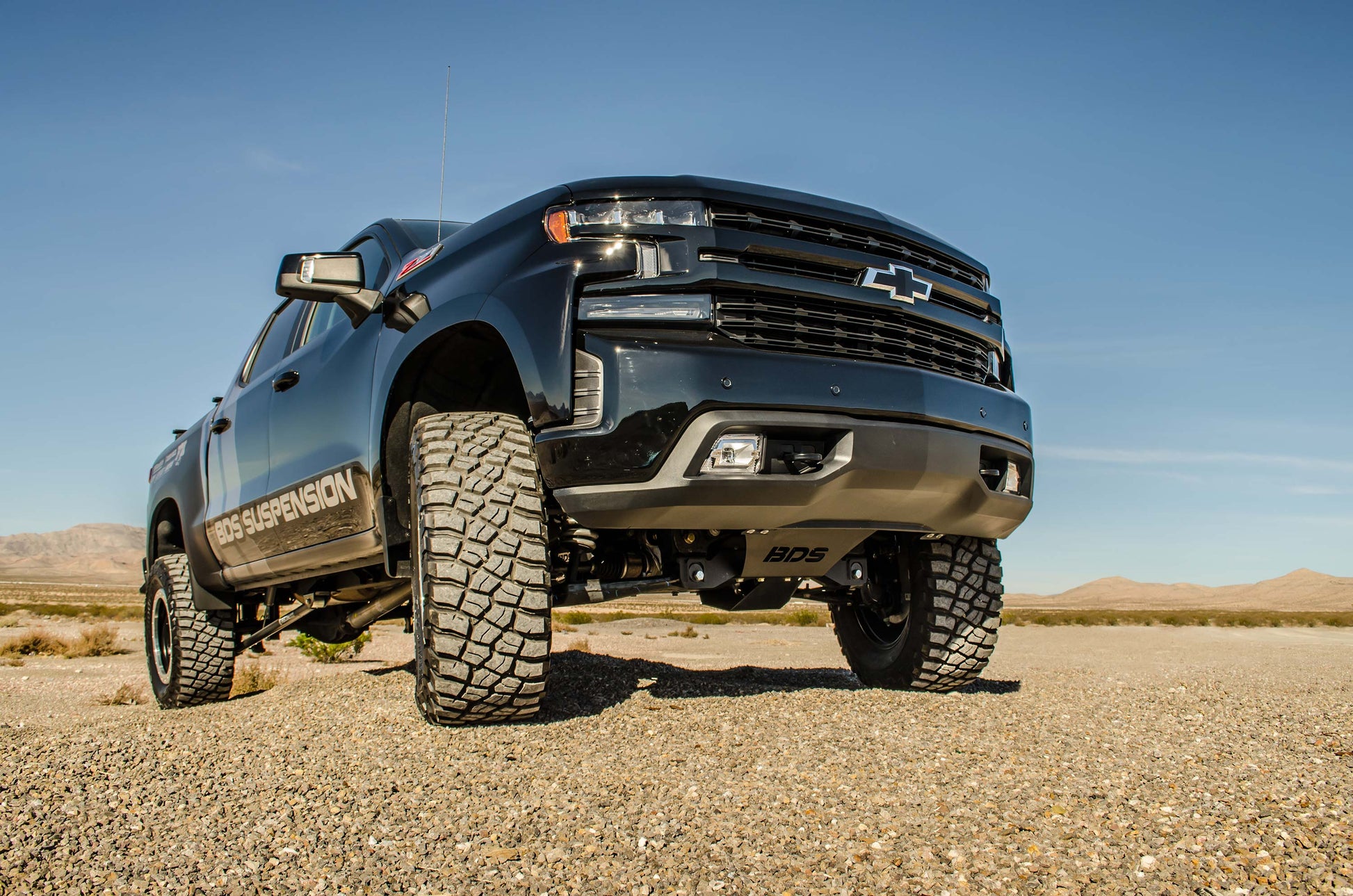

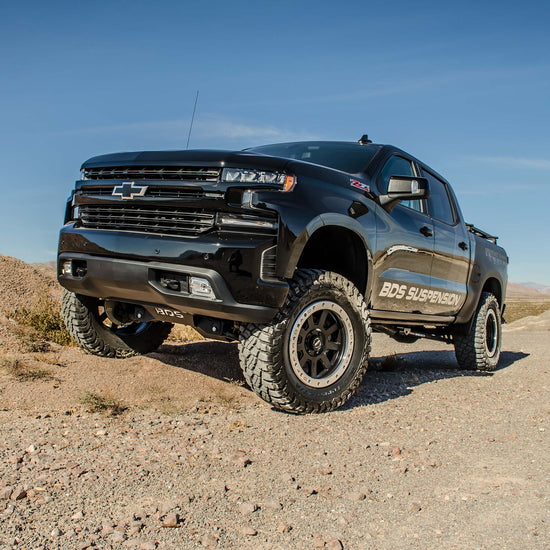

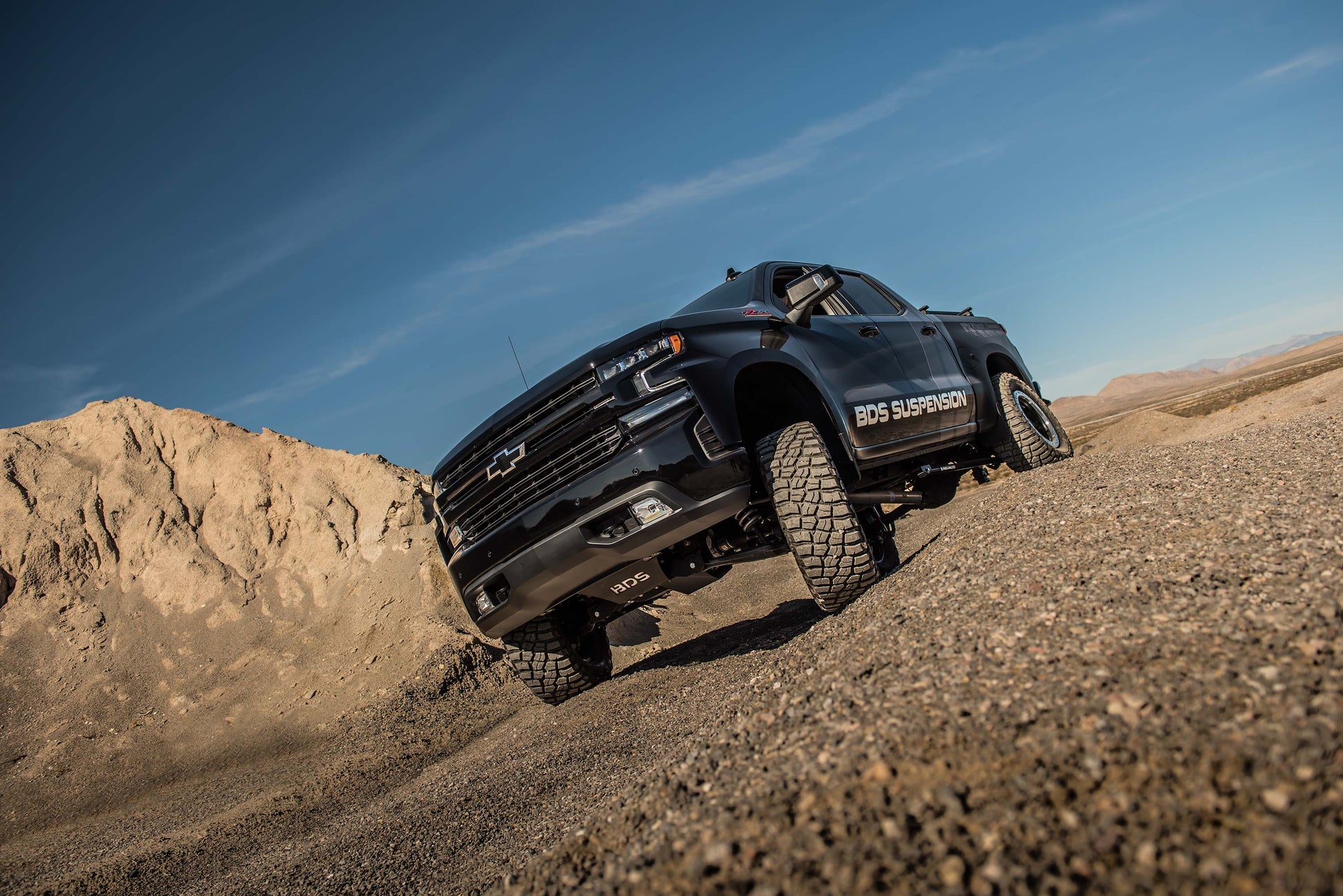

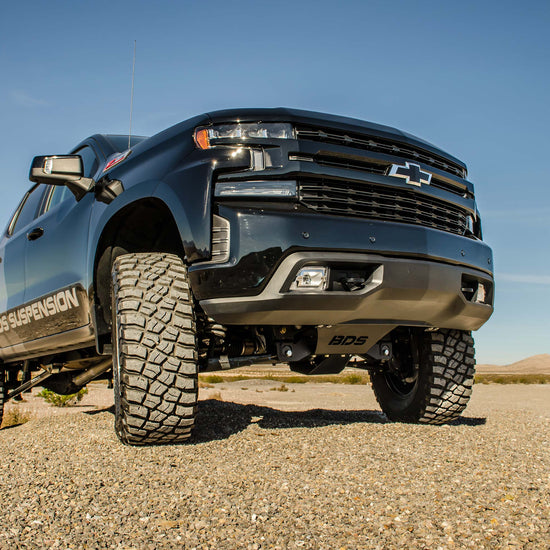

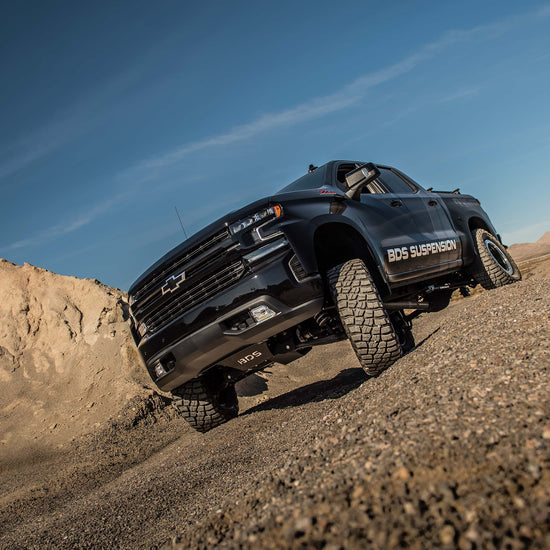

6" Lift Kit with Fox 2.5" PE DSC Coilover Shocks (Petrol) suits Chev 1500 (2019+) / GMC 1500 (2019-2025) by BDS Suspension

• Front Lift Method : Cross-Member
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 6"
• Rear Lift Height : 4"

Installation

• Install Guide 1
• Install Guide 2
• Estimated time: 8 hours
• Difficulty: Difficult

Install Tools

36mm Socket; Cut Off Wheel or Equiv.; Ball Joint Separation Tool; Reciprocating Saw; Welding Equipment

Tyre & Wheel

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
• 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

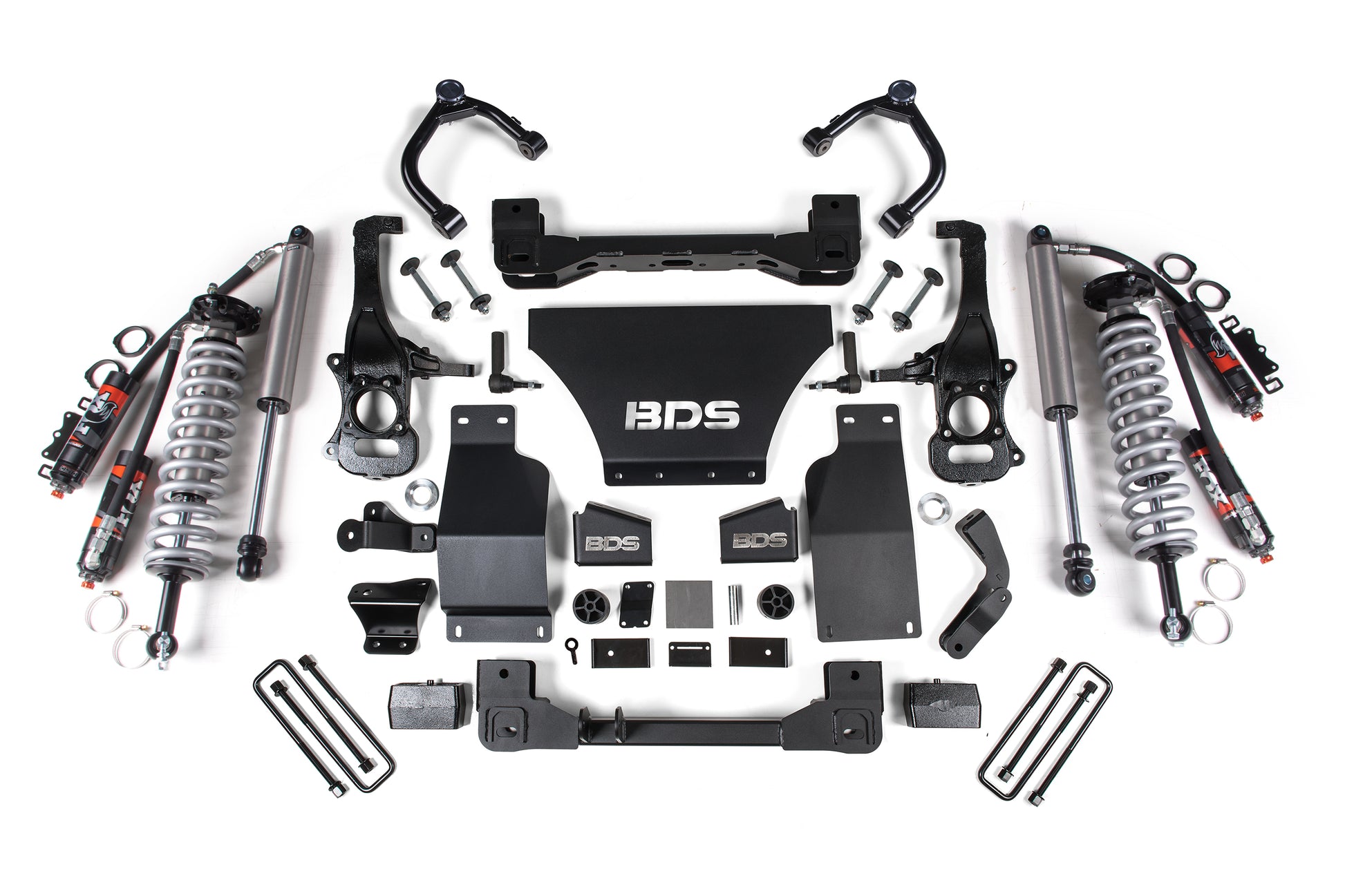

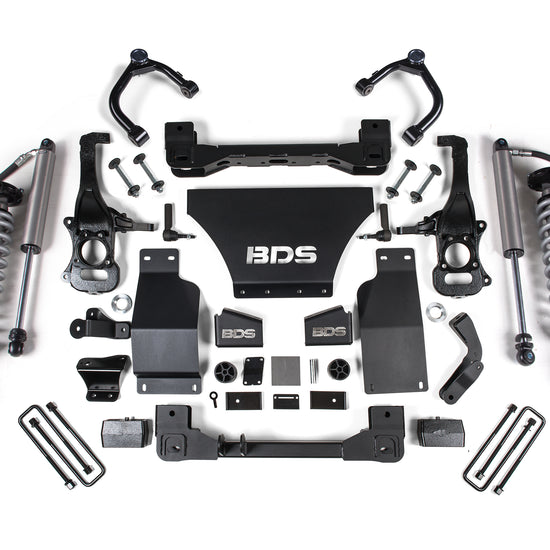

Kit Components

• BDS011518: BDS Suspension 2019+ Chevy/GMC 1500 Rear Box Kit - 5"
• BDS021664: Knuckle Box (1 of 2) with Upper Control Arm (4" and 6" Compatible)
• BDS021665: BDS Suspension 2019+ Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4" and 6" Compatible
• BDS021682: Chevy/GMC 4" or 6" Front Box Kit (1 of 2)
• BDS021683: Chevy/GMC 4 or 6" Front Box Kit (2 of 2)
• BDS121633: Coilover Reservoir Mounting Bracket Kit
• 884-06-323 (FOX88406323): Fox 2019+ Chevy/GMC 1500 Front 2.5" Remote Reservoir Coilover Shocks, Performance Elite Series, DSC, 6" Lift, Set of 2
• 884-26-023 (FOX88426023): Fox 2019+ Chevy/GMC 1500 Rear 2.5" Remote Reservoir Performance Elite Shocks, DSC, 4-6" Lift, Set of 2

• Stock wheels and stock tyres cannot be reinstalled due to tie rod end interference.
• Requires frame bracket modification.
• 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
• Actual ride height on coilover kits is closer to 6.5'' of lift
• If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required).
• 2.7L Turbo models use Diesel kit for proper skid plate fitment.
• Will not fit models equipped with ARC
