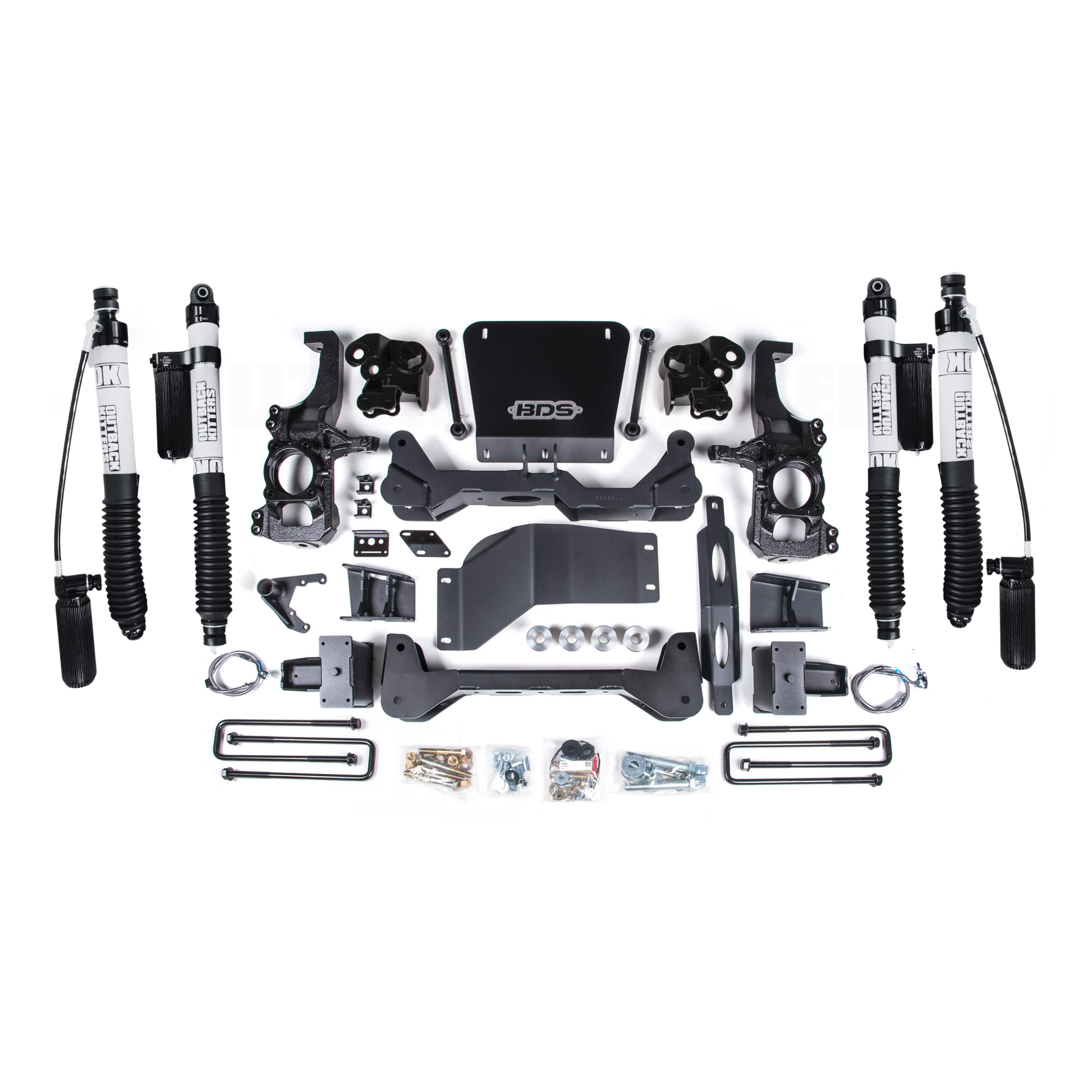

5" Lift Kit with OK 2.5" Shocks by BDS Suspension

• Front Lift Method : Cross-Member
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 5"
• Rear Lift Height : 4.5"

Installation

• Install Guide 1
• Estimated time: 10 hours
• Difficulty: Difficult

Install Tools

• 36Mm Socket
• Cut Off Wheel Or Equiv
• Saw Reciprocating
• Torsion Bar Unloading Tool

Tyre & Wheel

• 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 10 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Kit Components

• BDS011416: 5" Rear Box Kit without overloads
• BDS021505: BDS Suspension 2020+ Chevy/GMC 2500/3500 HD 5" Box Kit
• BDS021690: 5-6.5" Knuckle Box Kit (LHS)
• BDS021691: 5-6.5" Knuckle Box Kit (RHS)
• BDS021692: 5-6.5" Front Box Kit (1 of 2)
• BDS021693: 5-6.5" Front Box Kit (2 of 2)
• BDS121661: BDS Suspension 2020+ Chevy/GMC 2500/3500 HD 5"-6.5" Skid Plate Box Kit
• OKSUCH205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
• OKSUCH205R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
• BDS121304: Upper Control Arms, Set of 2

• Stock wheels and stock tyres cannot be reinstalled due to tie rod end interference.
• For DRW models, use the w/ overload rear lift option
• Requires frame bracket modification.
• Torsion Bar Tool required to load/unload torsion bars
• Models with two-piece rear driveshafts will require a carrier bearing drop kit.
• In some cases, vehicles used in 4WD on the highway frequently could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
• Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more than the tested 5" lift height.
• Some minor trim will be required with certain wheel/tire combinations. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally include the bottom edge of the inner fender shrouds and/or the lower corner of the front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required.
• Further trimming tips are included at the end of this instruction sheet.
• Will NOT work with AT4X or ZR2 models, lower control arm profile is different
