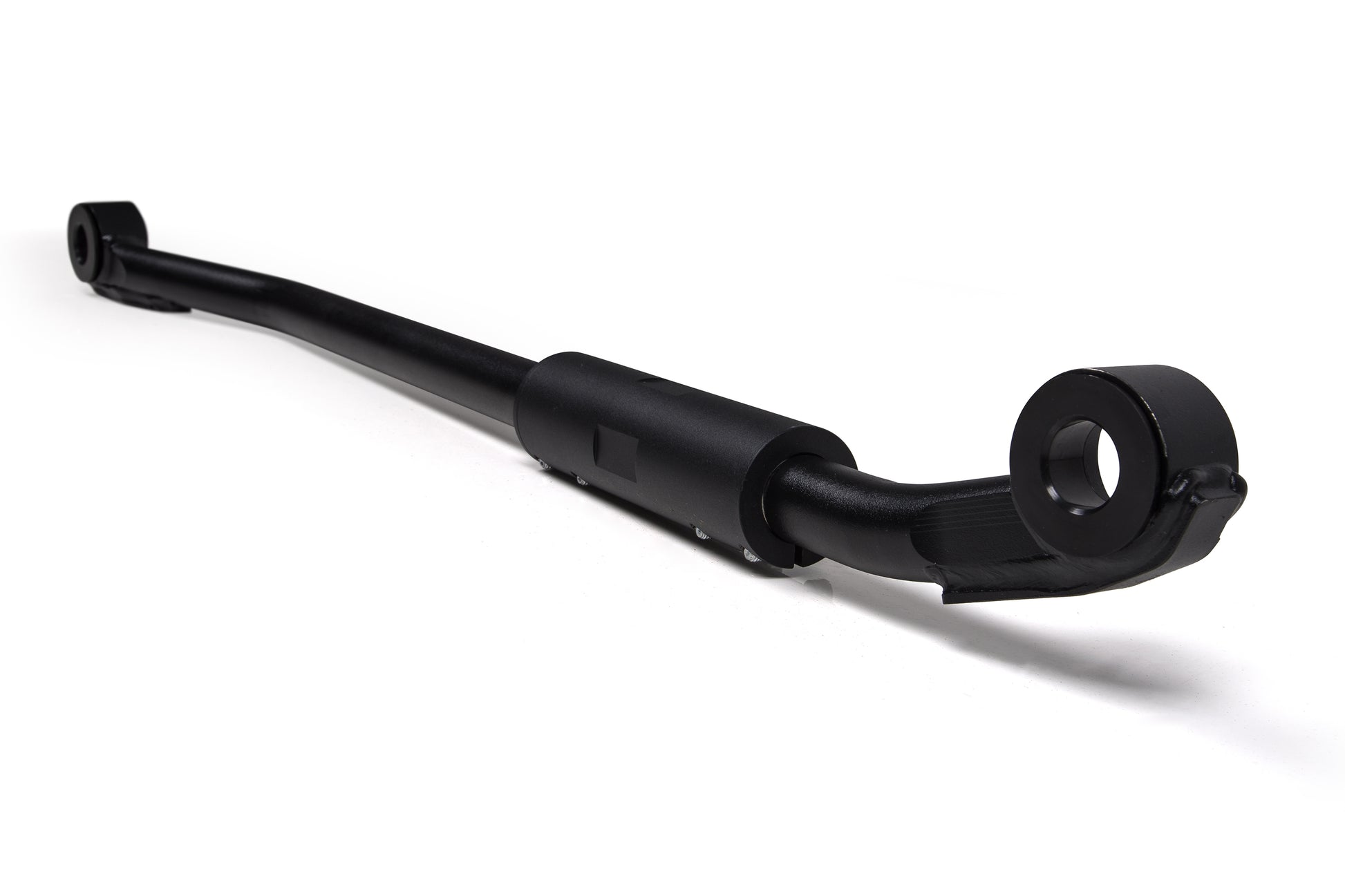

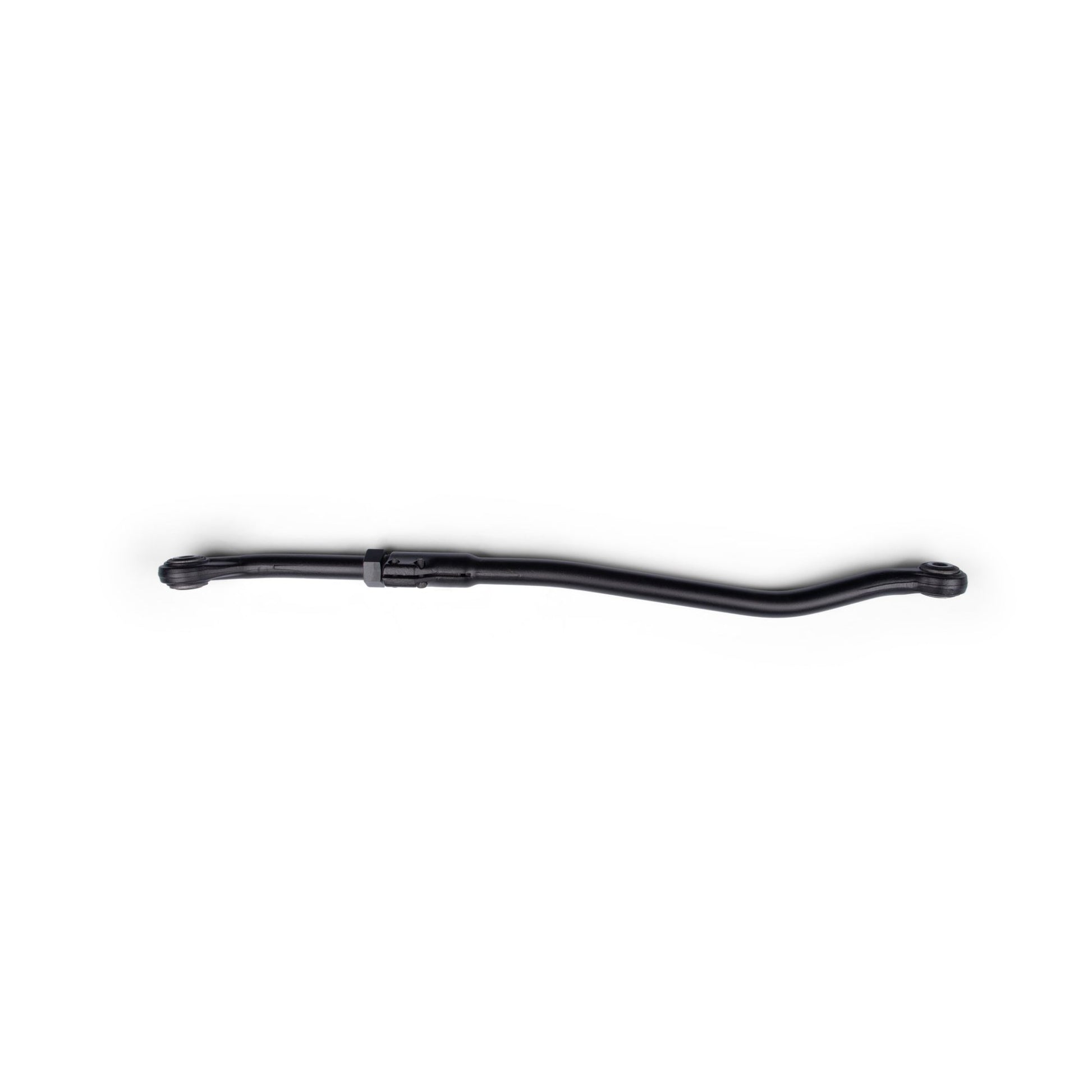

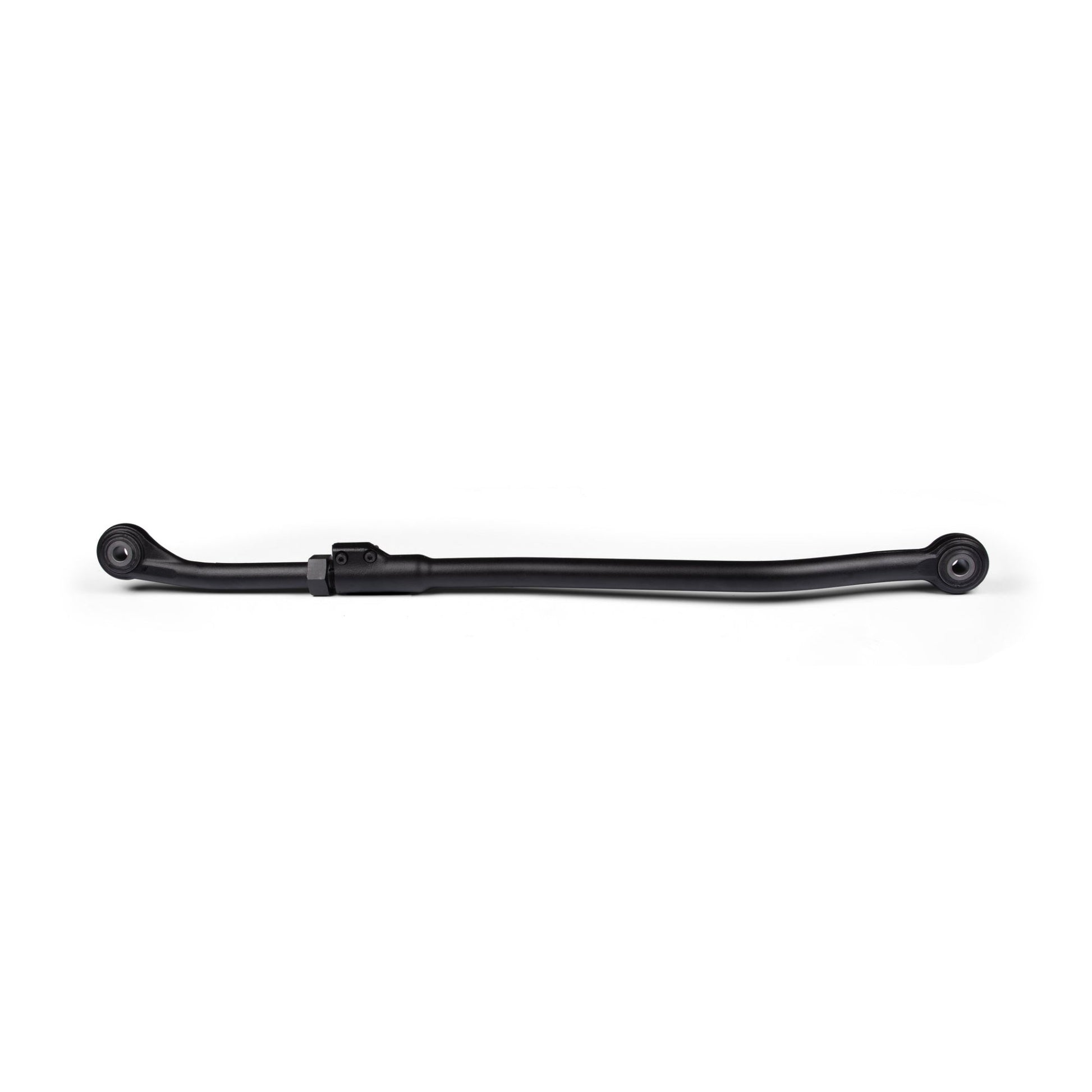

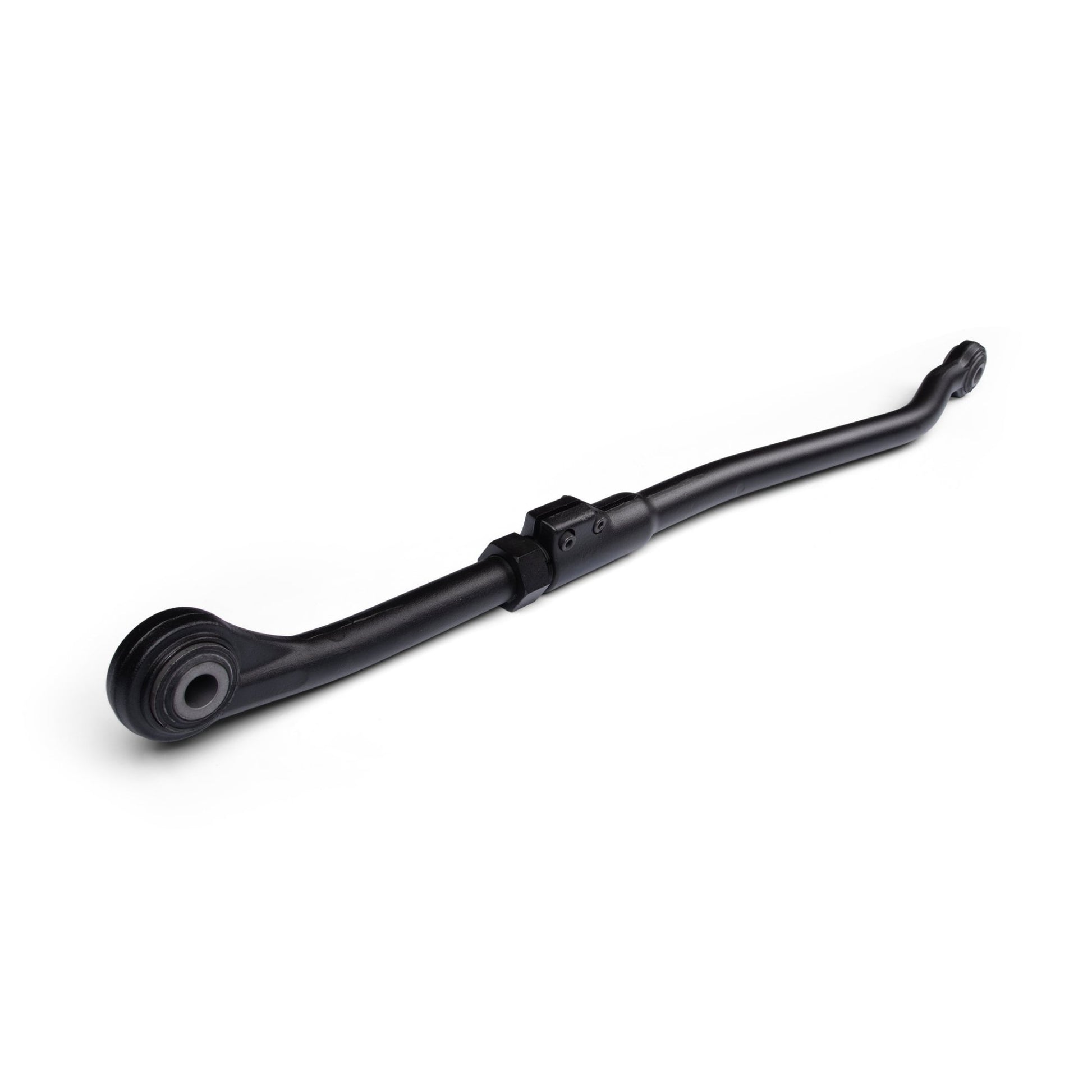

Front Adjustable Track Bar suits Ram 2500 (11-26), 3500 (13-24) by BDS Suspension
Upgrade the steering feel, handling, and durability of your RAM with the BDS Forged Adjustable Front Track Bar for 2014-2027 RAM 2500 and 2013-2027 RAM 3500 4WD trucks. Engineered with strength, durability, ease of adjustment, and overall driver comfort as top priorities, this forged steel track bar is designed to outperform in every way.

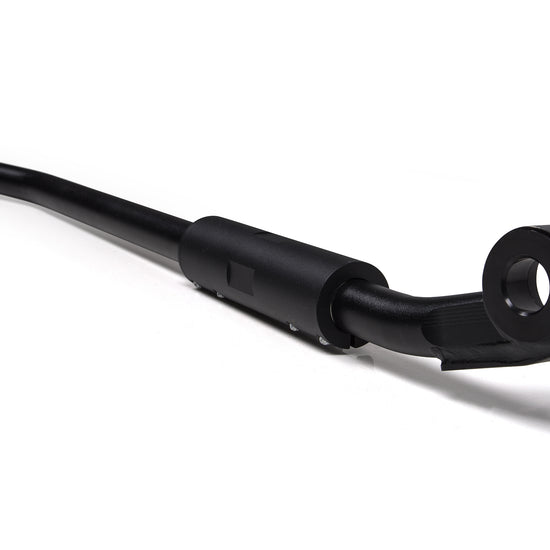

At the heart of the design is a heavy-duty forged from solid steel construction that provides exceptional strength while maintaining precise axle positioning. The bar features BDS's innovative adjustment system, utilizing a threaded adjustment sleeve with a pinch-bolt locking mechanism that allows for quick and secure adjustments without the hassle commonly associated with traditional adjustable track bars. This adjuster allows for fine adjustments versus the jam nut style where they need to be adjusted by 1/2 turns increments.

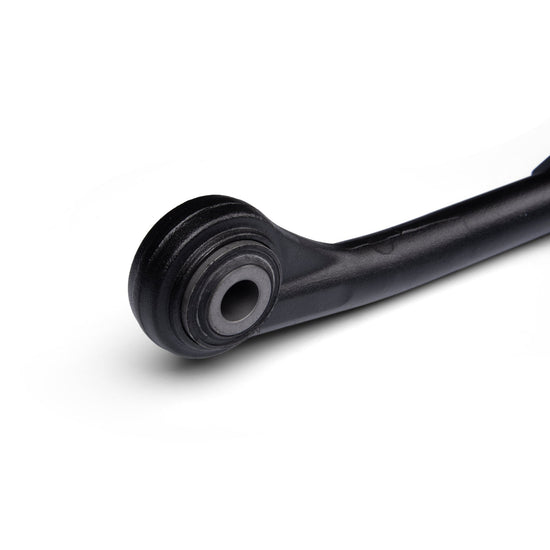

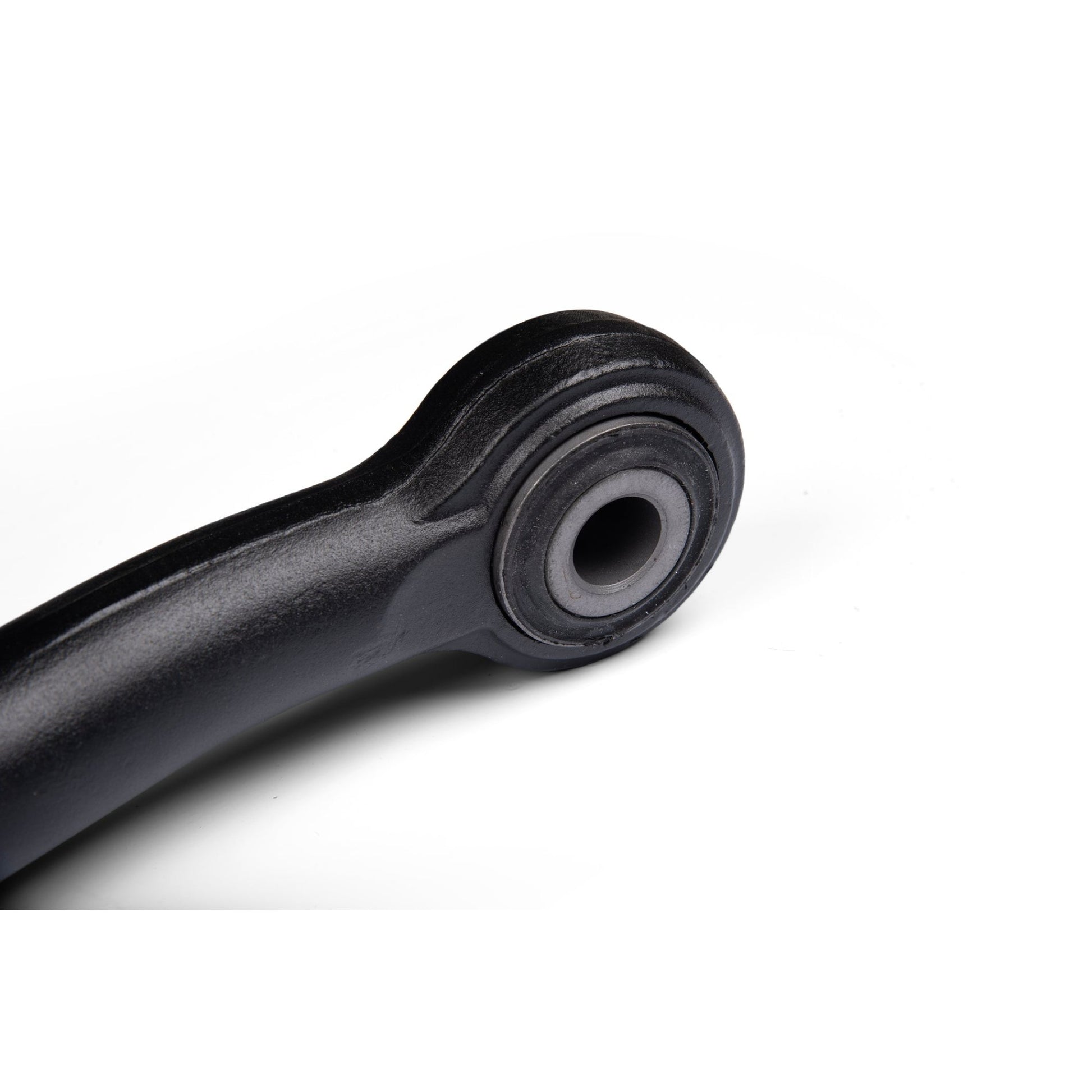

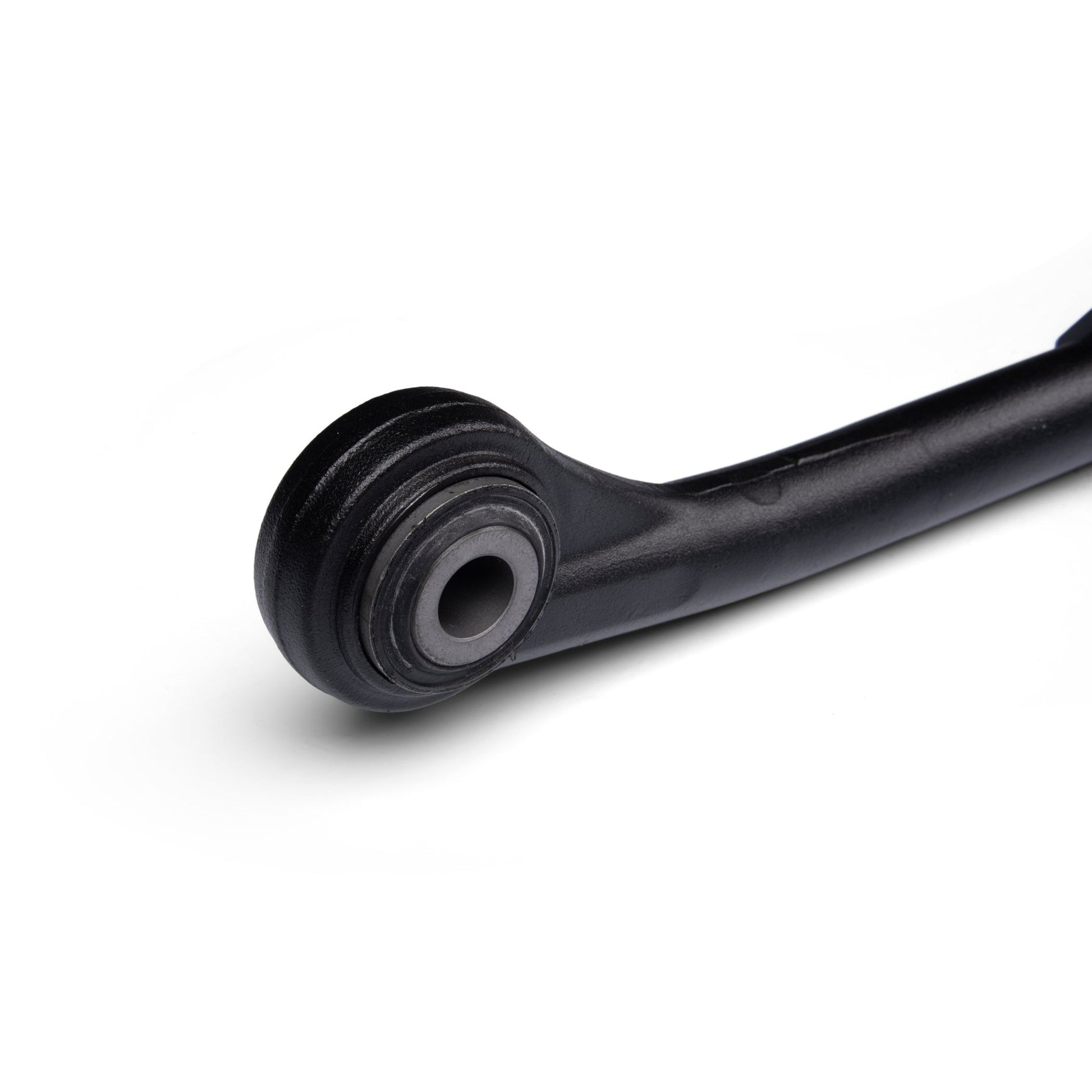

Driver comfort was equally important during development. Unlike many aftermarket track bars that can transmit road vibration and steering feedback into the cab, the BDS track bar utilizes specially engineered silent bushings that isolate unwanted noise and vibration. The result is improved steering feel, reduced driver fatigue, and a more comfortable driving experience both on and off the highway.
Whether you're correcting axle alignment after a lift or simply upgrading a worn factory component, this track bar delivers the kind of fit, function, and refinement that makes you wonder why it wasn't equipped from the factory. It's one of those rare upgrades that improves the driving experience every time you get behind the wheel.
Wheel Backspacing & Offset Calculator
Convert wheel backspacing in inches to offset in millimetres, or the other way around. Find the right measurements for your wheel setup.
Backspace to Offset Calculator
Enter wheel width and backspace (inches). Offset can be positive or negative.
- Backspace
- —
- Frontspace
- —
- Offset type
- —
Enter a valid wheel width and measurement to view the diagram.
BDS wheel positioning guidance
Meeting a backspacing limit does not guarantee wheel fitment. Check wheel diameter, tyre size, brake clearance, suspension and all kit-specific requirements.
Results are approximate. The calculation allows an additional 1 inch for the wheel's two rim flanges (approximately 0.5 inch each). Actual flange dimensions vary between wheels.
Understanding wheel measurements
What is wheel backspacing?
The distance from the wheel mounting surface to the outermost edge of the inner rim flange, measured in inches.
What is wheel offset?
The distance between the wheel mounting surface and the wheel centreline, measured in millimetres.
Why does wheel width matter?
Two wheels with the same backspacing but different widths will have different offsets.
Why does BDS specify backspacing?
It helps position the wheel relative to steering and suspension parts, but is only one part of confirming fitment.
