5" Lift Kit with OK 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (20-22) by Zone Offroad

• Adjustable: No
• Finish: Powdercoat
• Front Lift Height: 4"
• Front Lift Method: Coil Springs
• Lift Type: Lift Kit
• Material: Metal
• Rear Lift Height: 3"
• Rear Lift Method: Cast Blocks
• Requires Metal Cutting: No
• Requires Welding: No

Installation

• Install Guide 1
• Estimated time: 6 hours
• Difficulty: Moderate

Install Tools

Wrenches: Standard

Tyre & Wheel

• 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 4.5 in. Backspace

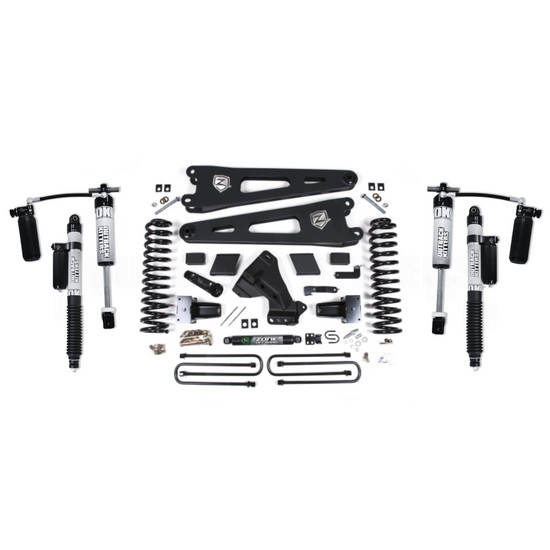

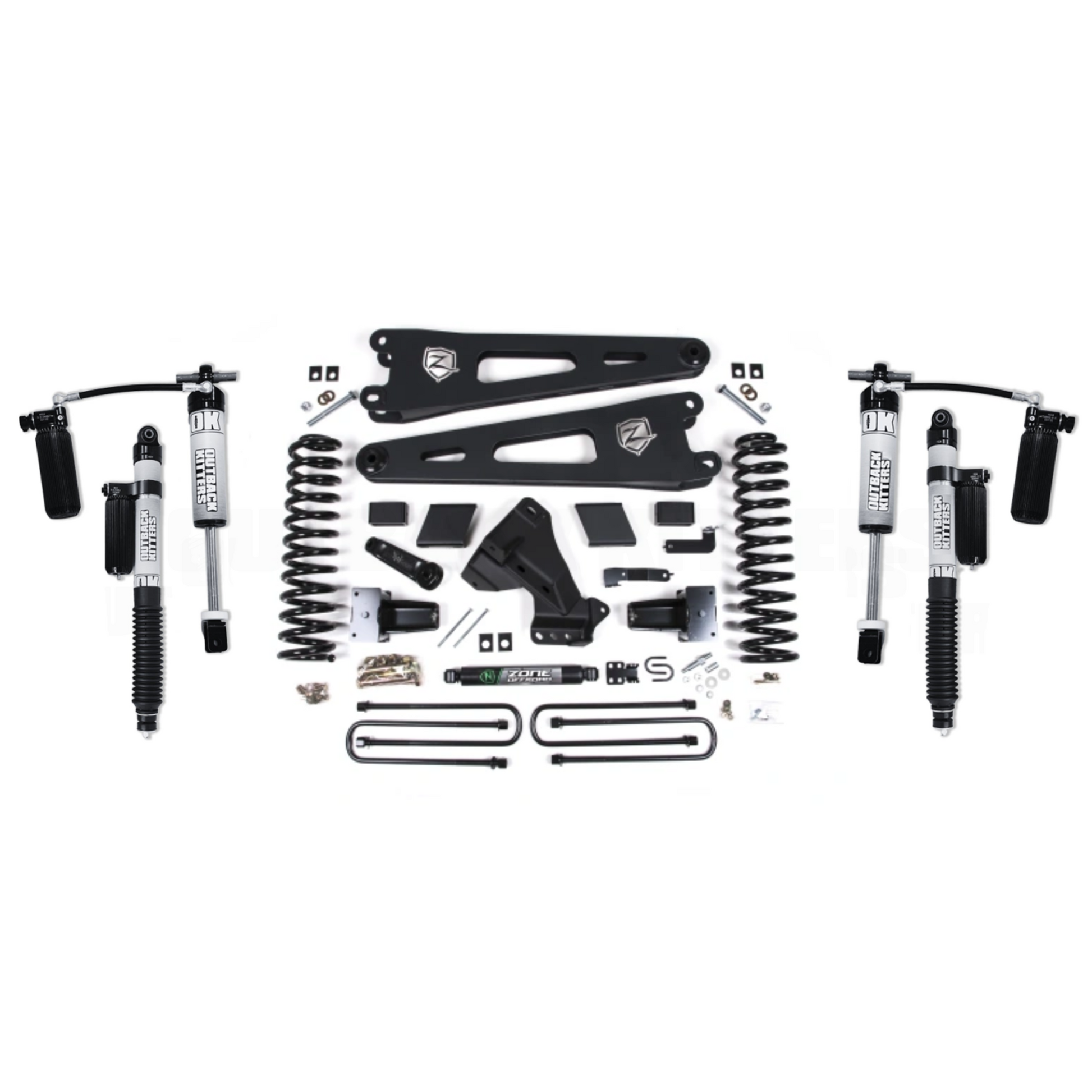

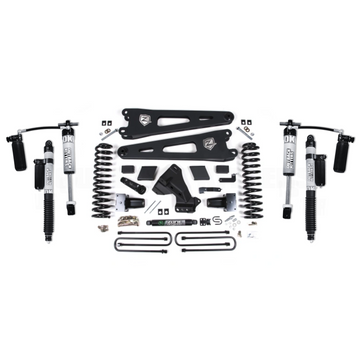

Kit Components

• ZONF1413: 4" (Diesel) Front Coil, Single
• ZONF1450: Zone Offroad 2020-2022 F250/F350 4.5" Rear Box Kit
• ZONF1601: Radius Arm, Single
• ZONF1614: Zone Offroad 2017-2022 Ford F250/F350 4-6in Radius Arm Front Box Kit
• OKSUFD205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
• OKSUFD203R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 3" Lift, Single

• 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. When adding the Dual Stabilizer option you will get the dual opposing steering stabilizer in addition to the single OE Replacement. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
