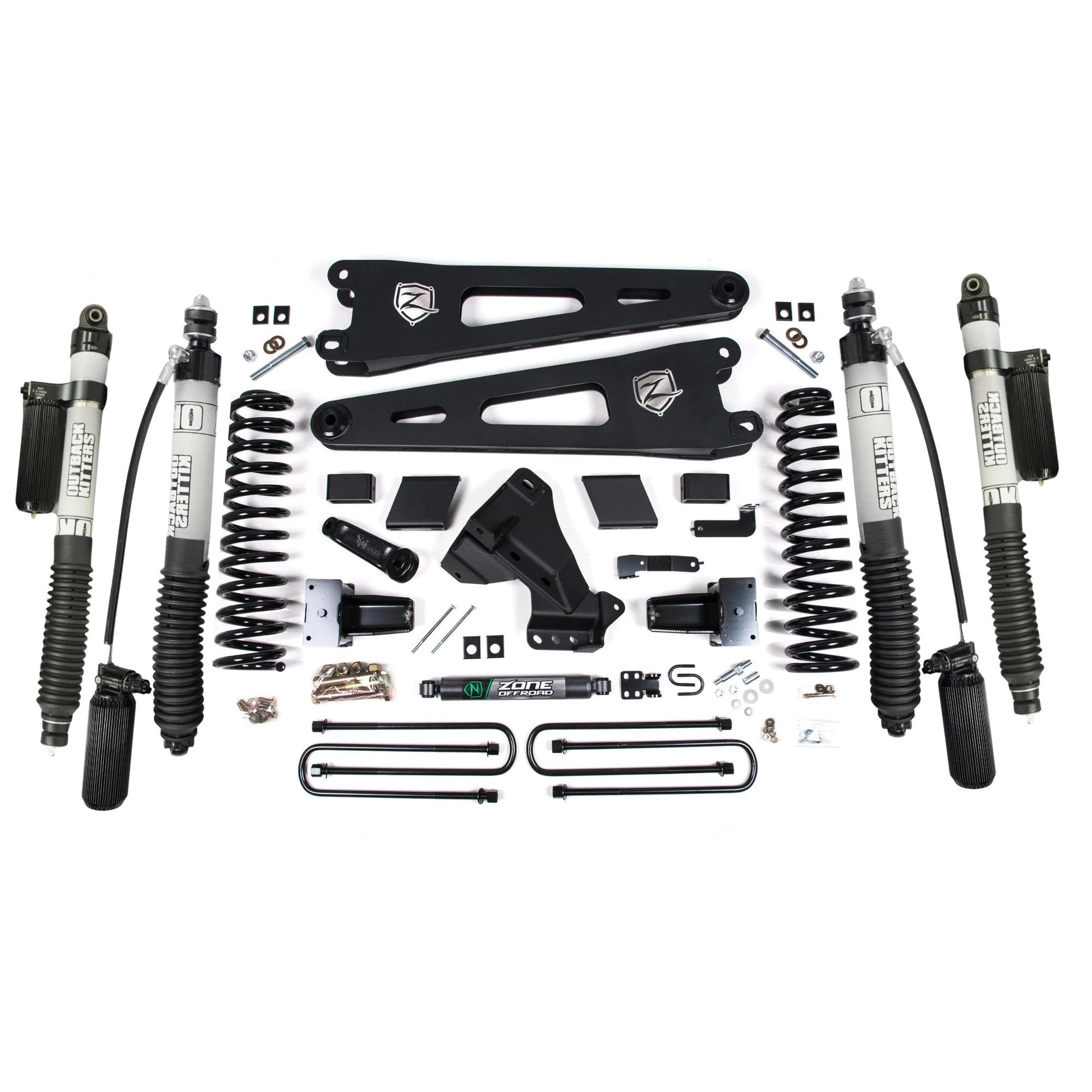

5" Lift Kit with OK 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (2023-2025) by Zone Offroad

Installation

• Install Guide 1
• Estimated time: 6 hours
• Difficulty: Difficult

Install Tools

30mm Socket; 46mm Socket; Hydraulic Floor Jack and Jack Stands; Pitman Arm Puller

Tyre & Wheel

• 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Kit Components

• ZONF1316: 5" Rear Block Kit- 2 & 3 Leaf Main - 17.25" U-Bolt
• ZONF1413: 4" (Diesel) Front Coil, Single
• ZONF1432: Zone Offroad Drivers Side Radius Arm (LHS)
• ZONF1433: Zone Offroad Passengers Side Radius Arm (RHS)
• ZONF1614: Zone Offroad 2017-2022 Ford F250/F350 4-6in Radius Arm Front Box Kit
• OKSUFD205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
• OKSUFD204F: Front 2.5" Remote Reservoir Front Shock, Compression Adjuster, to suit 4" Lift, Single

• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• When adding the Dual Stabilizer option, you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Some trucks with a rear drive-line vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends having this performed prior to installing the lift.
• Does not fit vehicles with radius arm mounted ride height sensors.
• Fits SRW models only
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory / original equipment tire size.
