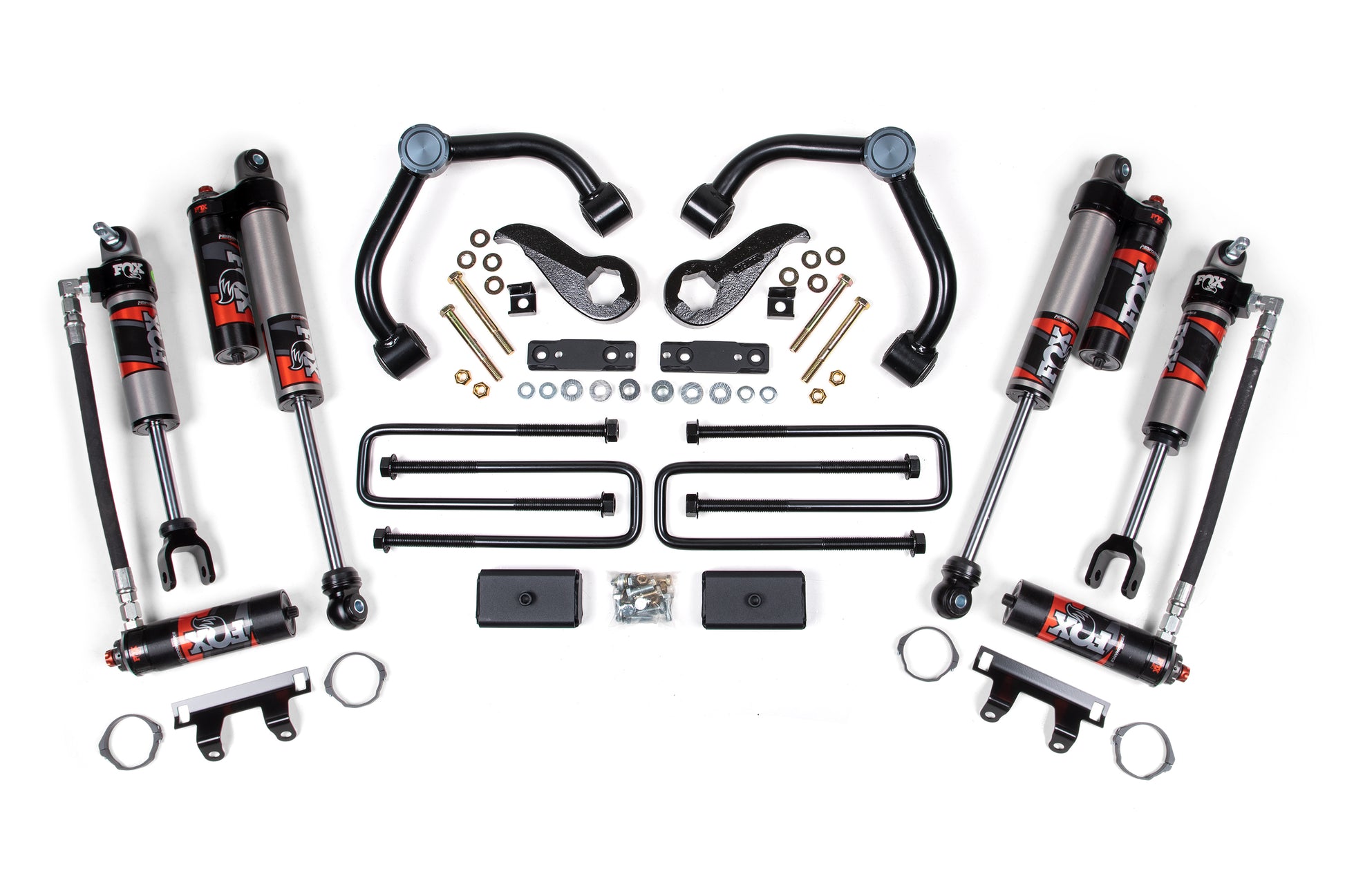

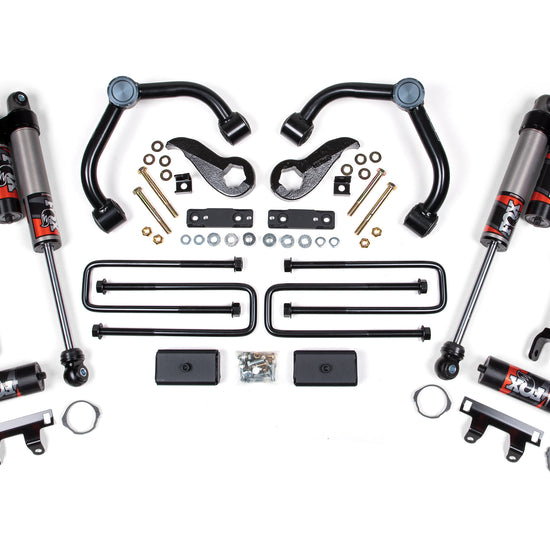

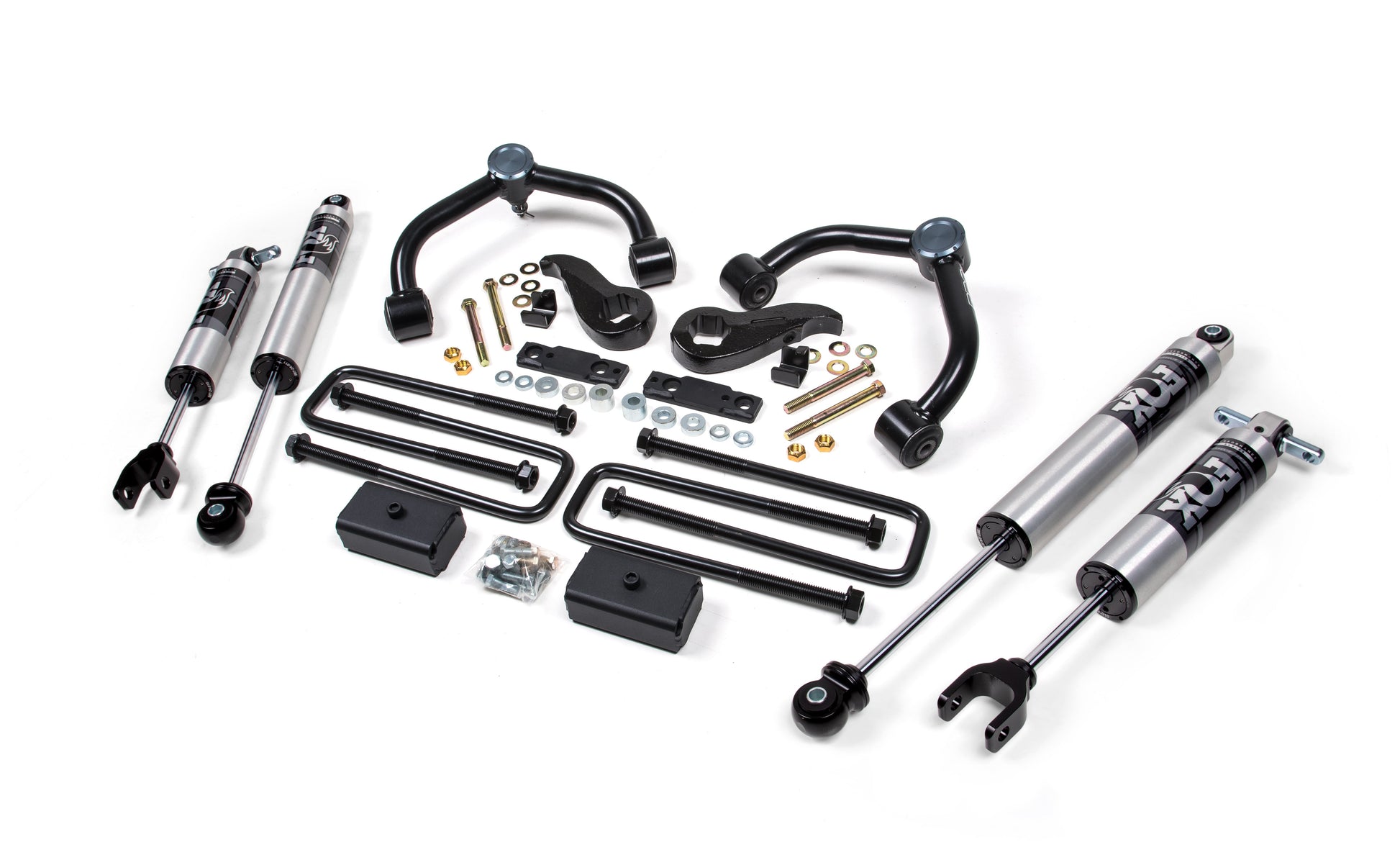

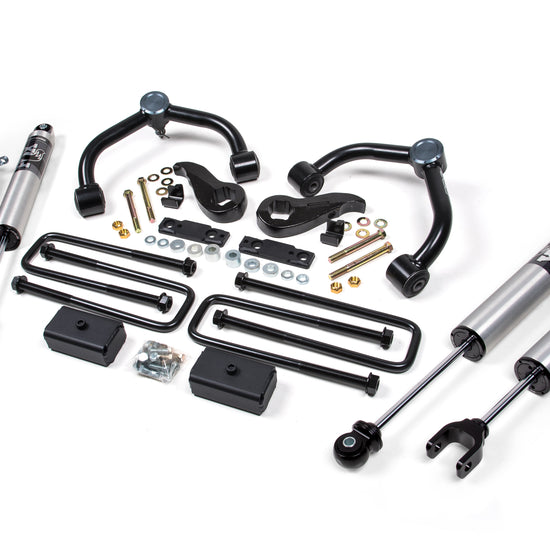

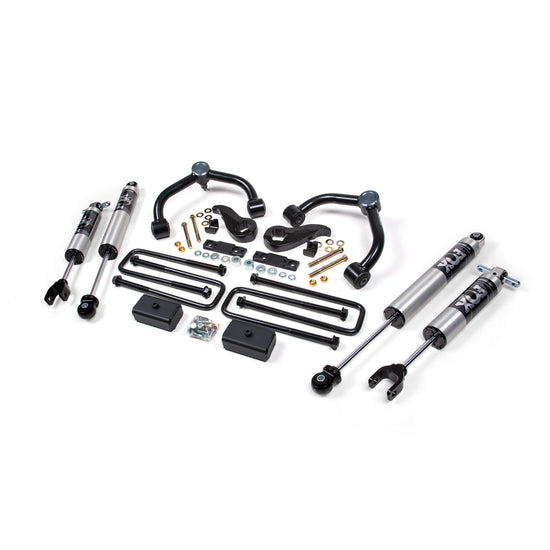

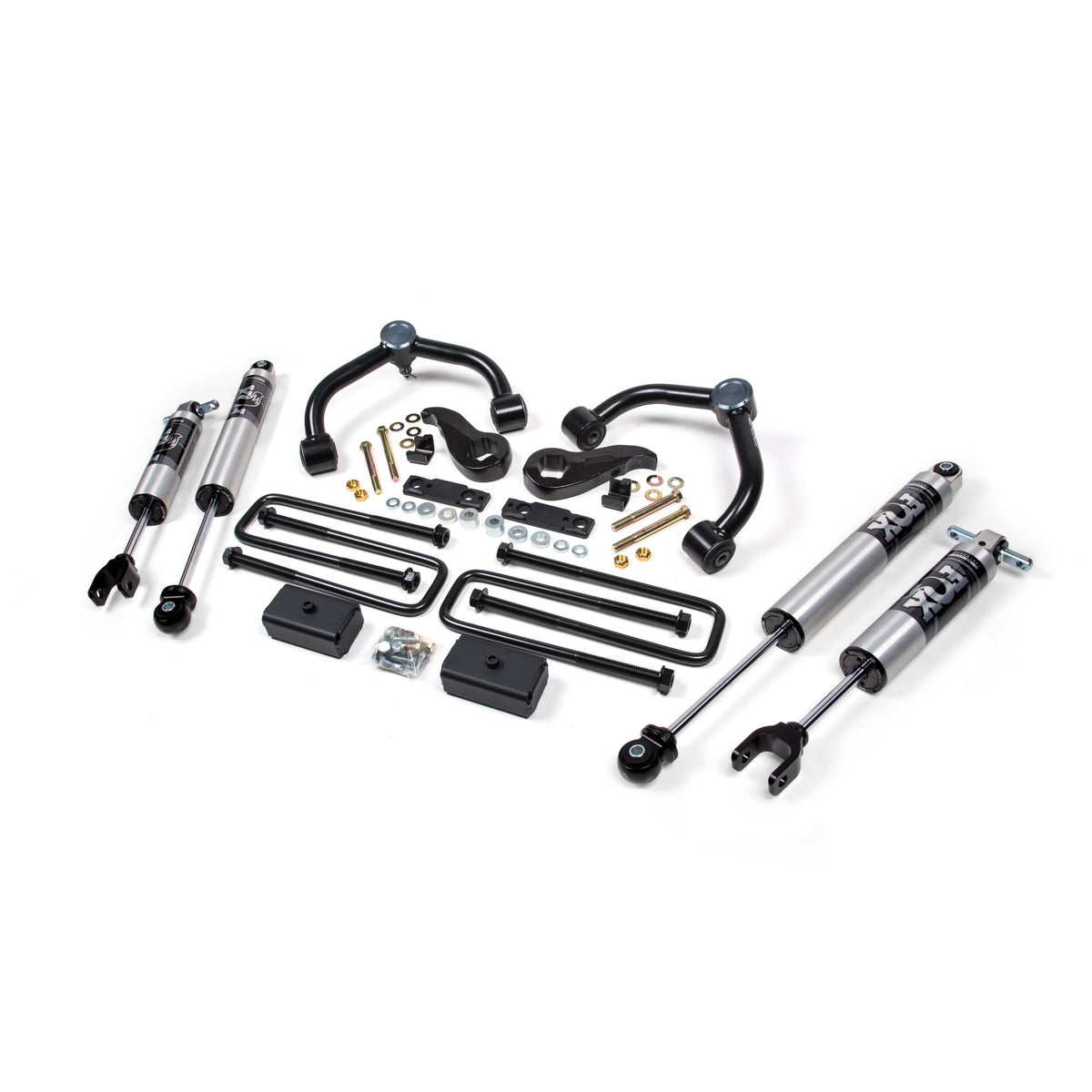

3" Lift Kit with Fox 2.5" Shocks suits CHEV/GMC 2500/3500 (2020+) by BDS Suspension
Up the ante in your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD 4WD truck and improve the ride with this 3-inch lift kit featuring FOX 2.5 Performance Elite shocks from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.
Up front the lift kit includes FOX 2.5 Performance Elite reservoir shocks and heavy duty tubular upper control arms for increased strength. Along with the control arms a pair of indexed cast steel torsion bar keys are supplied upfront to lift the vehicle and a small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance. To eliminate sway bar interference a pair of sway bar relocation brackets is used which maintains proper operating angle.
In the rear a 2" block and u-bolt kit is used to create a level to slightly tail high stance when unloaded. Rounding out these kits are a pair of specially tuned FOX 2.5 Performance Elite reservoir shocks ready to soak up the terrain.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms
Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Engineered to Perform
BDS suspension kits are purpose-built for strength, reliability, and a perfect fit. Each system includes everything you need to get your ute or truck sitting right, with no hidden extras.
Key Features:
- Lift heights from 2” to 8”
- Complete systems – nothing left out
- FOX shock upgrades available
- Designed to maintain factory ride comfort
- Lifetime No Fine Print Warranty
On-Road Comfort. Off-Road Capability.
From the bitumen to the bush, BDS delivers a smooth, controlled ride. Pair your kit with FOX shocks tuned for your vehicle, and you’ll have the confidence to tackle corrugations, ruts, and washouts with ease.
Highlights:
- Maintains driveline geometry
- Built for towing and heavy loads
- Designed and tested for tough Aussie conditions
Built Tough. Backed for Life.
Every BDS kit is finished with a premium powder coat for corrosion resistance and backed by a lifetime warranty. Break it, bend it, or crack it – BDS will replace it—no fine print. No worries.
Brand Promise:
- Lifetime warranty, no questions asked
- Trusted by off-roaders worldwide
- Backed by expert local support
Why Choose BDS Suspension?
BDS isn’t just another lift kit – it’s peace of mind. With precision engineering, heavy-duty components, and unbeatable after-sales support, you’re not just buying a kit, you’re investing in every trip your rig takes.
Quick Points:
- Proven performance in Aussie conditions
- Designed to work seamlessly with late-model 4WDs and utes
- Backed by one of the strongest warranties in the industry
Adventure Starts Here
Whether you’re towing the caravan, hauling gear for work, or hitting the tracks on the weekend, BDS Suspension gives your rig the clearance, stance, and strength it needs to handle anything Australia throws at it.
FREQUENTLY ASKED QUESTIONS
Yes. Lift kits must meet Australian vehicle standards. Check our GVM Upgrade page for the list of lift kits we can make compliant pre- and post-registration.
Generally, no. Under Australian Consumer Law, your warranty can only be denied if the lift kit directly causes a failure.
Refer to the wheels and tyres compatibility table above on the product page, which specifies the correct sizes for each BDS lift kit.
Contact us to be put in touch with a reputable installer, or check our Dealer Network for approved fitment specialists.
BDS provides a manufacturer warranty covering defects in materials and workmanship. Terms vary by product, so check the product page for details.
It depends on your vehicle. Check our GVM Upgrade page for the list of lift kits that can be made compliant pre- and post-registration.
Yes. All BDS lift kits are FMVSS compliant and have passed Electronic Stability Control (ESC) tests.
Short answer: No. Strut and coil spacers are not legal for compliance in Australia.
Installation requires specialised tools and expertise. While experienced DIYers can attempt it, professional installation is highly recommended to ensure safety and compliance.
Yes. A lift kit changes the vehicle’s centre of gravity and suspension geometry. BDS kits are engineered to maintain safe handling, but correct installation and setup are essential.
Not usually. Most BDS kits include upgraded shocks designed to match the lift, ensuring proper ride quality, handling, and compliance.
BDS lift kits are designed to maintain towing and payload capacity, but check the vehicle-specific kit and consider any additional suspension or GVM upgrades.
America’s Garage adapts BDS kits for Australian conditions, removing spacers and supplementing with coils and shocks to meet legal compliance and provide optimal performance.
Other unrelated components remain under warranty. Only parts directly affected by the lift installation could potentially be questioned in a warranty claim.
