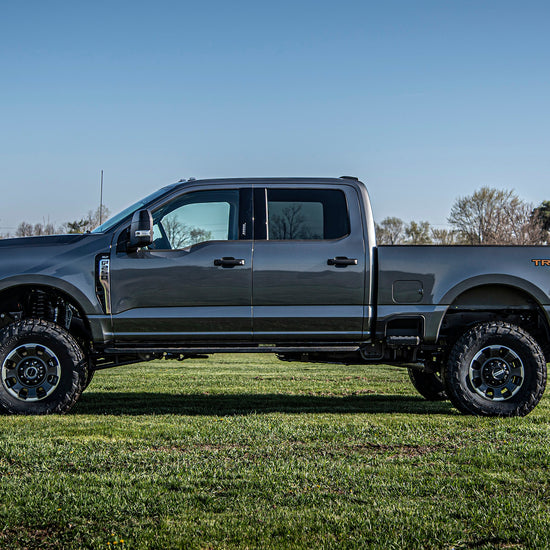

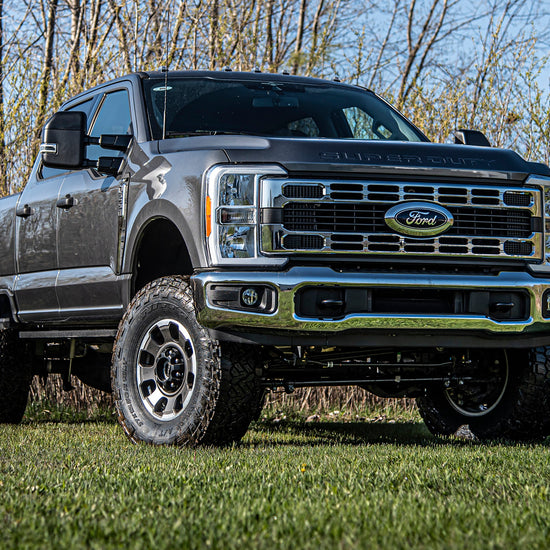

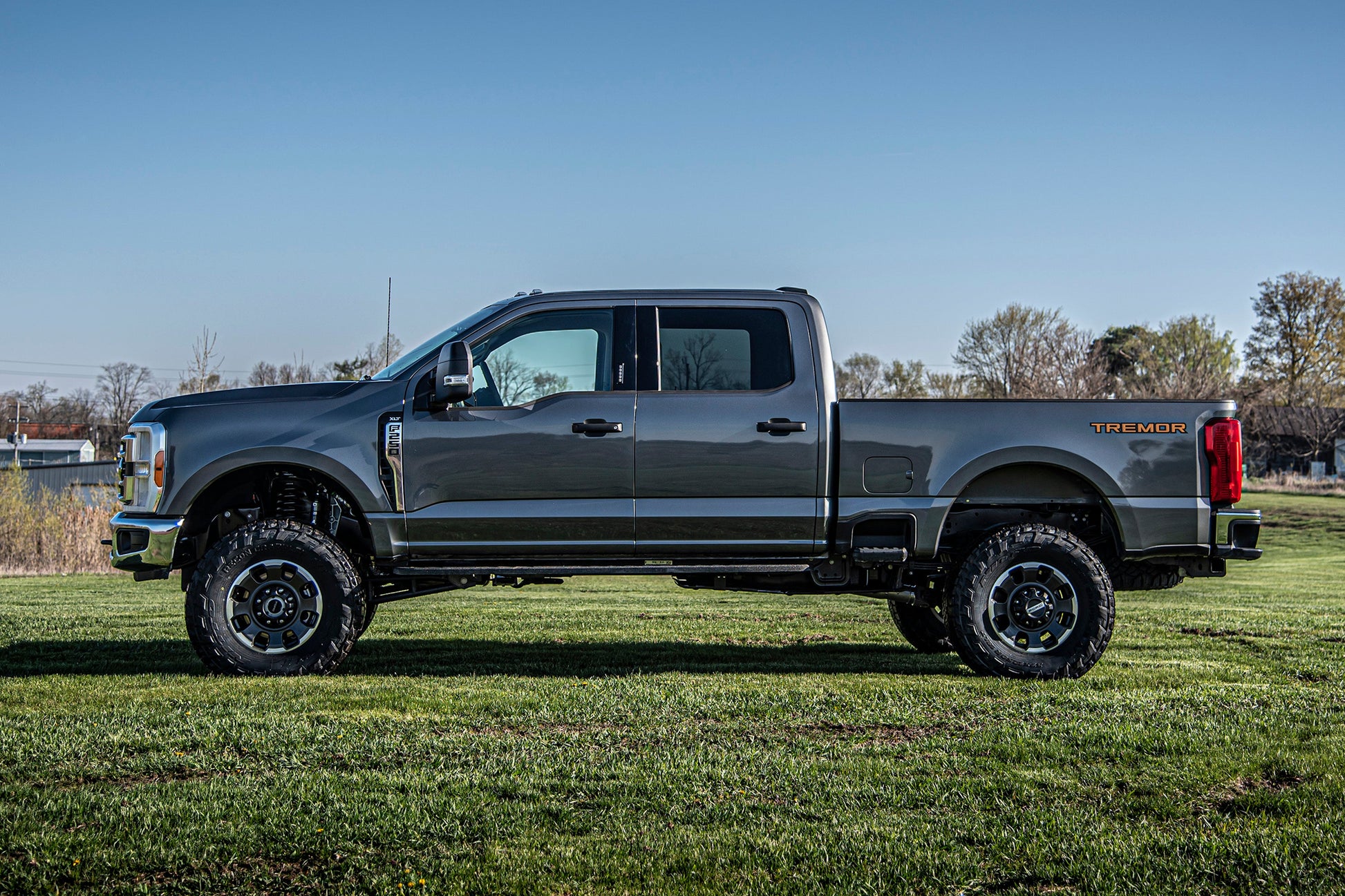

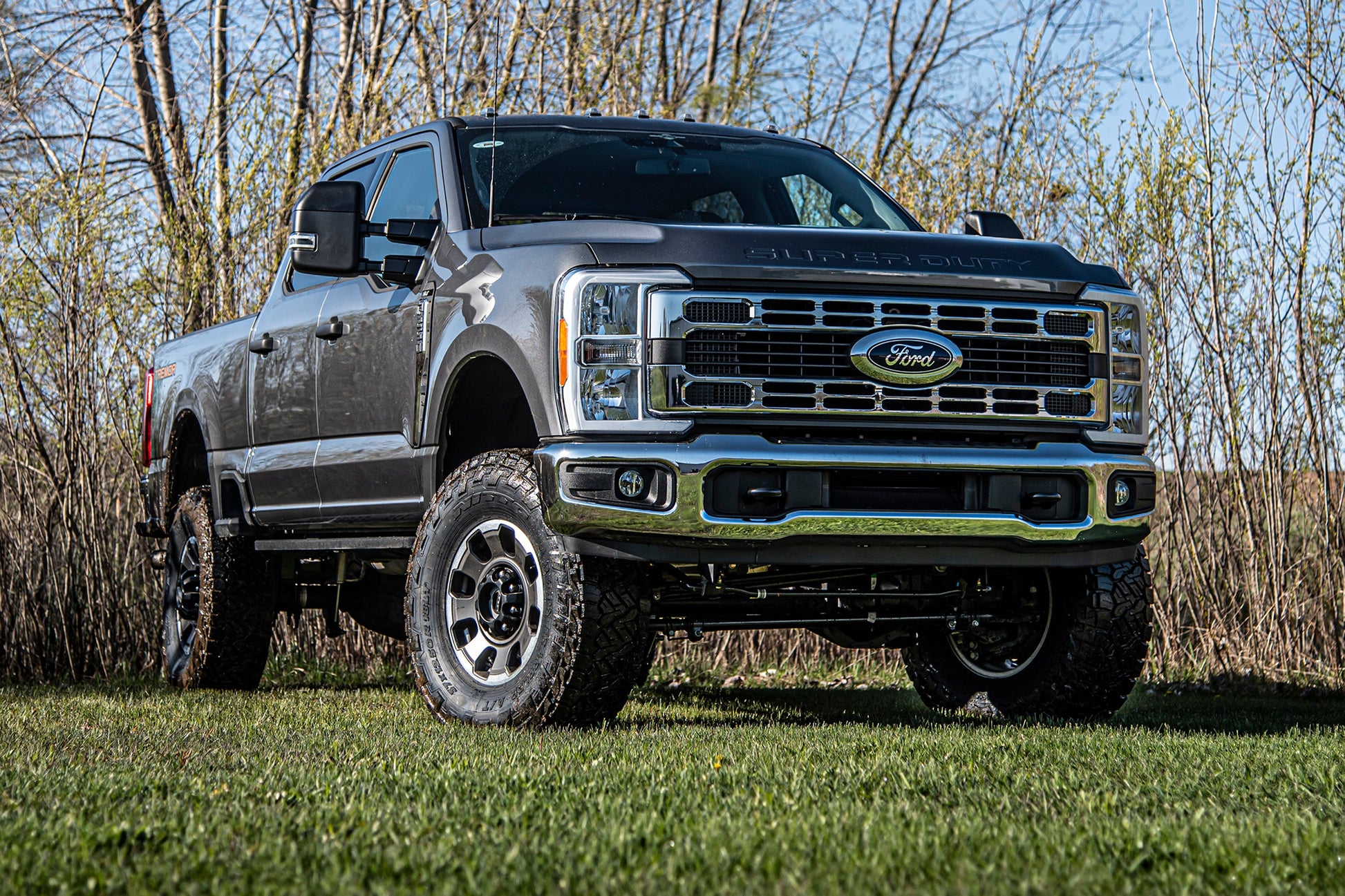

5" Lift Kit with Fox 2.5" PE DSC Coilover Shocks suits Ford F-250 Super Duty/F-350 Super Duty (2023-2025) by BDS Suspension

• Front Lift Method : Coil Spring
• Front Lift Height : 5"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Installation

• Install Guide 1
• Install Guide 2
• Install Guide 3
• Estimated time: 10 hours
• Difficulty: Very Difficult

Install Tools

• Drill / Bit Set
• Pitman Arm Puller
• Reciprocating Saw

Tyre & Wheel

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

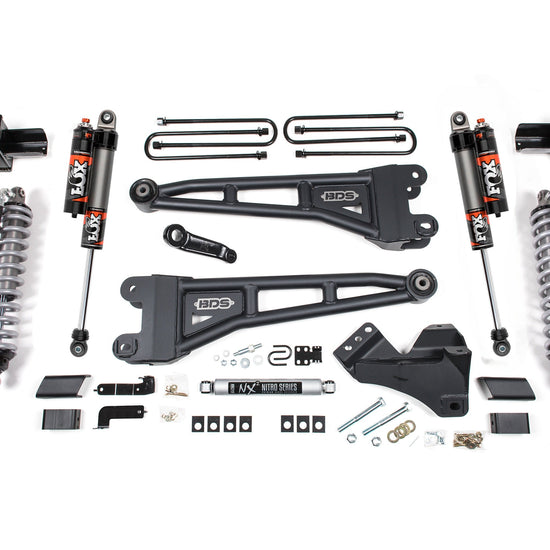

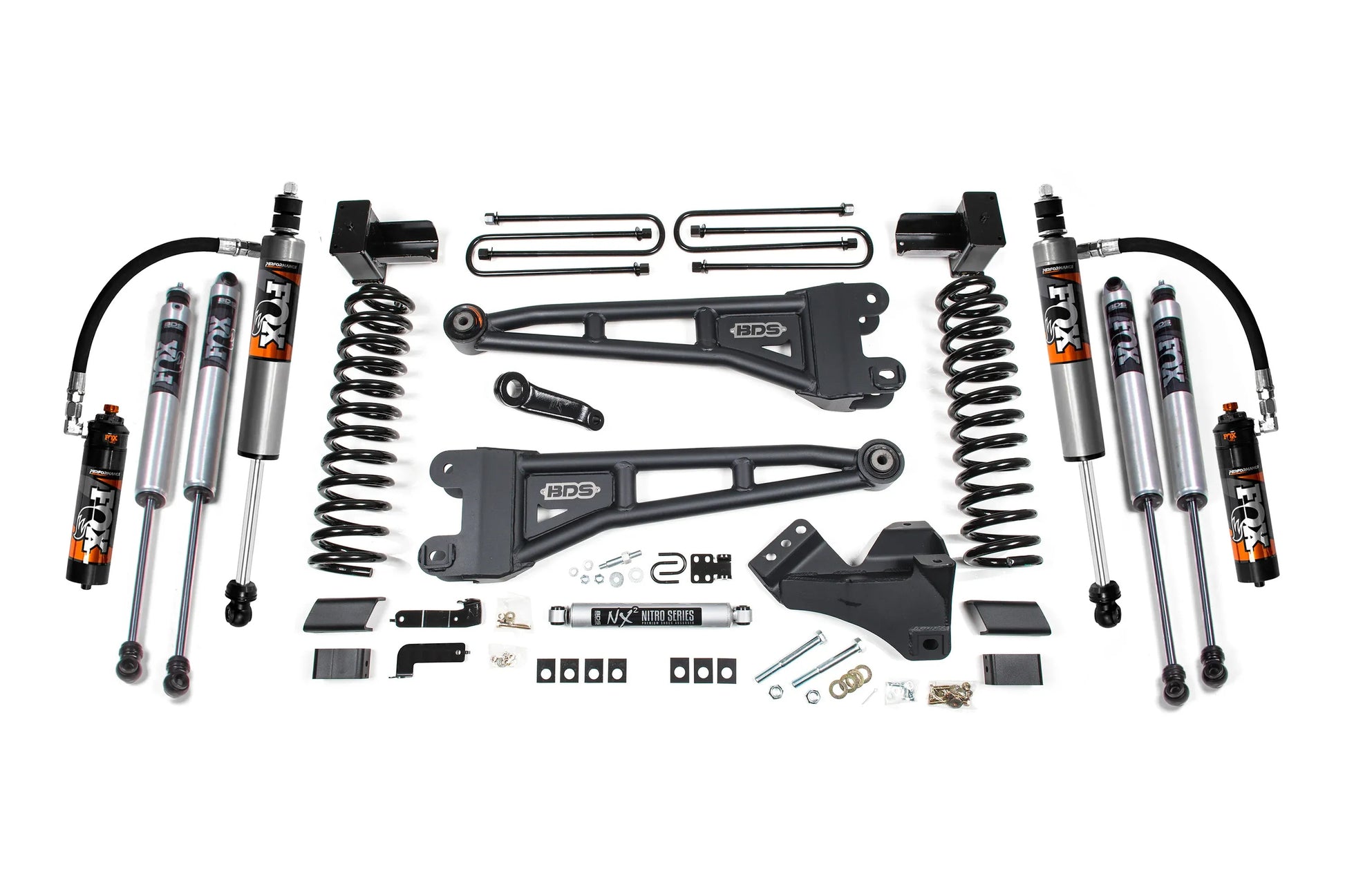

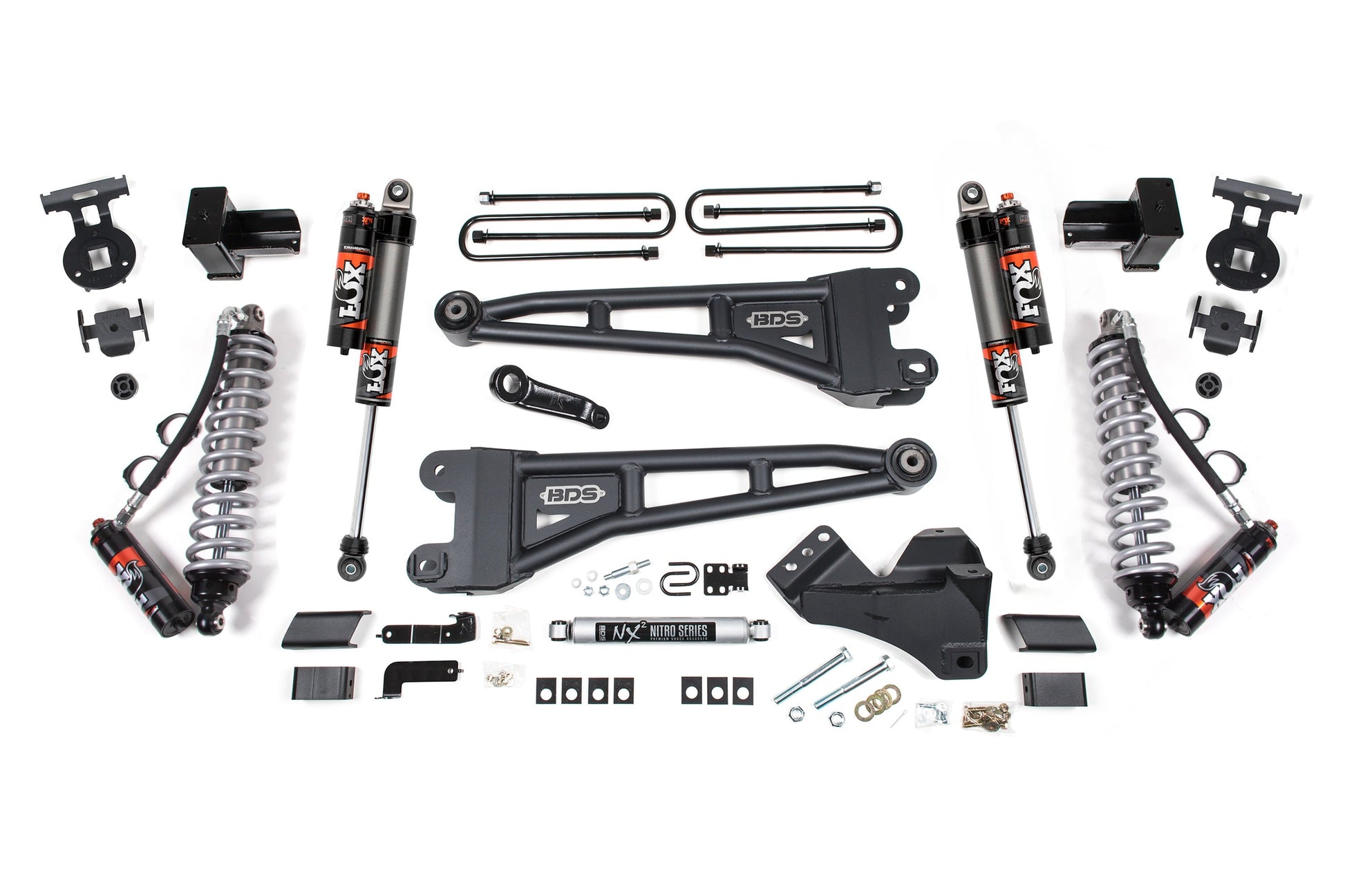

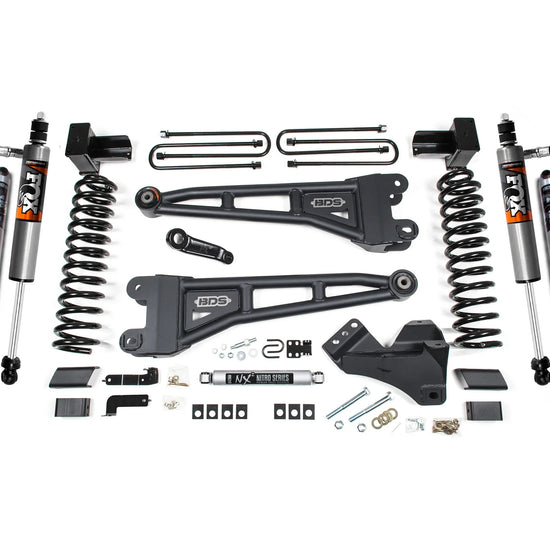

Kit Components

• BDS013414: BDS Suspension 2017-2022 Super Duty 4" Front Box Kit
• BDS013517: 2017-2024 F250 5" Rear Block Kit - 2 Leaf Main (W/O Overload Springs)
• BDS123263: Radius Arm Kit, Set of 2
• BDS123613: BDS Suspension 2017-2022 Ford F250/350 Coil-over Mount Kit
• 884-06-427 (FOX88406427): Fox 2005+ Ford F250/350 Front 2.5" Remote Reservoir Coilover Shocks, Performance Elite Series, DSC, 4" Lift, Set of 2
• 883-26-097 (FOX88326097): Front Fox Performance Elite Series 2.5" Remote Reservoir DSC Shocks, Suits 4-7" Lift, Set of 2
• 883-26-100 (FOX88326100): Rear Fox Performance Elite Series 2.5" Remote Reservoir DSC Shocks, Suits 4-6" Lift, Set of 2

• Single stabliser per BDS kit is not included
• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Trucks without top mounted overload springs will require (4) UBT4028.
• Vehicles with leaf spring ride height sensors must select the rear block option.
• F250/350 - Please note that all lift kits above 3" require custom parts to suit the Australian conversion. Please speak with your conversion company to confirm if you need the custom idler pulley / pitman arm / track bars.
