3" Lift Kit with OK 2.5" suits Ford F-250 Super Duty/F-350 Super Duty (2023+) by Outback Kitters & BDS Suspension

• Front Lift Method : Coil Spring
• Front Lift Height : 3
• Rear Lift Method : Block
• Rear Lift Height : 1"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Installation

• Estimated time: 5 hours
• Difficulty: Moderate

Install Tools

• 30mm Socket
• Pitman Arm Puller

Tyre & Wheel

• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

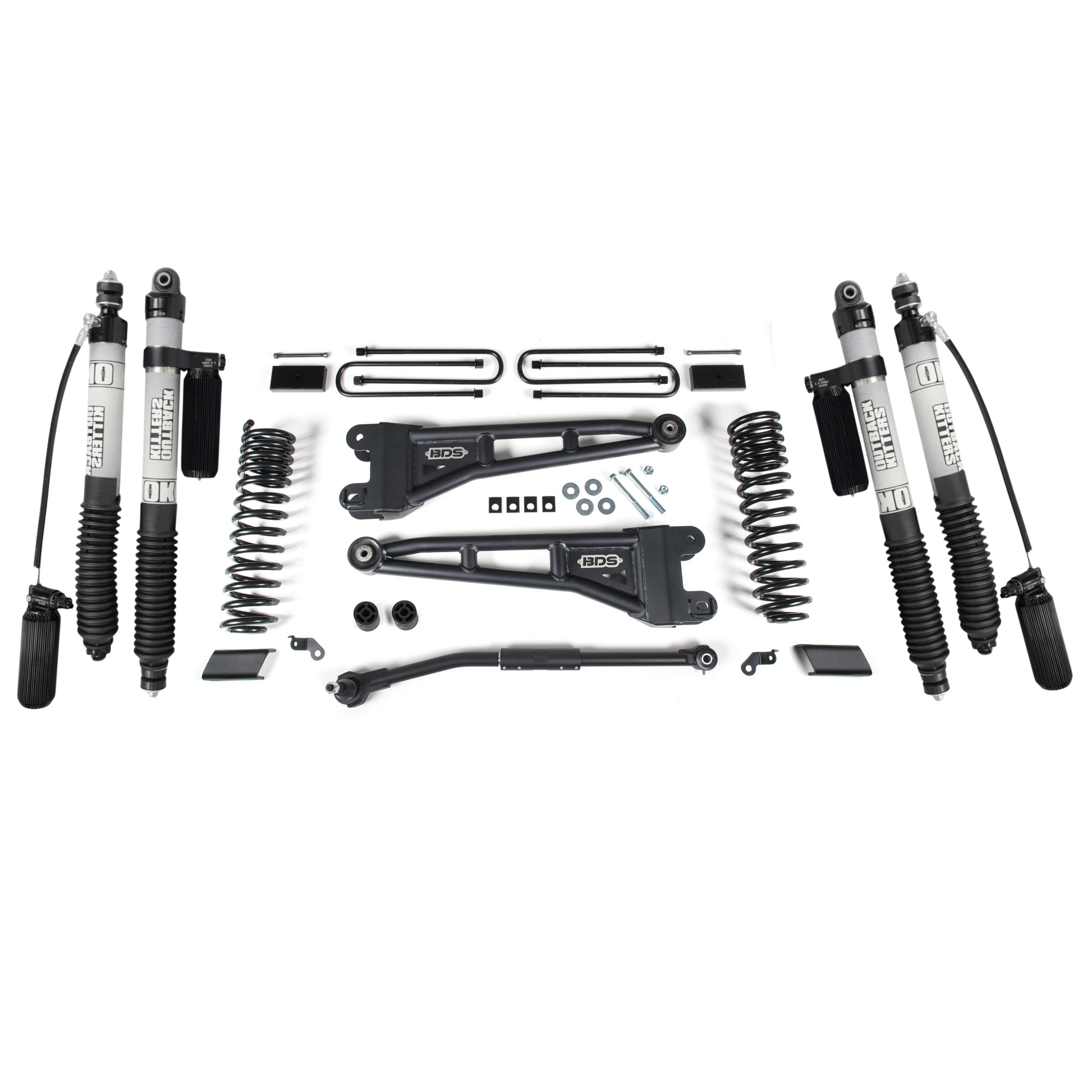

Kit Components

• BDS013108: 1" Rear Block Kit
• BDS013261: 2.5" Front Box Kit
• BDS033251: 2.5" (Diesel) Coils
• BDS123263: 2023 Ford F250/350 4wd Radius Arm Kit, Pair
• OKSUFD203F: Front 2.5" Remote Reservoir Front Shock, Compression Adjuster, to suit 3" Lift, Single
• OKSUFD202R: Rear 2.5" Remote Reservoir Rear Shock, Compression Adjuster, to suit 2" Lift, Single

• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
• F250/350 - Please note that all lift kits above 3" require custom parts to suit the Australian conversion. Please speak with your conversion company to confirm if you need the custom idler pulley / pitman arm / track bars.
