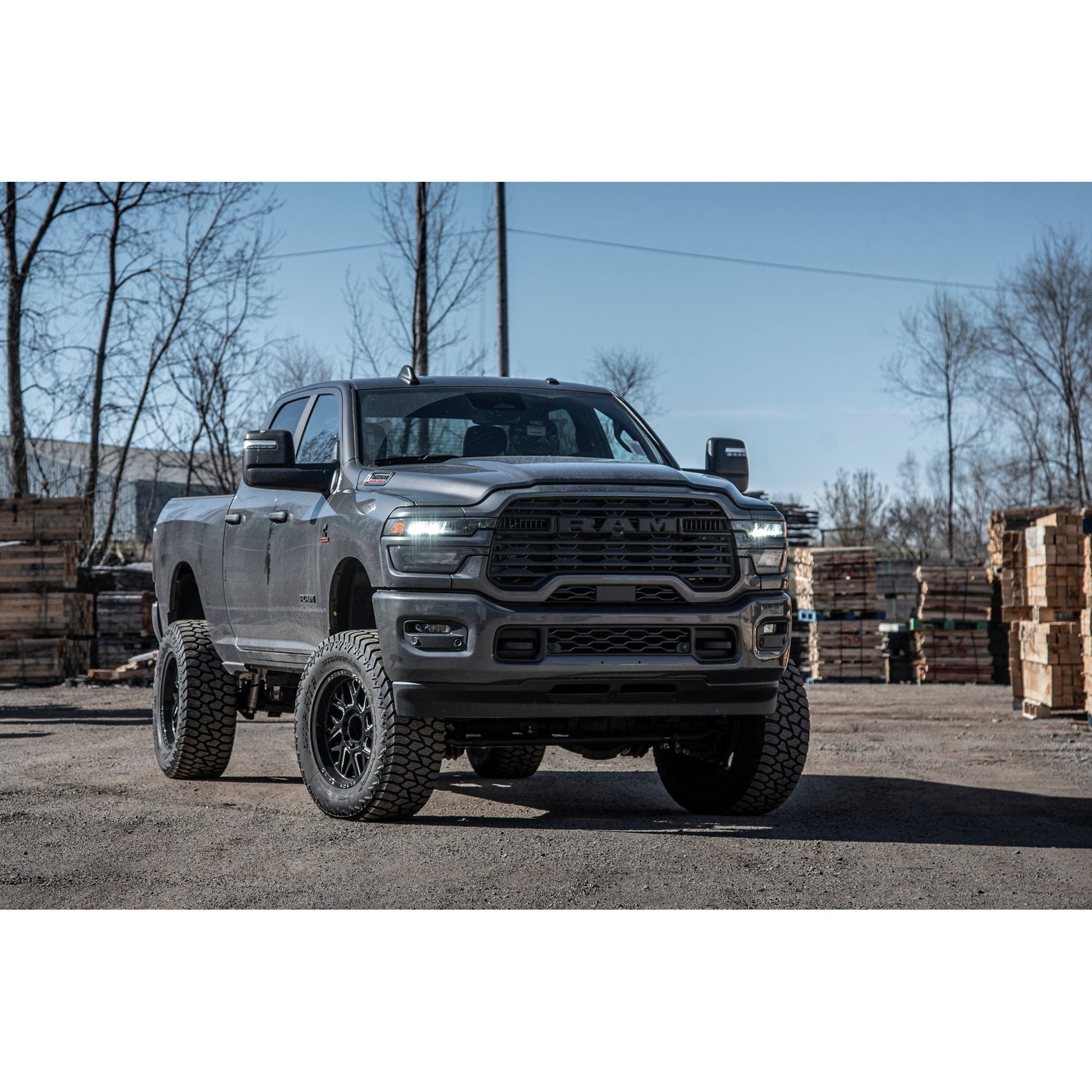

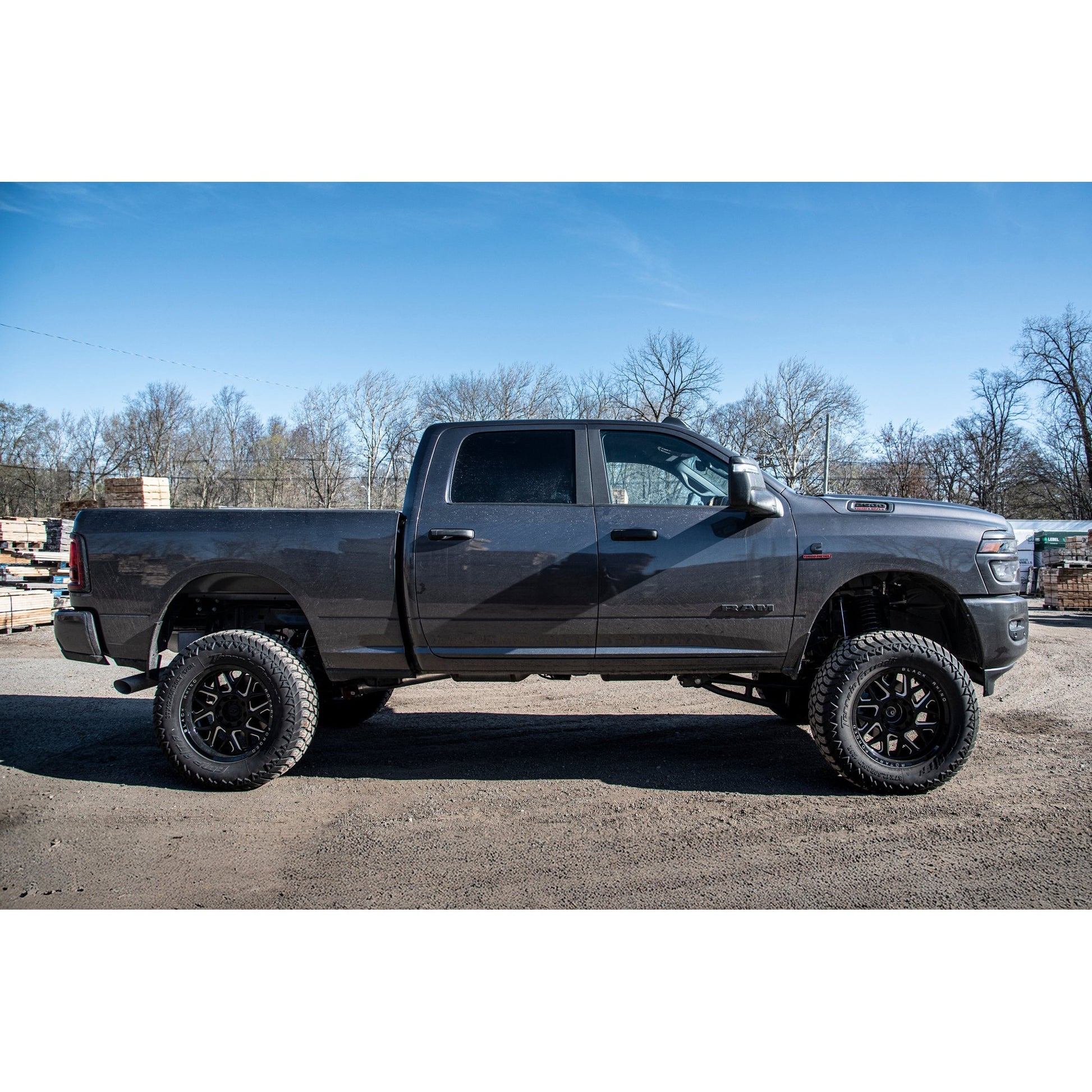

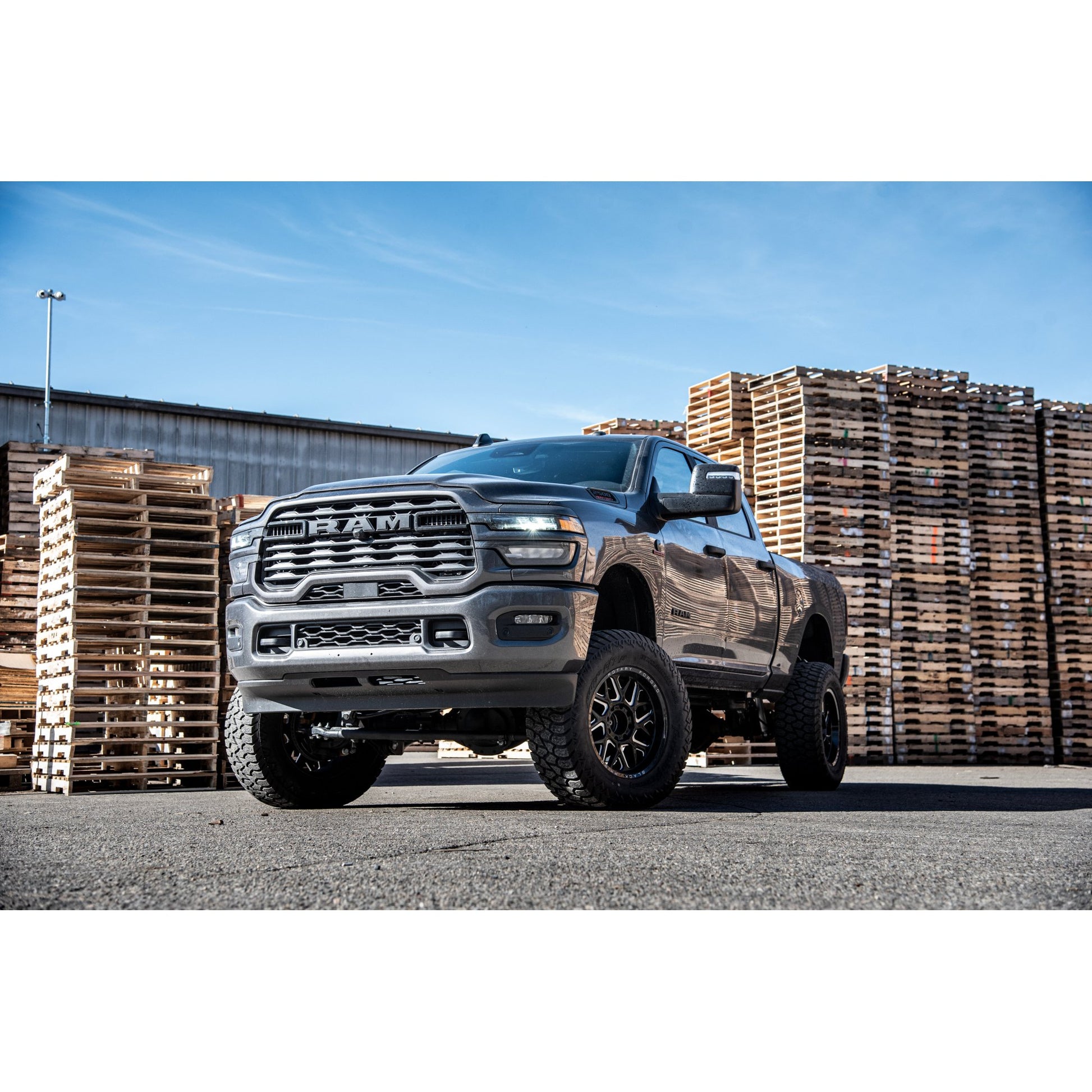

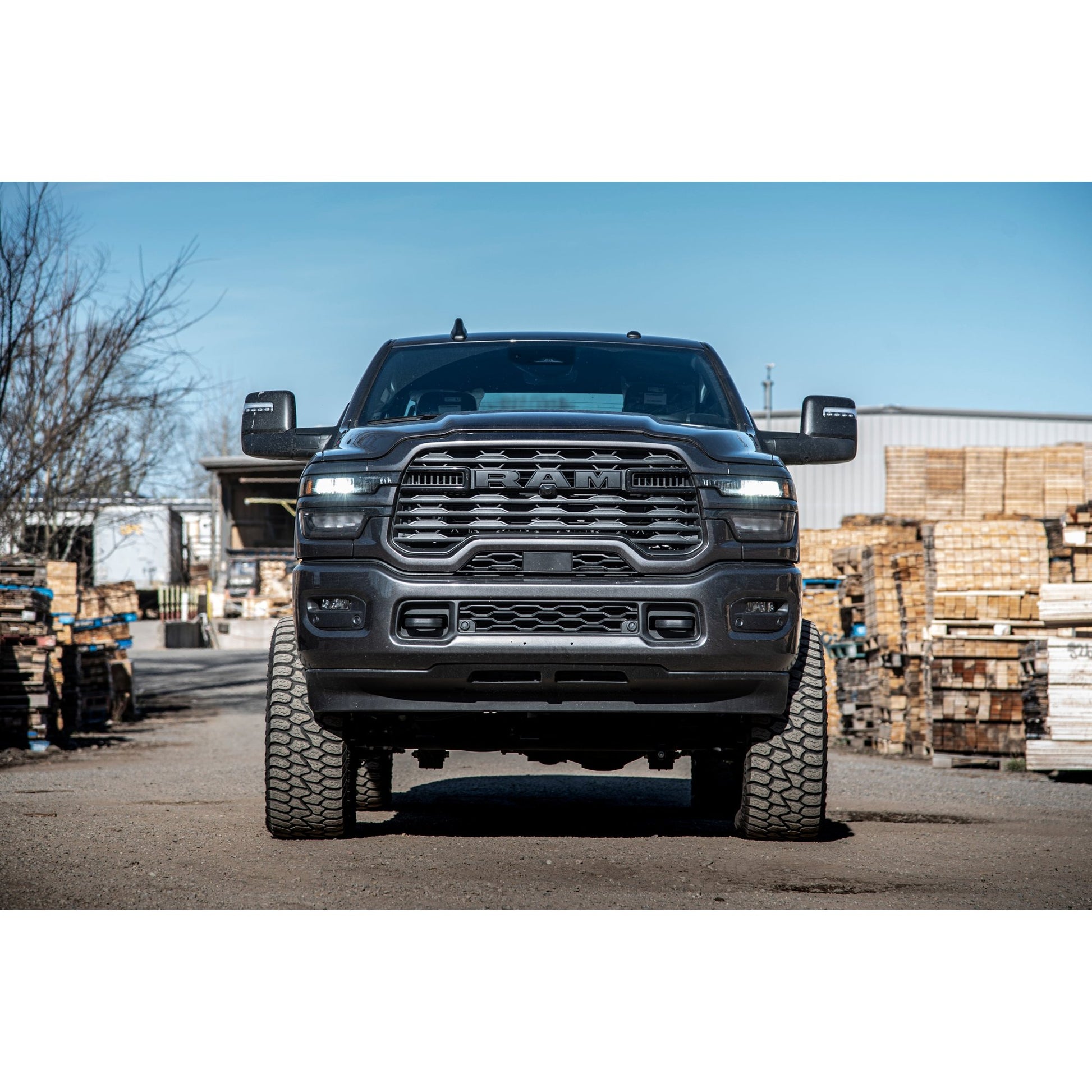

6" Lift Kit with OK 2.5" Shocks suits Ram 2500 (25) by BDS Suspension

• Front Lift Method : Coil Spring
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 4.5"
• Shocks Included : Yes

Installation

• Install Guide 1
• Install Guide 2
• Estimated time: 7 hours
• Difficulty: Moderate

Install Tools

• Basic Hand Tools

Tyre & Wheel

• 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
• 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

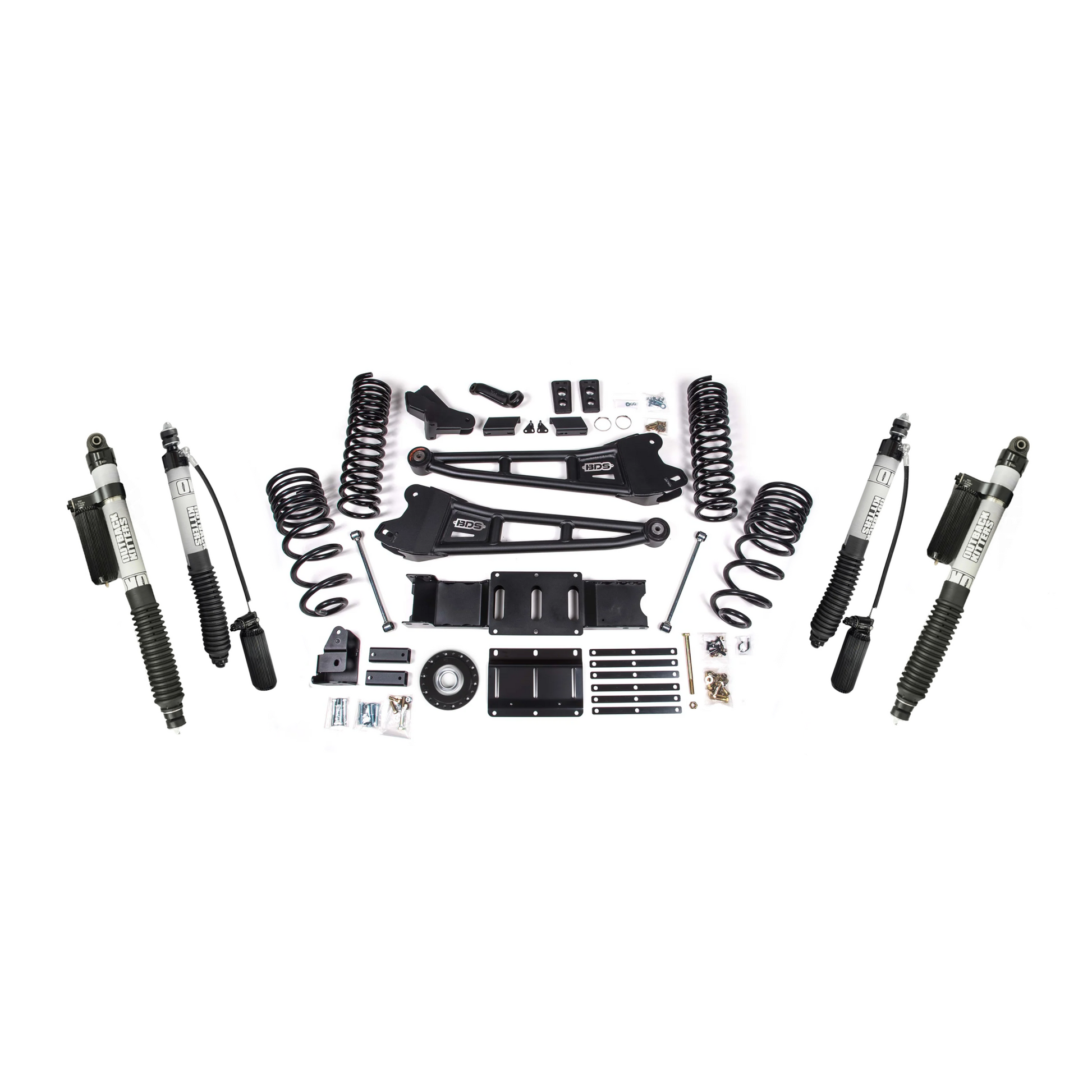

Kit Components

• BDS012459: BDS Suspension 2019+ Ram 2500 4.5" Rear Coil Box Kit
• BDS012614: 6" Radius Arm Front Box Kit
• BDS032602: 6" Front Coils, Set of 2
• BDS122321: Radius Arms, Set of 2
• BDS122627: Transfer Case Indexing Ring Diesel
• OKSURA206F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, Suits 6" Lift, Single
• OKSURA206R: Rear 6" Remote Reservoir 2.5" Rear Shock, Compression Adjuster, Suits 6" Lift, Single

• Fits Diesel models only
• Special literature required: OE Service Manual for model/yearof vehicle. Refer to manual for proper disassembly/reassemblyprocedures of OE and related components.
• Adhere to recommendations when replacement fasteners, retainersand keepers are called out in the OE manual.
• Larger rim and tire combinations may increase leverage onsuspension, steering, and related components. When selectingcombinations larger than OE, consider the additional stress you couldbe inducing on the OE and related components.
• Post suspension system vehicles may experience drive line vibrations.Angles may require tuning, slider on shaft may require replacement,shafts may need to be lengthened or trued, and U-joints may need tobe replaced.
• Secure and properly block vehicle prior to installation of BDSSuspension components. Always wear safety glasses when usingpower tools.
• If installation is to be performed without a hoist, BDS Suspension Co.recommends rear alterations first.
• Due to payload options and initial ride height variances, the amountof lift is a base figure. Final ride height dimensions may vary in accordance to original vehicle attitude. Always measure the attitudeprior to beginning installation.
• If selecting Coil-Over option, welding equipment is required for the Coil-over conversion.
