4" Air Ride Lift Kit with Fox 2.0 Rear Shocks suits Ram 1500 DT (2025) by BDS Suspension

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 4"
• Rear Lift Method : Spacer
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Installation

• Install Guide 1
• Install Guide 2
• Install Guide 3
• Estimated time: 10 hours
• Difficulty: Difficult

Install Tools

35mm Axle Nut Socket

Tyre & Wheel

• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

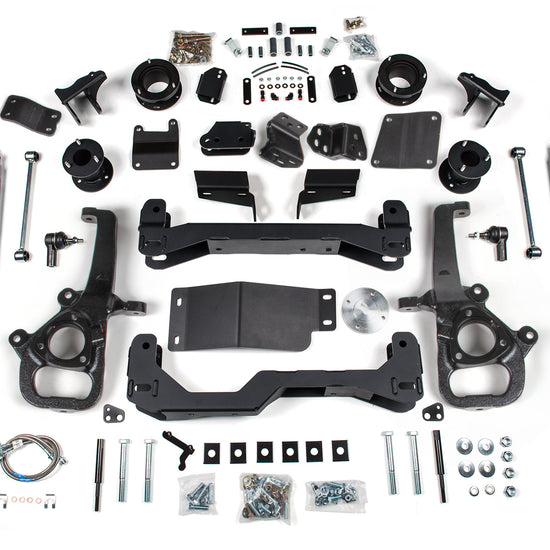

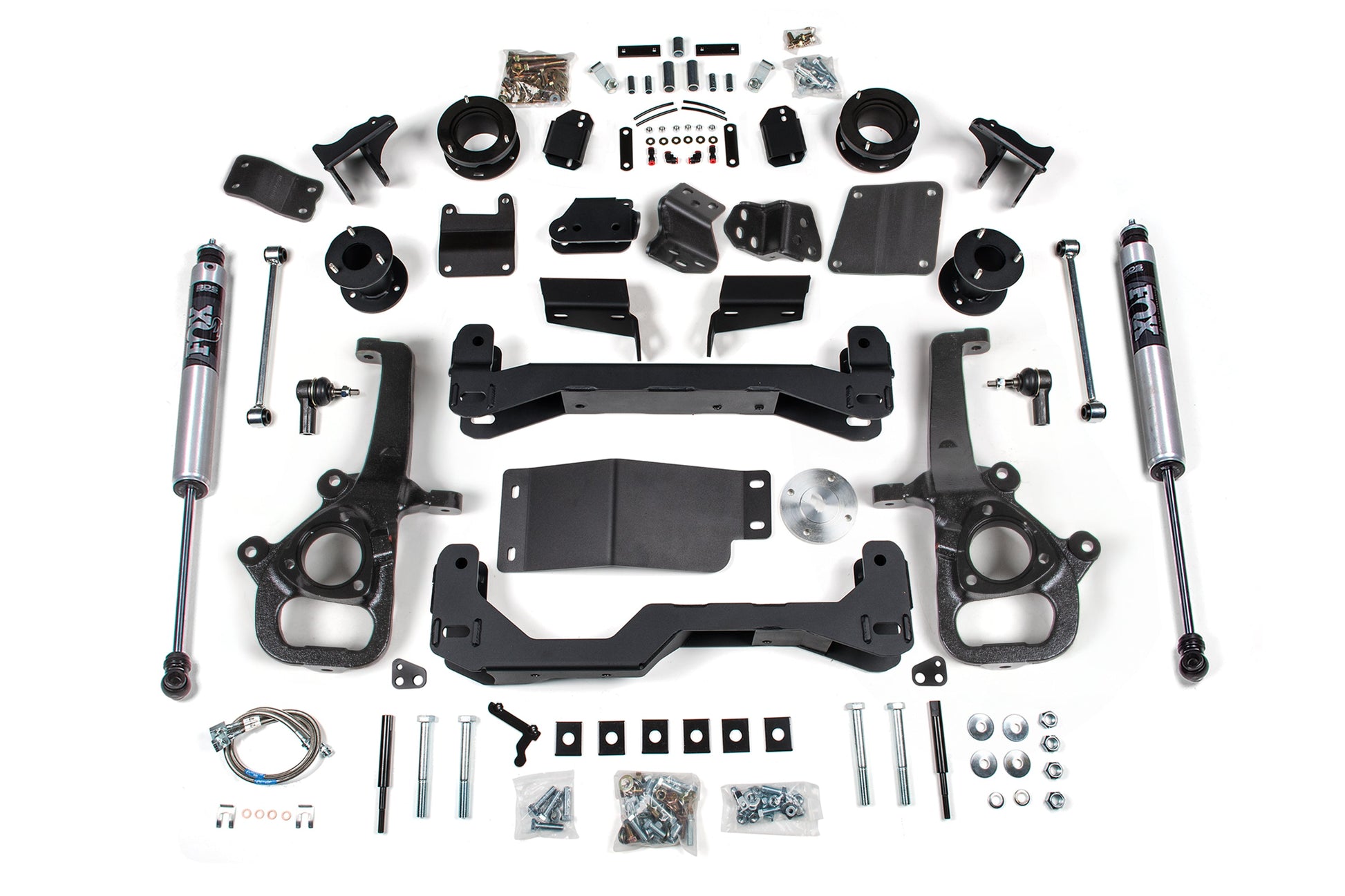

Kit Components

• BDS022307: Air Ride Rear Box Kit
• BDS022308: Air Ride Box Kit
• BDS022642: BDS Suspension 2019+ Ram 1500 DT Front Box Kit 1 of 2
• BDS022644: Front Box Kit (2 of 2)
• BDS022660: BDS Suspension 2025+ RAM 1500 Knuckle Box Kit - DRV/LHS
• BDS022661: BDS Suspension 2025+ RAM 1500 Knuckle Box Kit | PASS/RHS
• 982-24-806 (FOX98224806): Fox 2.0 Ifp Rear Shock - 4 Inch Lift - Performance Series - Ram 1500 Rebel (19-21) 4Wd With Air-Ride

• Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines.
• Extreme care/caution must be taken to follow the steps of these instructions to prevent any air leaks or damage to the bags during installation.
• The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions will require the system to be recharged (this can be done at any RAM dealer service department). A scan tool is needed to access the air control module to perform the service.
• Frame bracket modification is required.
• Fits 4WD models equipped with factory air ride only.
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20"+ wheels can be reinstalled with factory-size tires.
• Trucks equipped with factory 22" wheels must use the large bore steering knuckles.
• Does NOT fit Diesel Models.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines mounted.
• IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE
• Included Replacement front brake lines (22545) do not work on 2025 model year trucks, relocation bracket is used instead. See instructions for bracket details
