4" Lift Kit with Fox 2.5", Factory Large Bore, 22") suits Ram 1500 DT (2025) by BDS Suspension

• Front Lift Method : Coil-Over
• Front Lift Height : 4"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Installation

• Estimated time: 10 hours
• Difficulty: Moderate

Install Tools

Reciprocating Saw

Tyre & Wheel

• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and in. Backspace

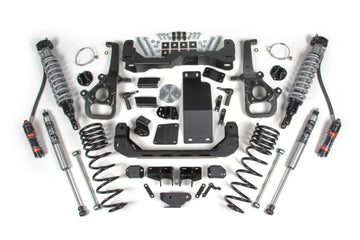

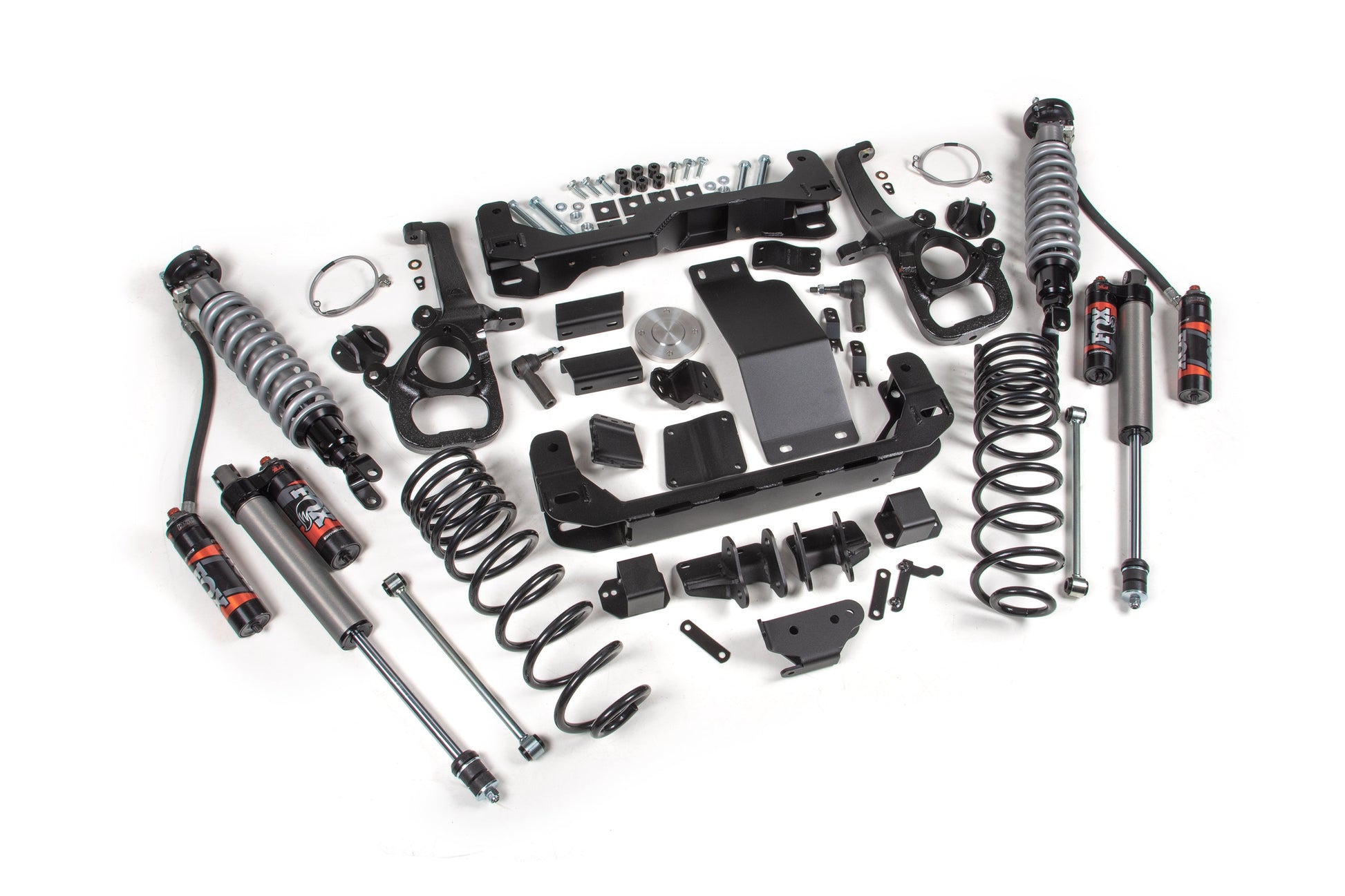

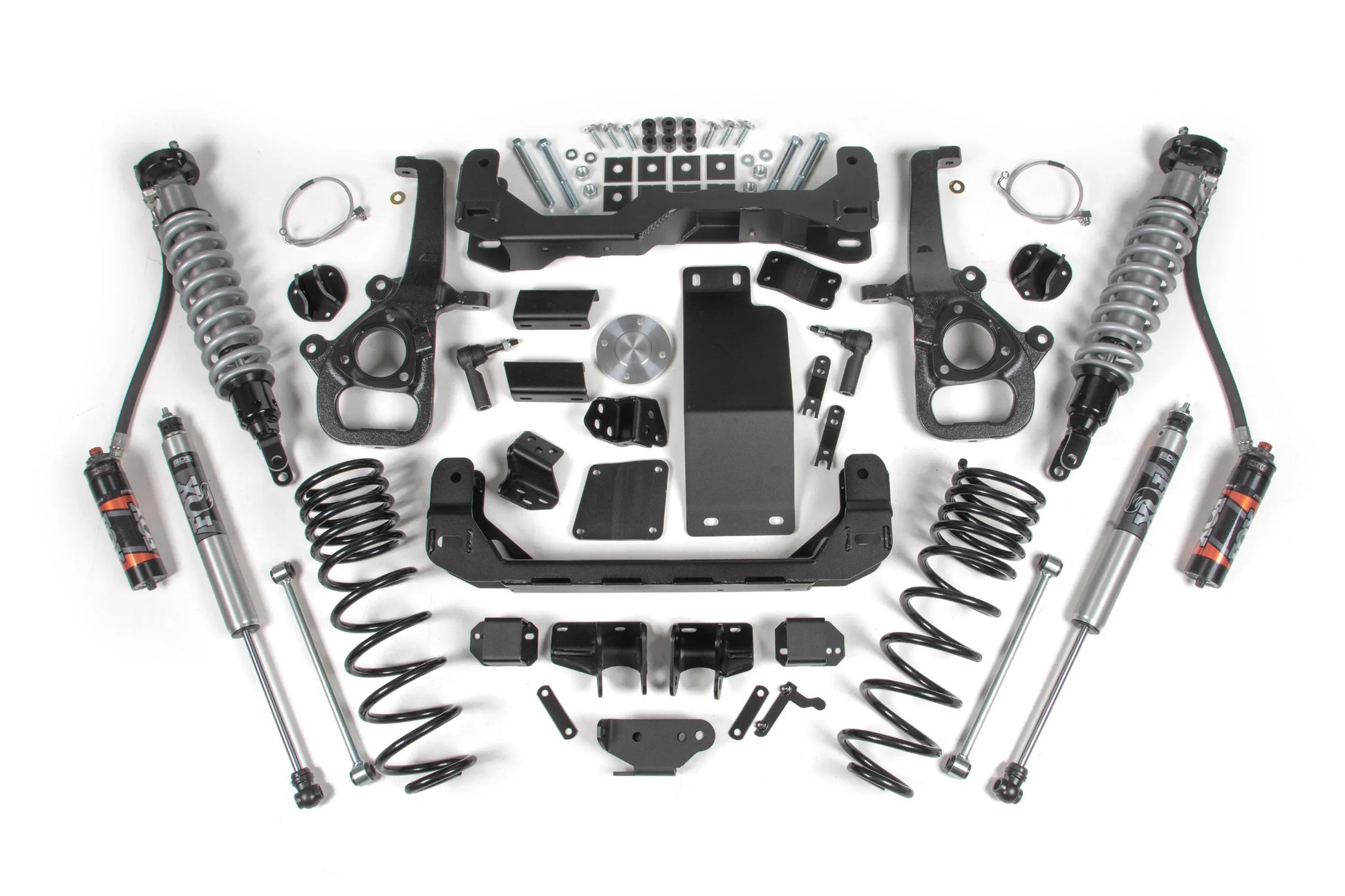

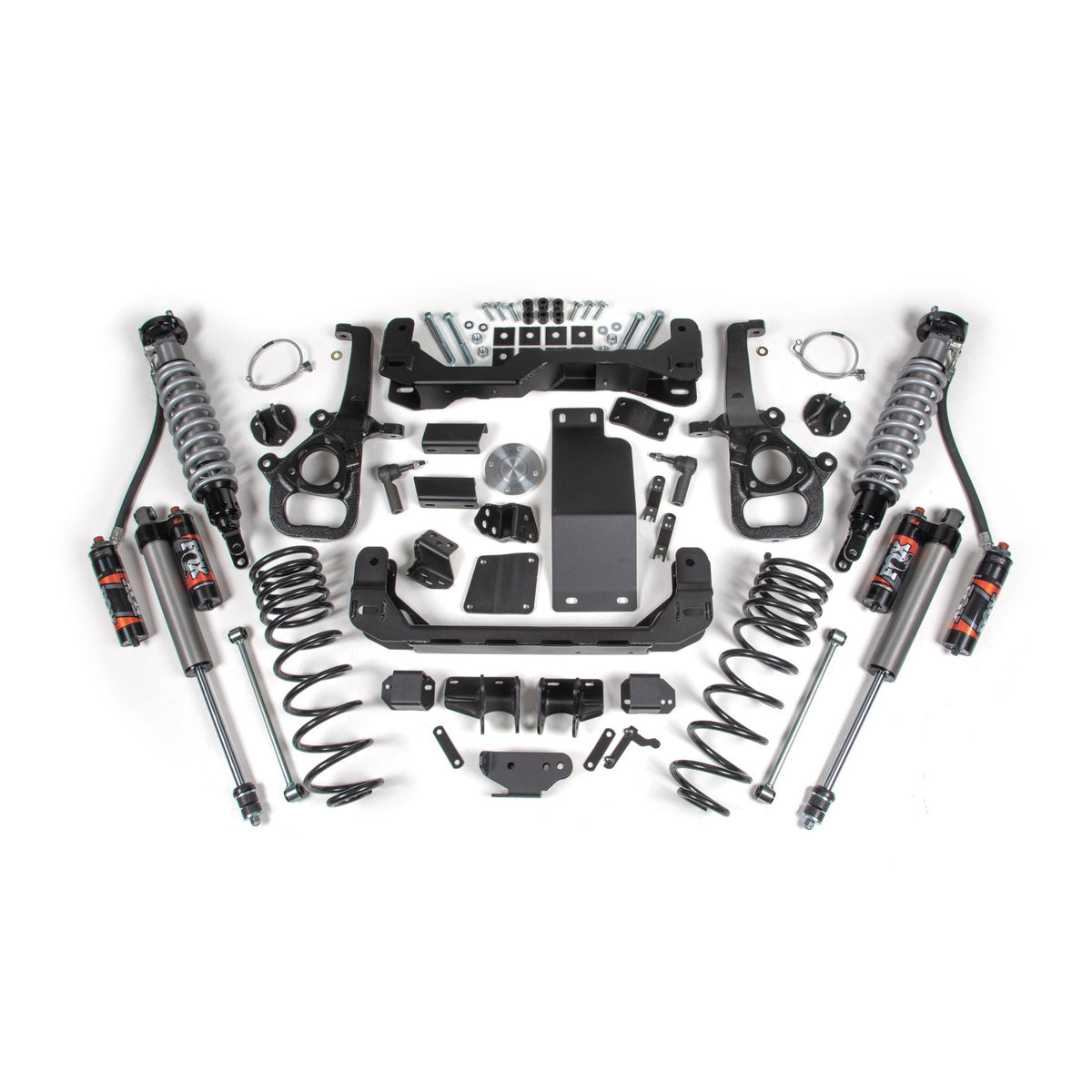

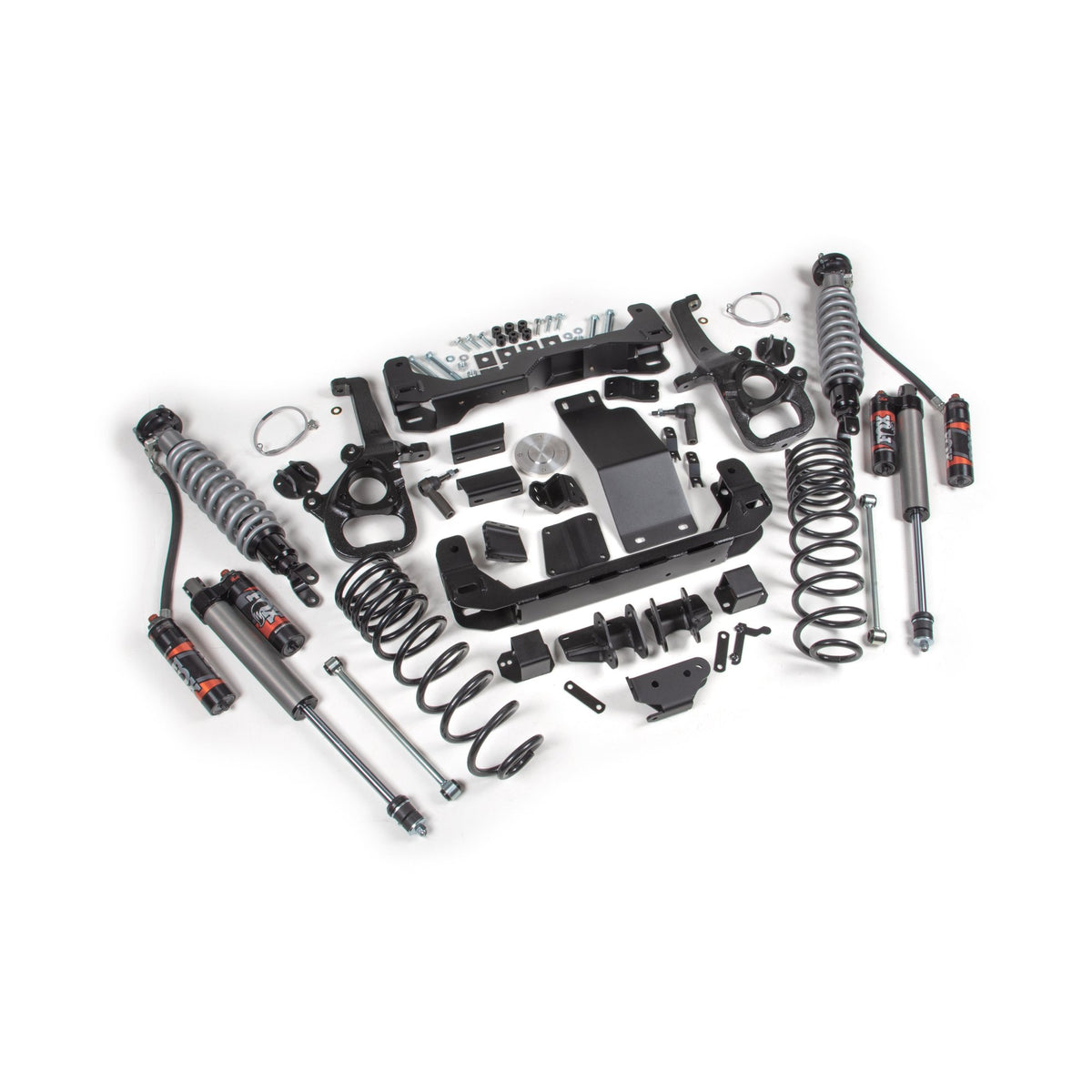

Kit Components

• BDS022508: BDS Suspension 2019+ Ram 1500 DT Rear Box Kit for 4-6" Lift
• BDS022642: BDS Suspension 2019+ Ram 1500 DT Front Box Kit 1 of 2
• BDS022644: Front Box Kit (2 of 2)

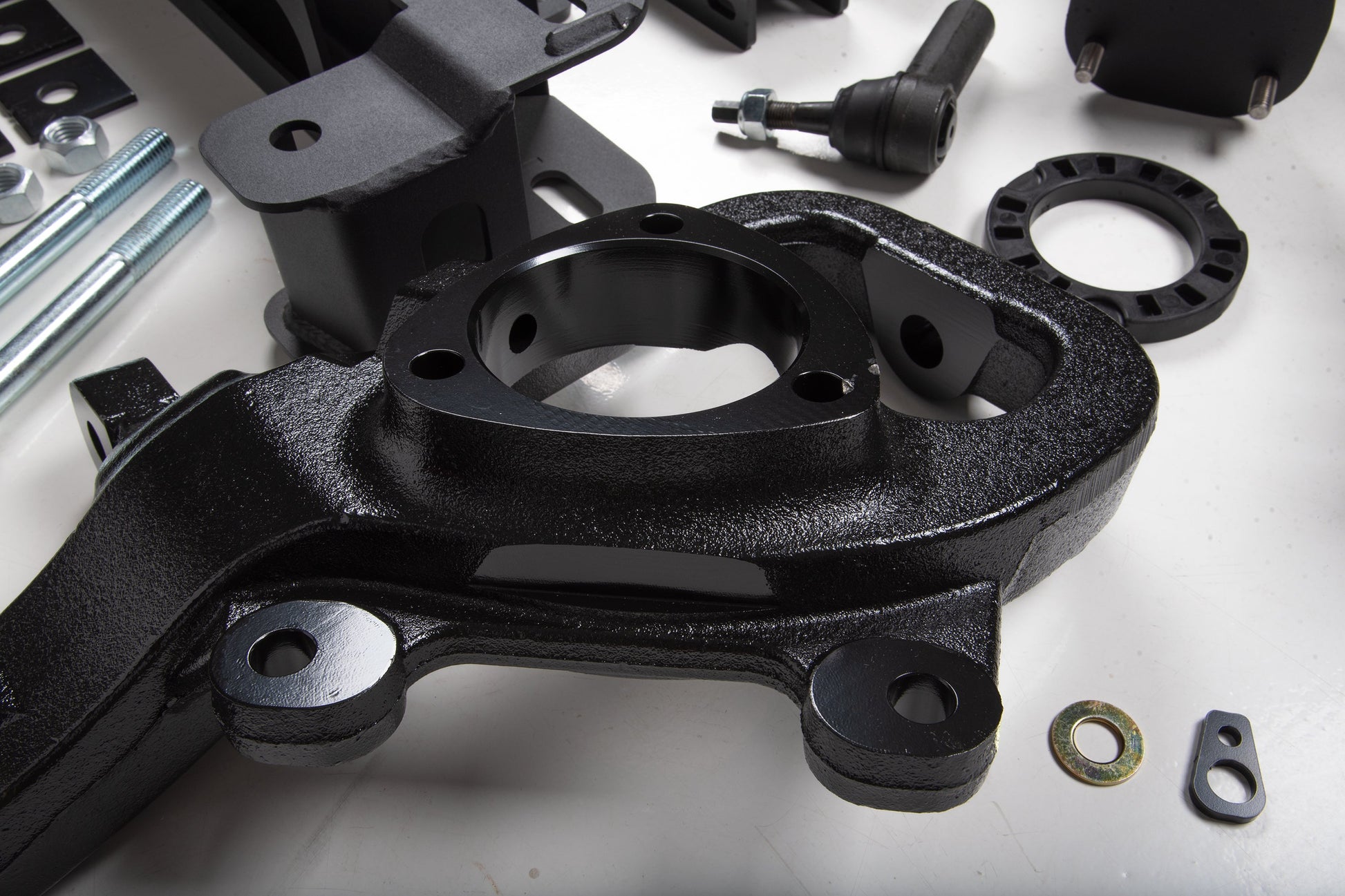

• BDS022662: Knuckle Box Kit - Large Bore - DRV / LHS
• BDS022663: Knuckle Box Kit - Large Bore - PASS / RHS

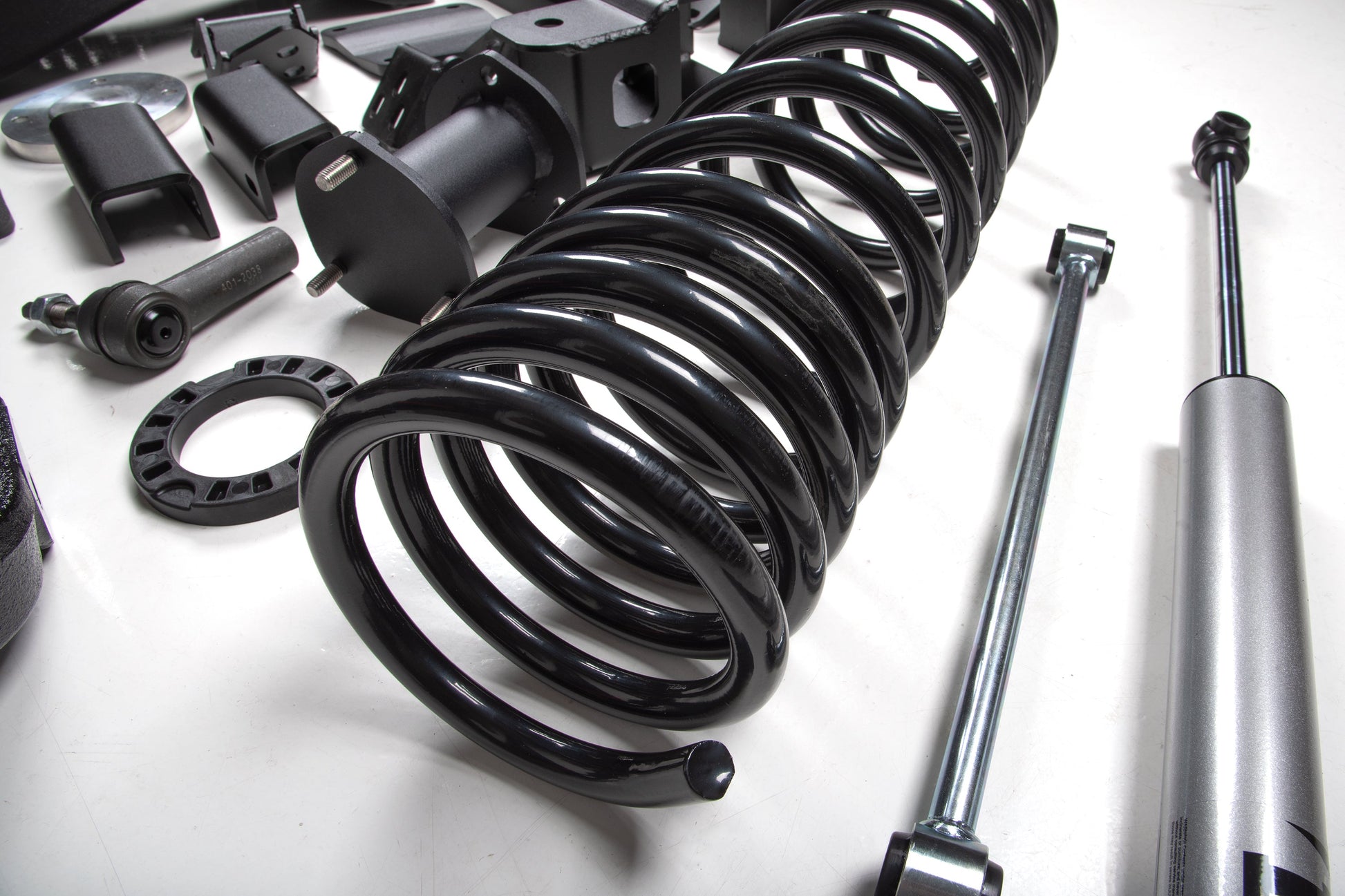

• BDS032308: BDS Suspension 2019+ Ram 1500 DT 3" Rear Coil Box Kit
• 884-06-383 (FOX88406383): Fox 2019+ Ram 1500 DT Front Coilover 2.5" Remote Reservoir Shocks, Performance Elite Series, DSC, 4" Lift, Includes Coils, Set of 2
• 884-26-028 (FOX88426028): Fox 2019+ Ram 1500 DT Rear 2.5" Remote Reservoir Shocks, Performance Elite Series, 4-6" Lift, Set of 2

• Fits 4WD models only.
• Fits models with 3.0L Hurricane I6 engines and models with 3.6L V6 engines.
• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
• Will NOT fit adjustable "air ride" suspension equipped models.
• Stock 18" wheels cannot be reinstalled due to steering interference.
• Stock 20s and 22s can be reinstalled with factory tire size.
• Will NOT work on diesel models.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines mounted as circled in image below.
• Disconnect BOTH batteries (if equipped), Main and Auxilary before performing install, more detail in instructions.
• Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
• IF USING 18IN AFTERMARKET WHEELS WITH 4.5IN BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE
