2" Levelling Kit with Fox 2.0" IFP Coilover suits Ford F-150 (21-25) by BDS Suspension

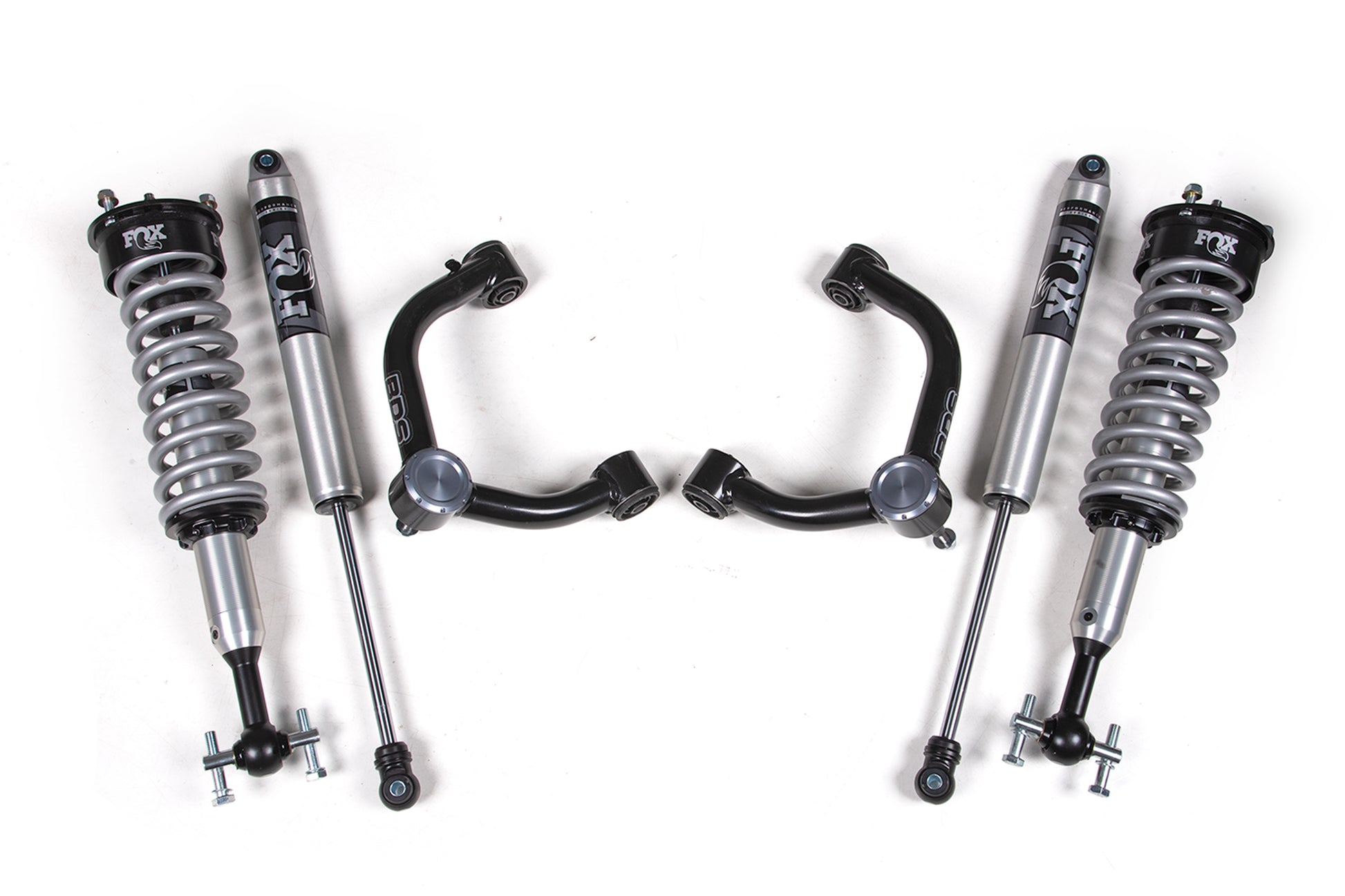

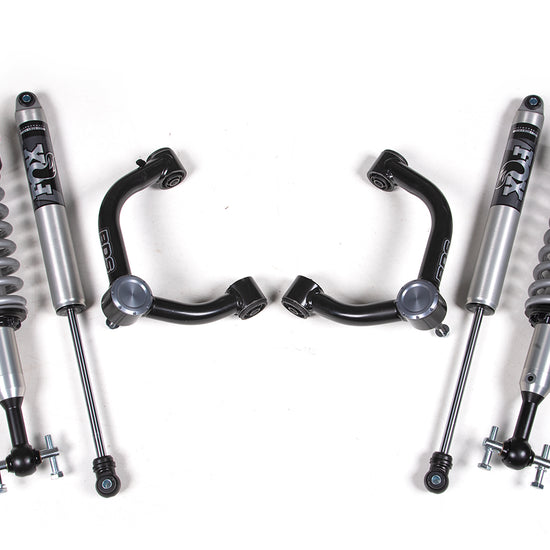

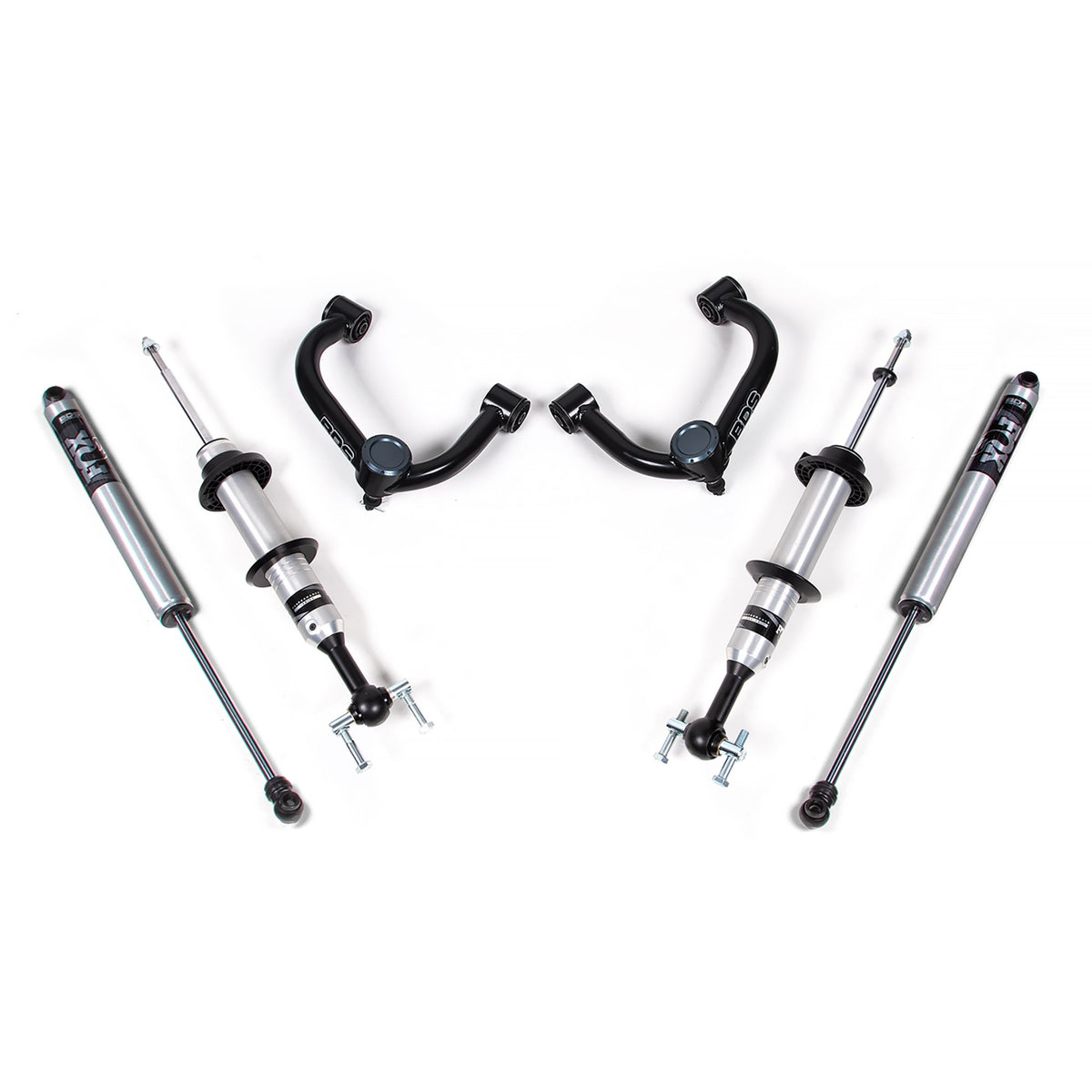

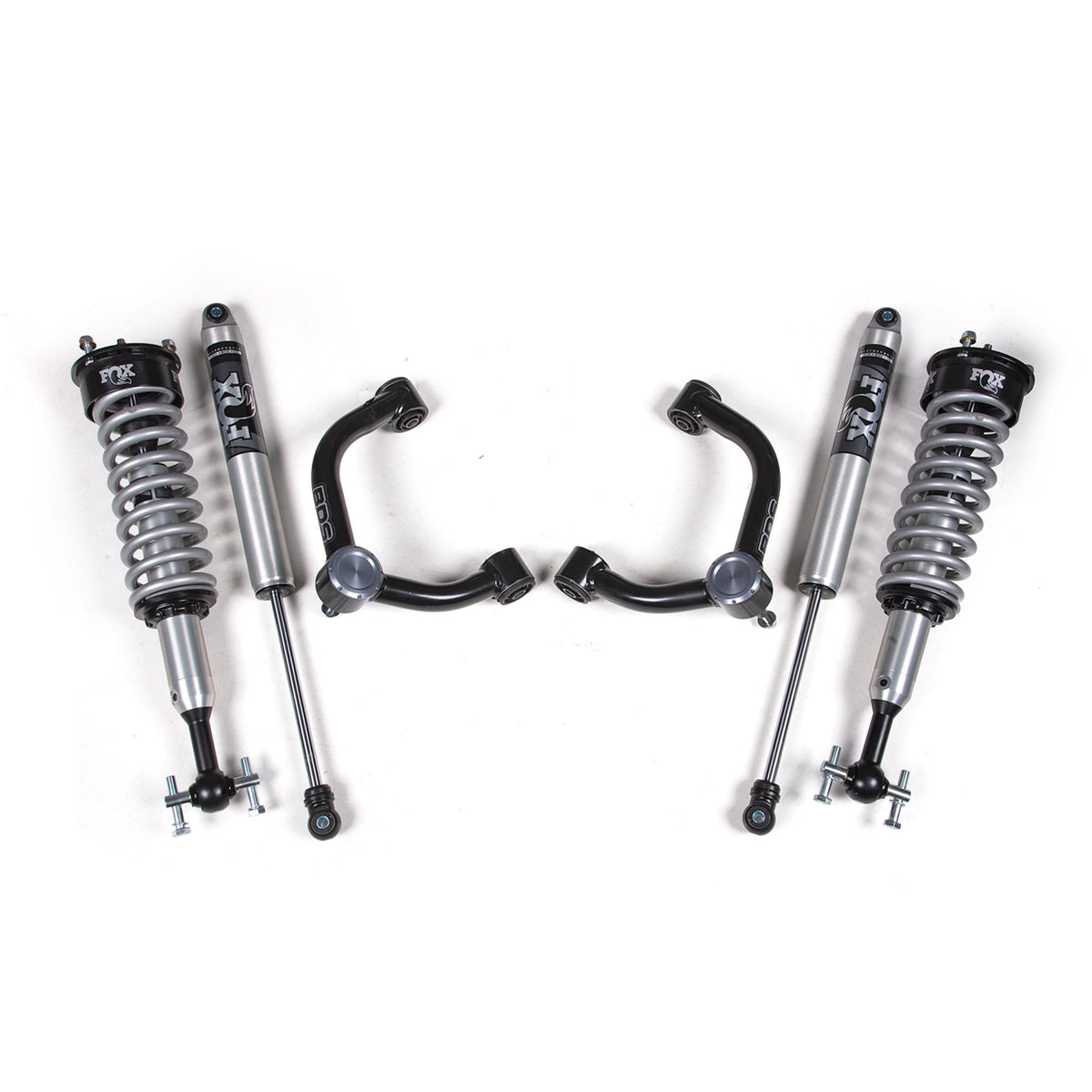

Take your F150 to the next level by installing a FOX 2.0 Snap Ring Strut 2 inch leveling kit with heavy duty upper control arms. These kits use the FOX 2.0 Performance Series coilover struts for a bolt-in upgrade to fit up to 35x12.50 tires while providing improved damper performance across all terrains. FOX 2.0 Struts These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat-treated alloy shaft. HD Upper Control Arms (UCAs) Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Wheel Backspacing & Offset Calculator
Convert wheel backspacing in inches to offset in millimetres, or the other way around. Find the right measurements for your wheel setup.
Backspace to Offset Calculator
Enter wheel width and backspace (inches). Offset can be positive or negative.
- Backspace
- —
- Frontspace
- —
- Offset type
- —
Enter a valid wheel width and measurement to view the diagram.
BDS wheel positioning guidance
Meeting a backspacing limit does not guarantee wheel fitment. Check wheel diameter, tyre size, brake clearance, suspension and all kit-specific requirements.
Results are approximate. The calculation allows an additional 1 inch for the wheel's two rim flanges (approximately 0.5 inch each). Actual flange dimensions vary between wheels.
Understanding wheel measurements
What is wheel backspacing?
The distance from the wheel mounting surface to the outermost edge of the inner rim flange, measured in inches.
What is wheel offset?
The distance between the wheel mounting surface and the wheel centreline, measured in millimetres.
Why does wheel width matter?
Two wheels with the same backspacing but different widths will have different offsets.
Why does BDS specify backspacing?
It helps position the wheel relative to steering and suspension parts, but is only one part of confirming fitment.
