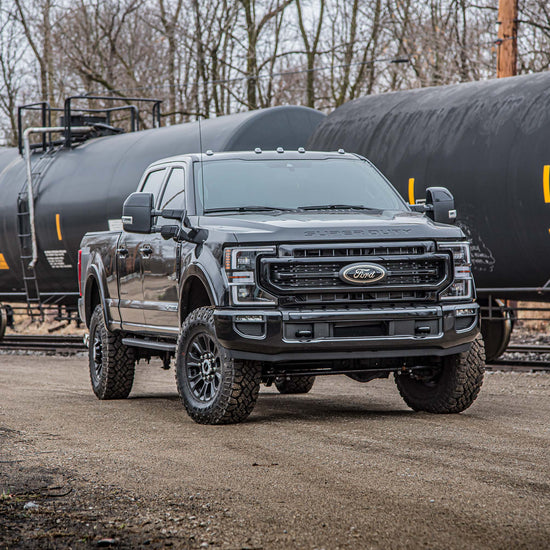

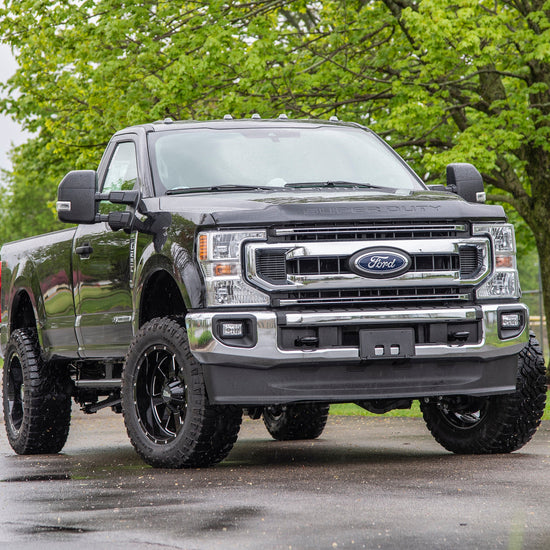

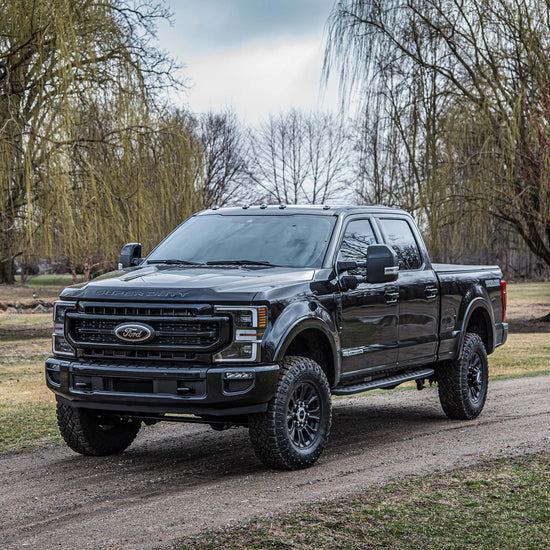

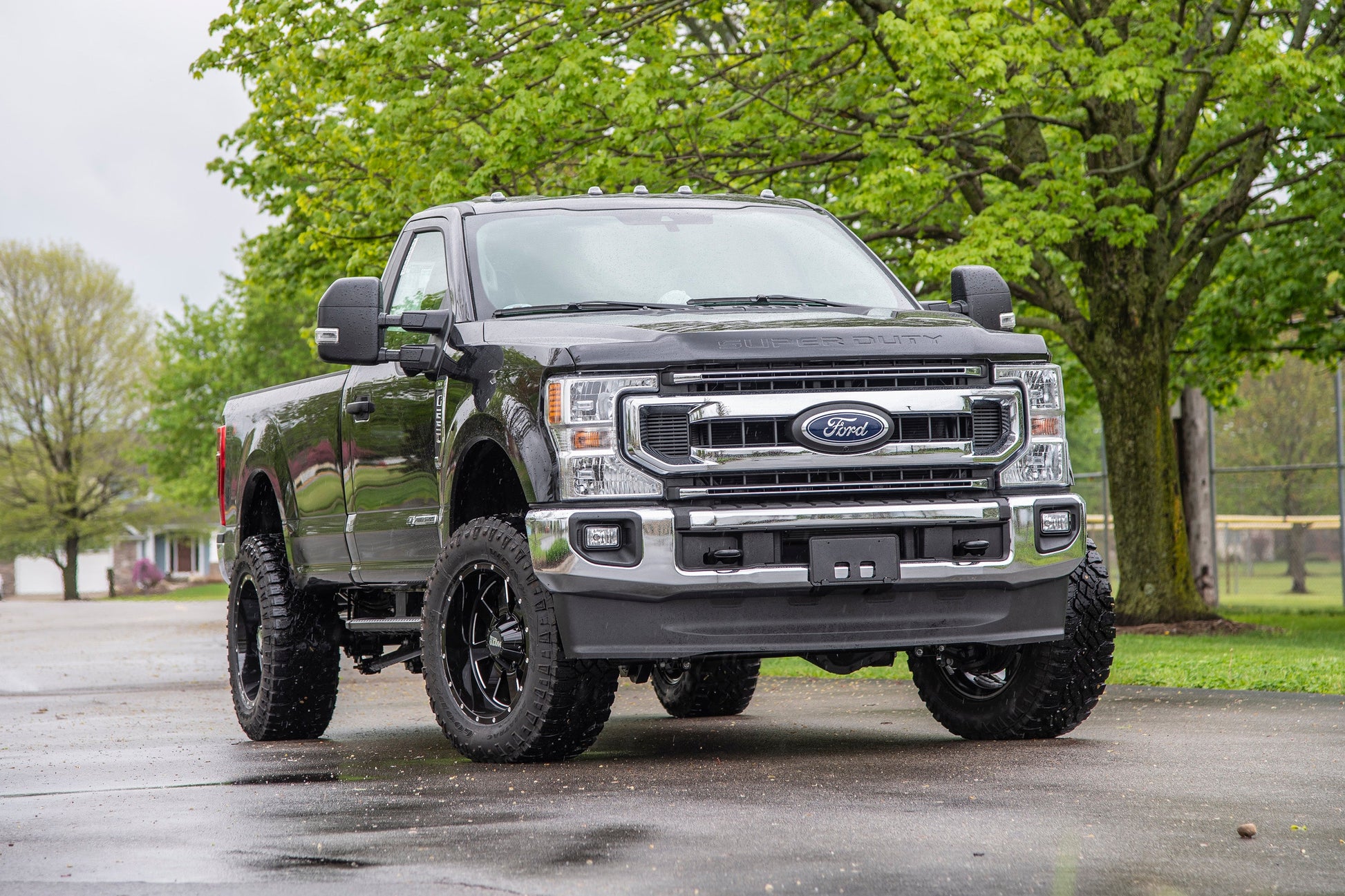

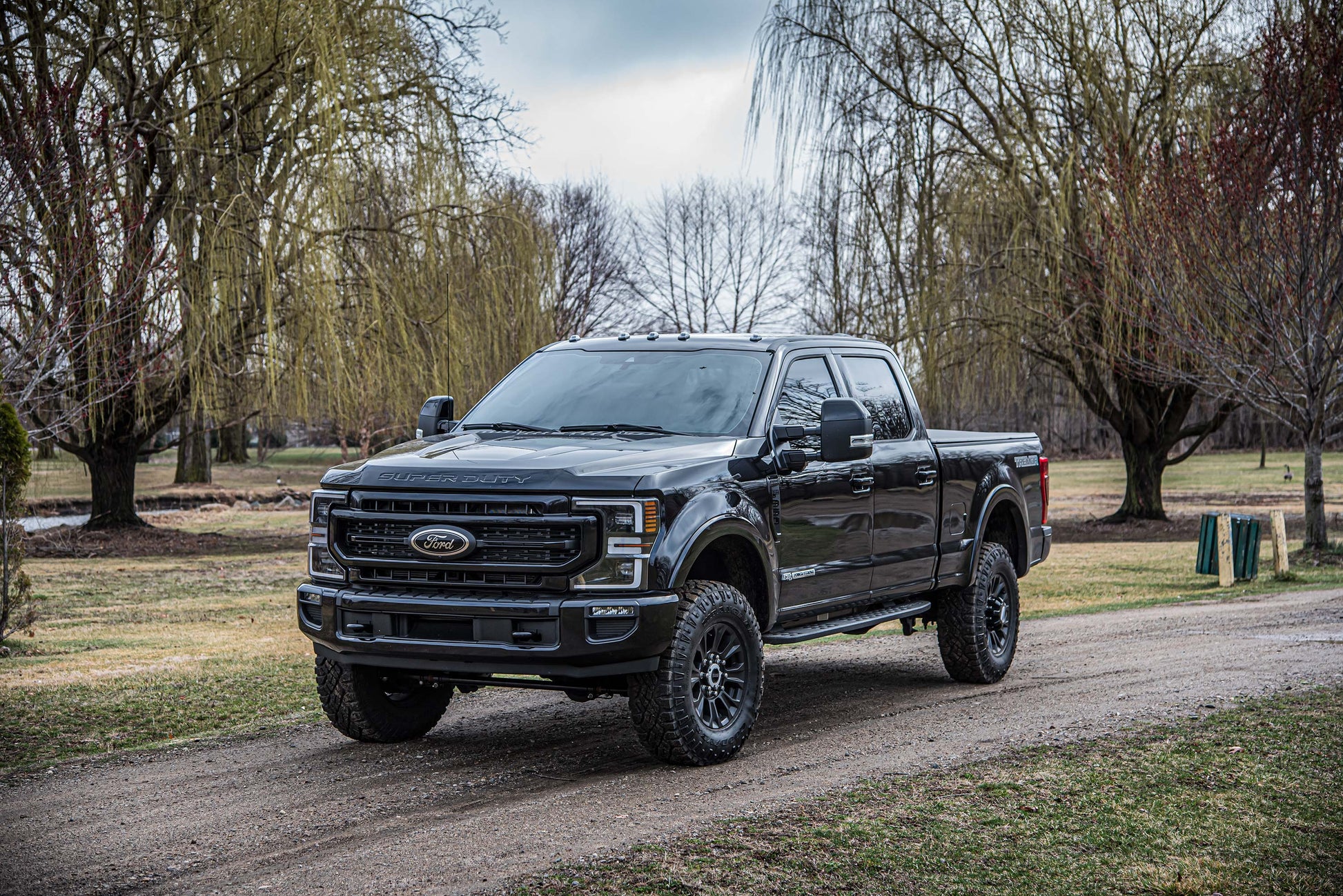

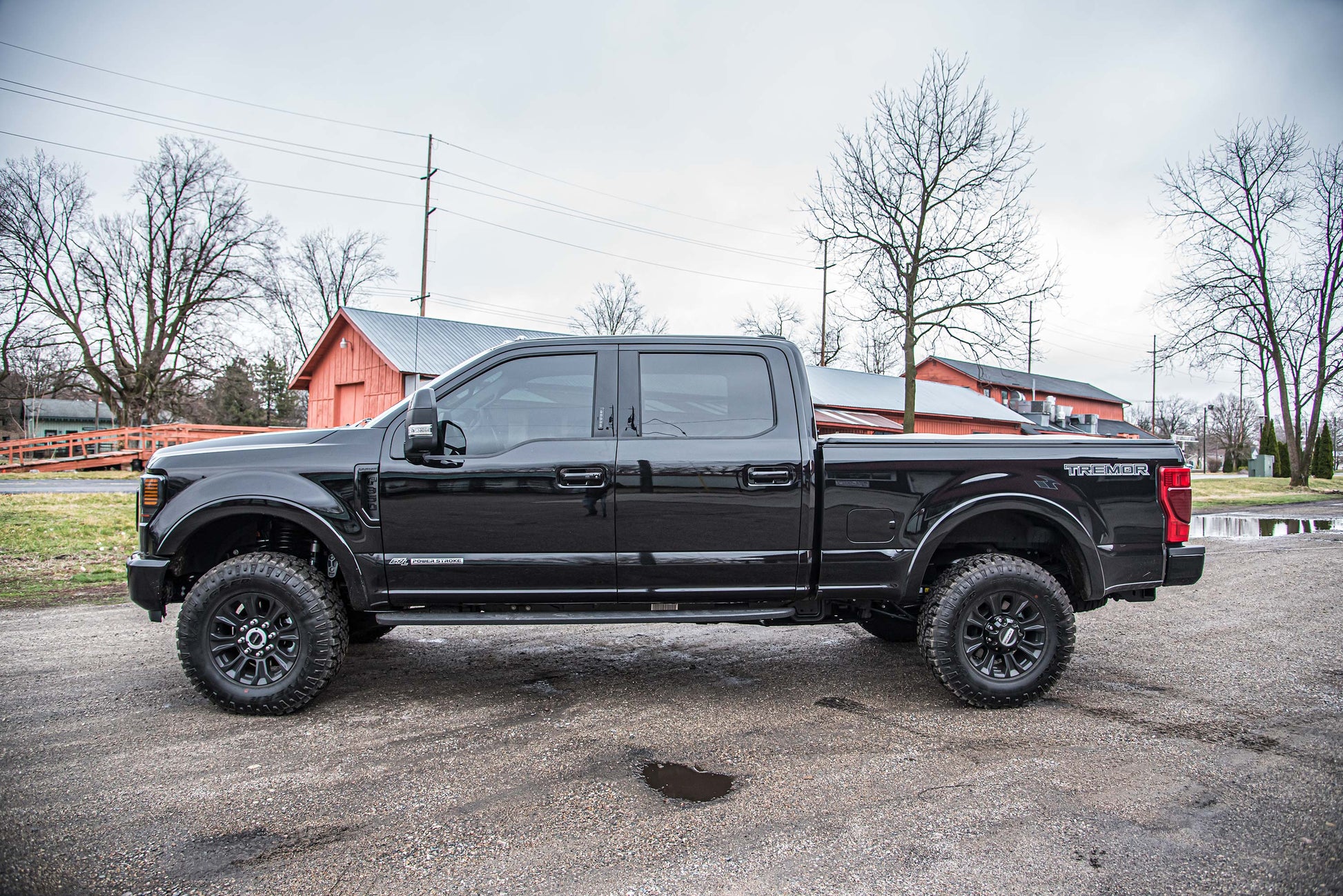

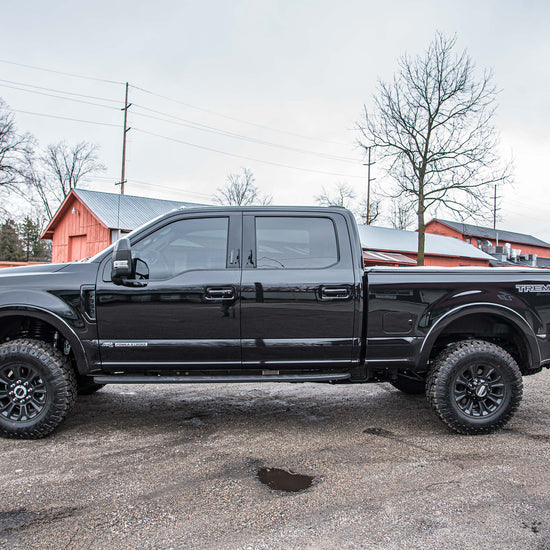

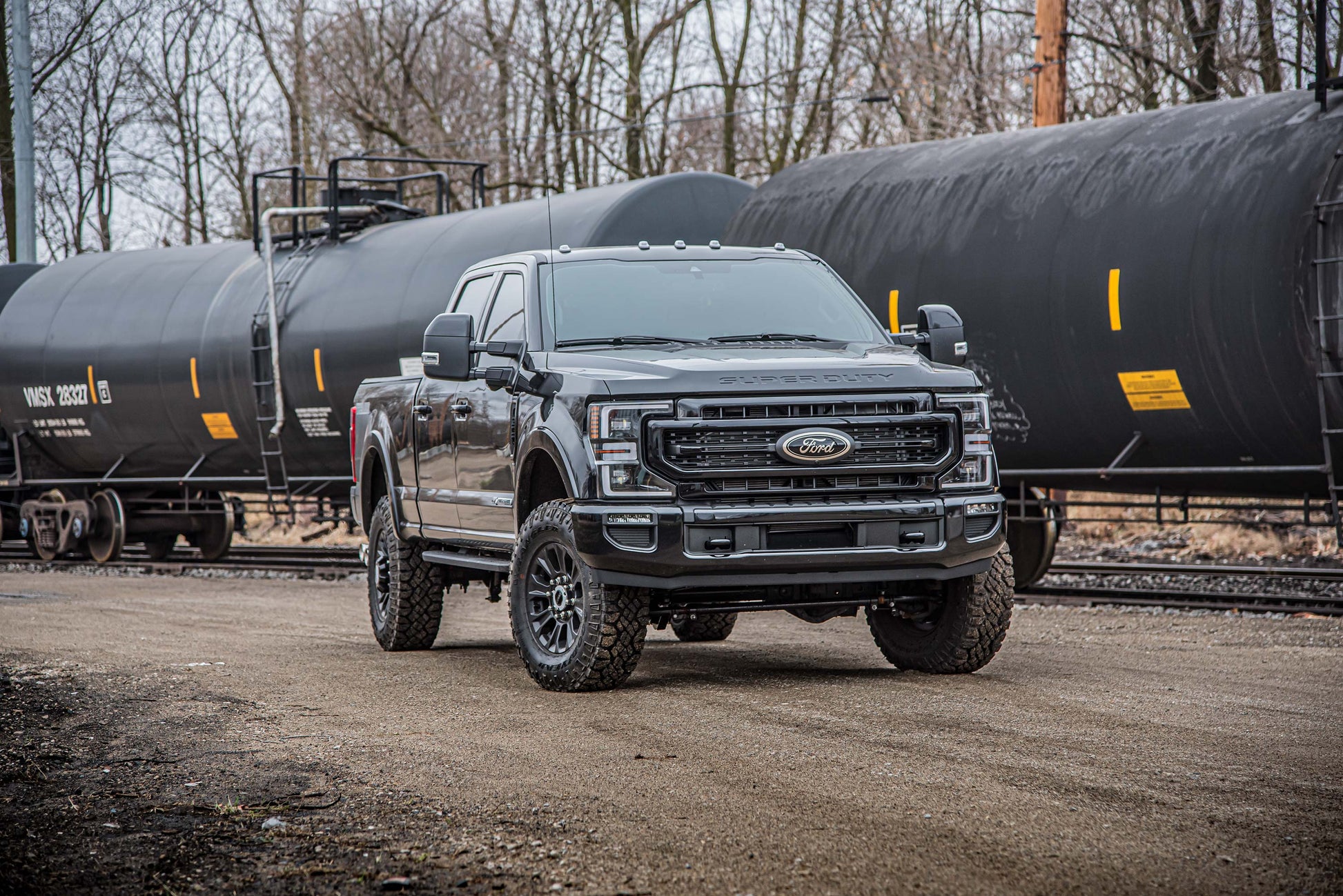

2" Levelling Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (17-24) by BDS Suspension

• Front Lift Method : Coil Spring
• Rear Lift Method : Stock
• Shocks Included : Yes
• Front Lift Height : 2"
• Rear Lift Height : 0"

Installation

• Install Guide 1
• Install Guide 2
• Estimated time: 4 hours
• Difficulty: Moderately Easy

Install Tools

• 30mm Socket

Tyre & Wheel

• 285 / 65 with 18 x 9 and 5.75 in. Backspace
• 305 / 55 with 20 x 9 and 5 in. Backspace

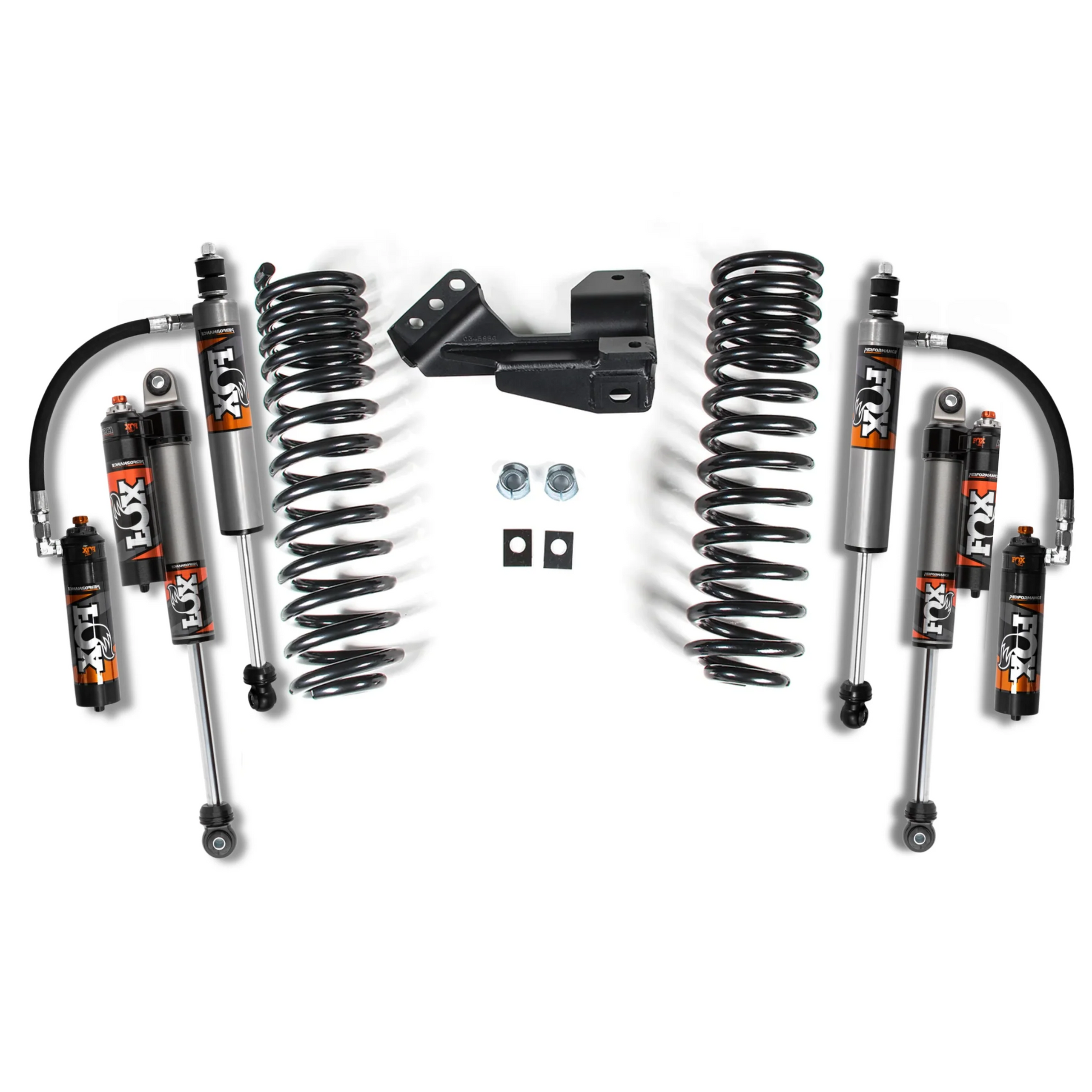

Kit Components

• 883-26-095 (FOX88326095): Front Fox Performance Elite Shocks 2.5" Remote Reservoir DSC Shocks, Suits 0-1.5" Lift, Set of 2
• 883-26-096 (FOX88326096): Rear Fox Performance Elite Series 2.5" Shock, Suits 0-1.5" Lift, Set of 2
• BDS013205: Front Box Kit (17-19 = 1" / 2020+ = 2")
• OK412200-F20: 2" Lifted Front Coils

• 2017-2019 models net 1" of lift height; requires an additional 1" coil spring spacer to sit level.
• 2020-2023 models net 2".
• Kit designed for diesel models; Gas models will achieve approx. 1/2" more ride height.
• 2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road. For vehicles equipped with non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock. Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications. If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information. See installation instructions for additional Information.
