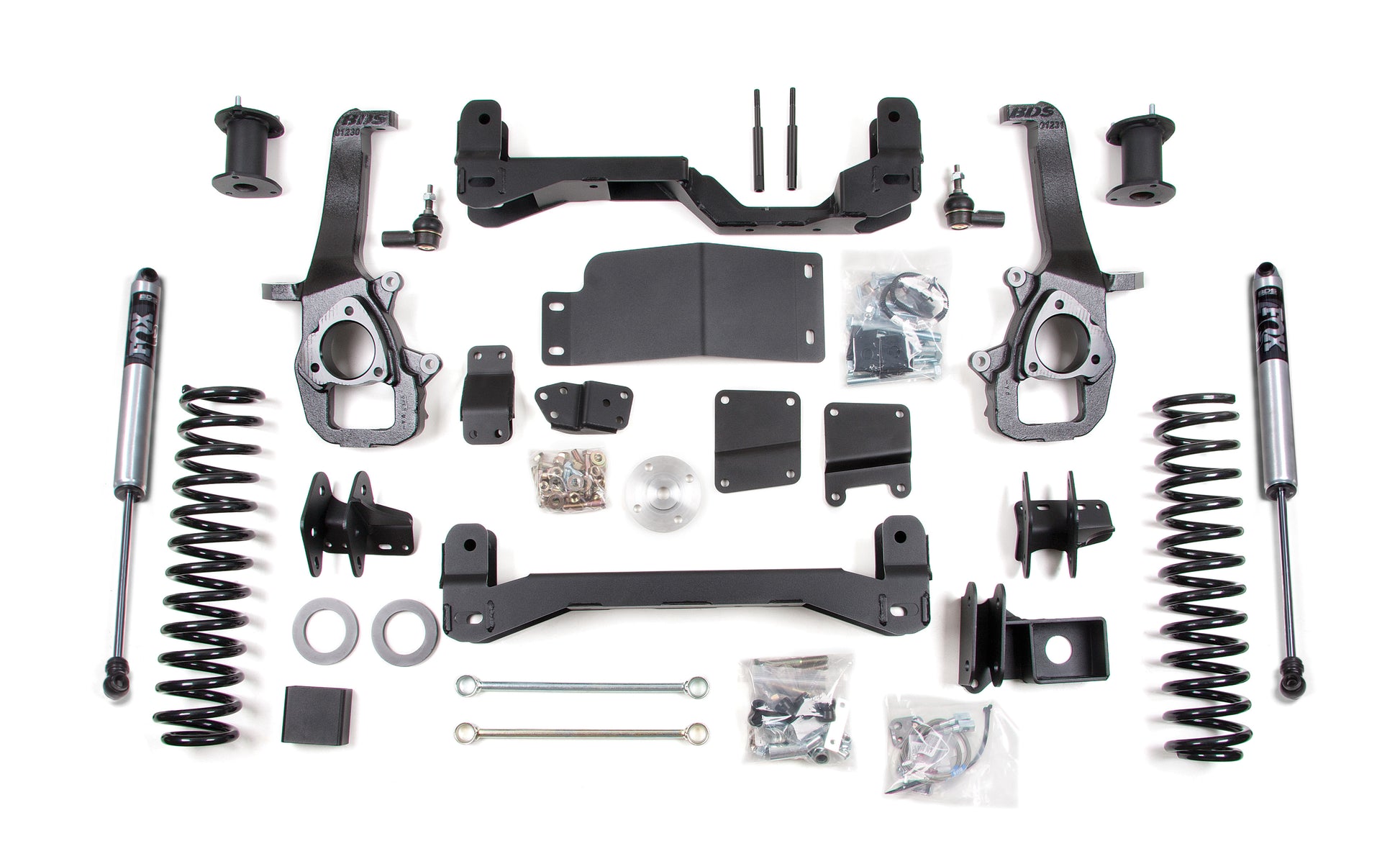

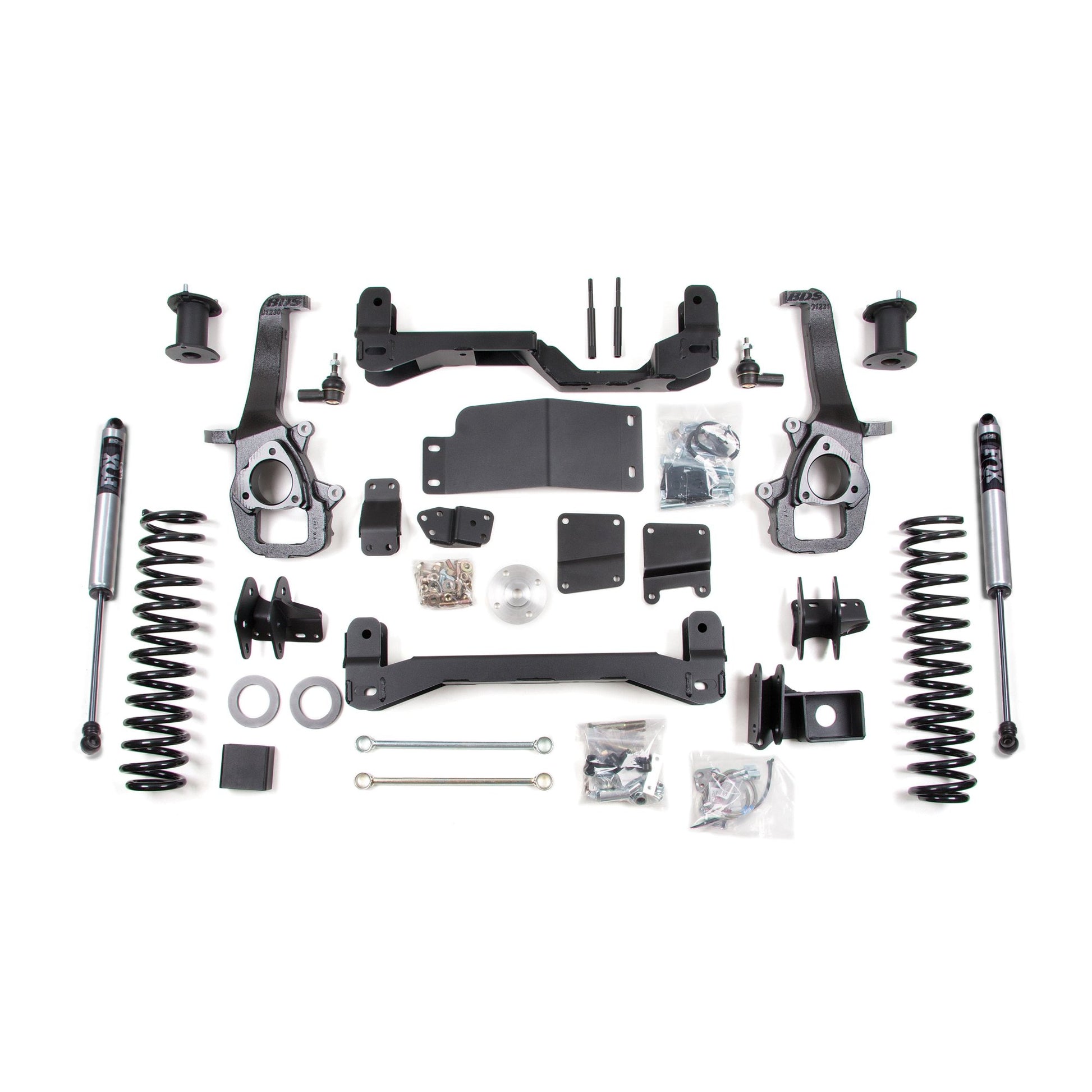

4" Lift Kit Front 4" Spacer + Rear Fox 2.0" Shocks suits Ram 1500 DS (2013-2021) by BDS Suspension

• Front Lift Height: 4
• Front Lift Method: Cross Member
• Rear Lift Height: 3
• Rear Lift Method: Coil Springs
• Rear Lift Option: 3 Inch Coil Springs

Installation

• Install Guide 1
• Install Guide 2
• Estimated time: 10 hours
• Difficulty: Moderate

Install Tools

• Cut Off Wheel or Equiv.,
• Grinder/Sanding Disc
• Pitman Arm Puller
• Welding Equipment

Tyre & Wheel

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

Kit Components

• BDS022309: 3" Rear Box Kit
• BDS022402: BDS Suspension 2012+ Ram 1500 DS Front Box Kit 3 of 4
• BDS022625: 6 in Front Box Kit (4 of 4)
• BDS022630: BDS Suspension 2013+ Ram 1500 DS Front Box Kit 1 of 4
• BDS022631: BDS Suspension 2013+ Ram 1500 DS Front Box Kit 2 of 4
• 982-24-758 (FOX98224758): Rear: Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1

• The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
• Will not fit adjustable air suspension equipped models.
• This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
• This kit is FMVSS No.126 Compliant.
