4" Lift Kit, Air Ride with Rear OK 2.5" Shocks, Large Bore suits Ram 1500 DT (19-26) by BDS Suspension

• Front Lift Height: 4"
• Front Lift Method: Cross Member
• Oe Knuckle Type: Large Bore
• Rear Lift Height: 3"
• Rear Lift Method: Spacer
• Rear Shock Option: Fox 2 0 Performance Series
• Shocks Included: Yes

Installation

• Install Guide 1
• Estimated time: 10 hours
• Difficulty: Moderate

Install Tools

• 35Mm Socket Axle Nut Socket

Tyre & Wheel

• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

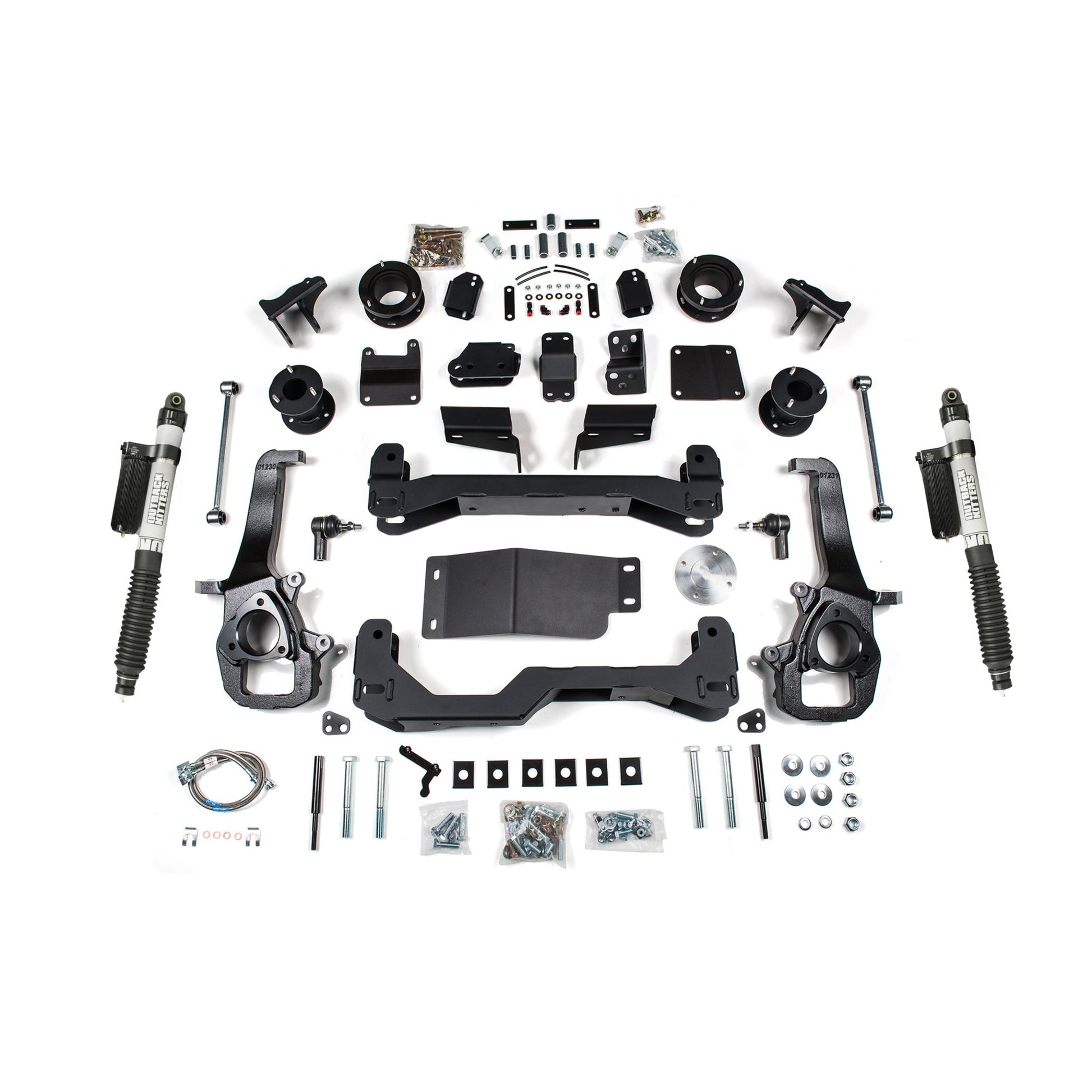

Kit Components

• BDS022307: Air Ride Rear Box Kit
• BDS022308: Air Ride Box Kit
• BDS022640: Knuckle Box Kit - Large Bore (LHS)
• BDS022641: Knuckle Box Kit - Large Bore (RHS)
• BDS022642: BDS Suspension 2019+ Ram 1500 DT Front Box Kit 1 of 2
• BDS022643: Front Box Kit (2 of 2)
• OKSURA404R: Rear 2.5" Remote Reservoir, Compression Adjuster, Suits 4" Lift, Single

• Only suitable for trucks equipped with factory 22" wheels
• Extreme care/caution must be taken to follow the steps of these instructions to prevent any air leaks or damage to the bags during installation.
• The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions will require the system to be recharged (this can be done at any RAM dealer service department). A scan tool is needed to access the air control module to perform the service.
• Frame bracket modification is required.
• Fits 4WD models equipped with factory air ride only.
• Does NOT fit Diesel Models.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines mounted.
