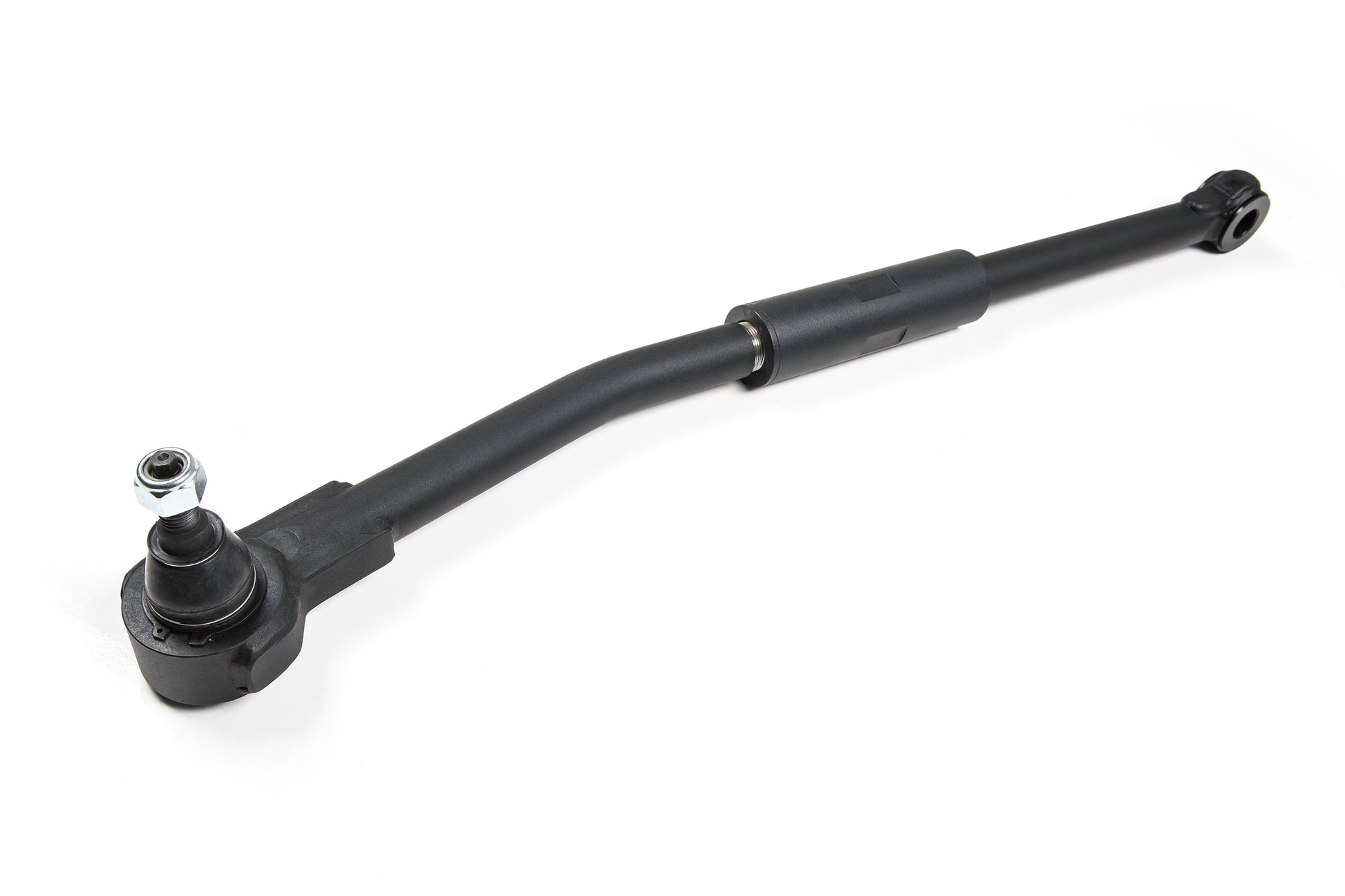

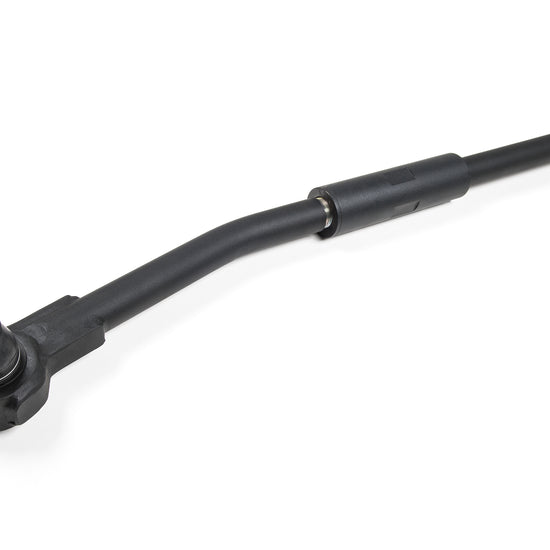

Adjustable Front Track Bar suits Ford F-250 Super Duty/F-350 Super Duty (17-25) by BDS Suspension
Replace your stock 2017-2027 Ford F-250 or F-350 Super Duty 4WD adjustable front track bar with a heavy-duty BDS upgrade, constructed from 1-3/8" solid steel stock reinforced with gusseted ends. Designed for use on 0- to 3-inches of lift and can be used in combination with most aftermarket track bar brackets to be used on taller lift heights.
Adjustments are made at the 1-3/8" x 12 fine-threaded center turnbuckle with pinch-bolt ends to allow easy tuning to properly recenter the front axle for a range of lift heights. Track bar is formed for proper clearance around critical front-end components, designed to easy installation without the need to clear the factory frame and axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability.
Wheel Backspacing & Offset Calculator
Convert wheel backspacing in inches to offset in millimetres, or the other way around. Find the right measurements for your wheel setup.
Backspace to Offset Calculator
Enter wheel width and backspace (inches). Offset can be positive or negative.
- Backspace
- —
- Frontspace
- —
- Offset type
- —
Enter a valid wheel width and measurement to view the diagram.
BDS wheel positioning guidance
Meeting a backspacing limit does not guarantee wheel fitment. Check wheel diameter, tyre size, brake clearance, suspension and all kit-specific requirements.
Results are approximate. The calculation allows an additional 1 inch for the wheel's two rim flanges (approximately 0.5 inch each). Actual flange dimensions vary between wheels.
Understanding wheel measurements
What is wheel backspacing?
The distance from the wheel mounting surface to the outermost edge of the inner rim flange, measured in inches.
What is wheel offset?
The distance between the wheel mounting surface and the wheel centreline, measured in millimetres.
Why does wheel width matter?
Two wheels with the same backspacing but different widths will have different offsets.
Why does BDS specify backspacing?
It helps position the wheel relative to steering and suspension parts, but is only one part of confirming fitment.
