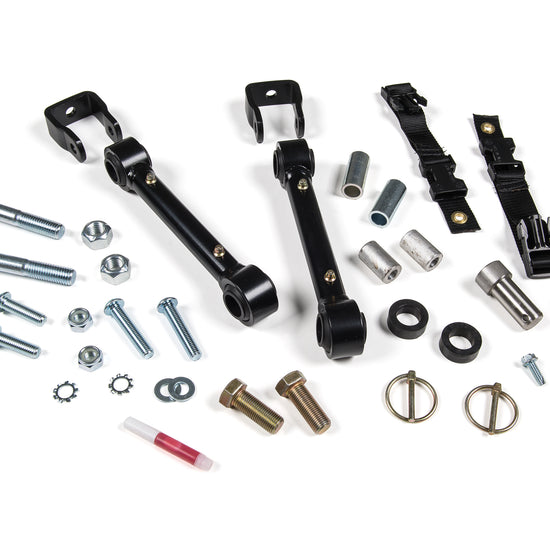

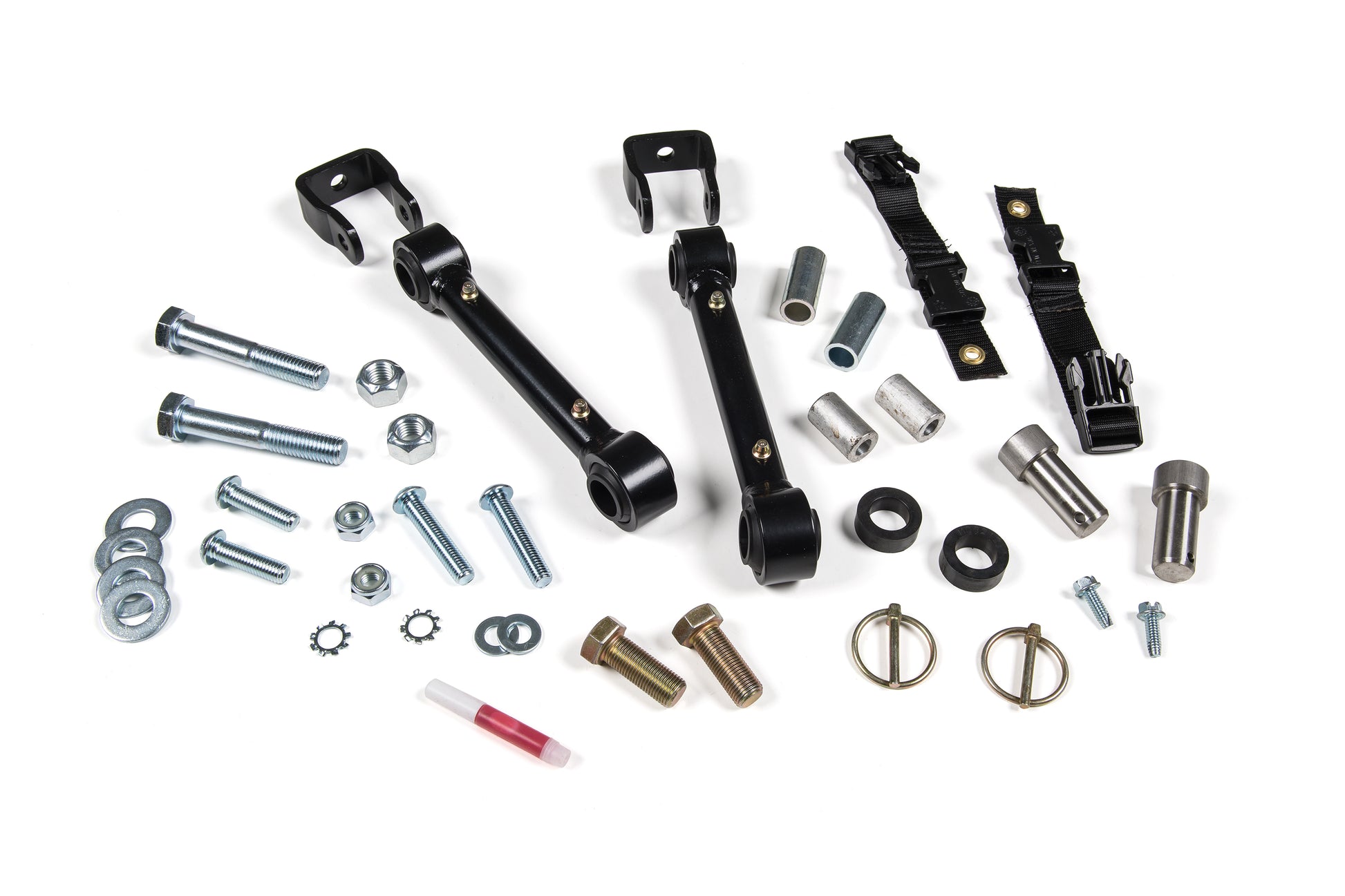

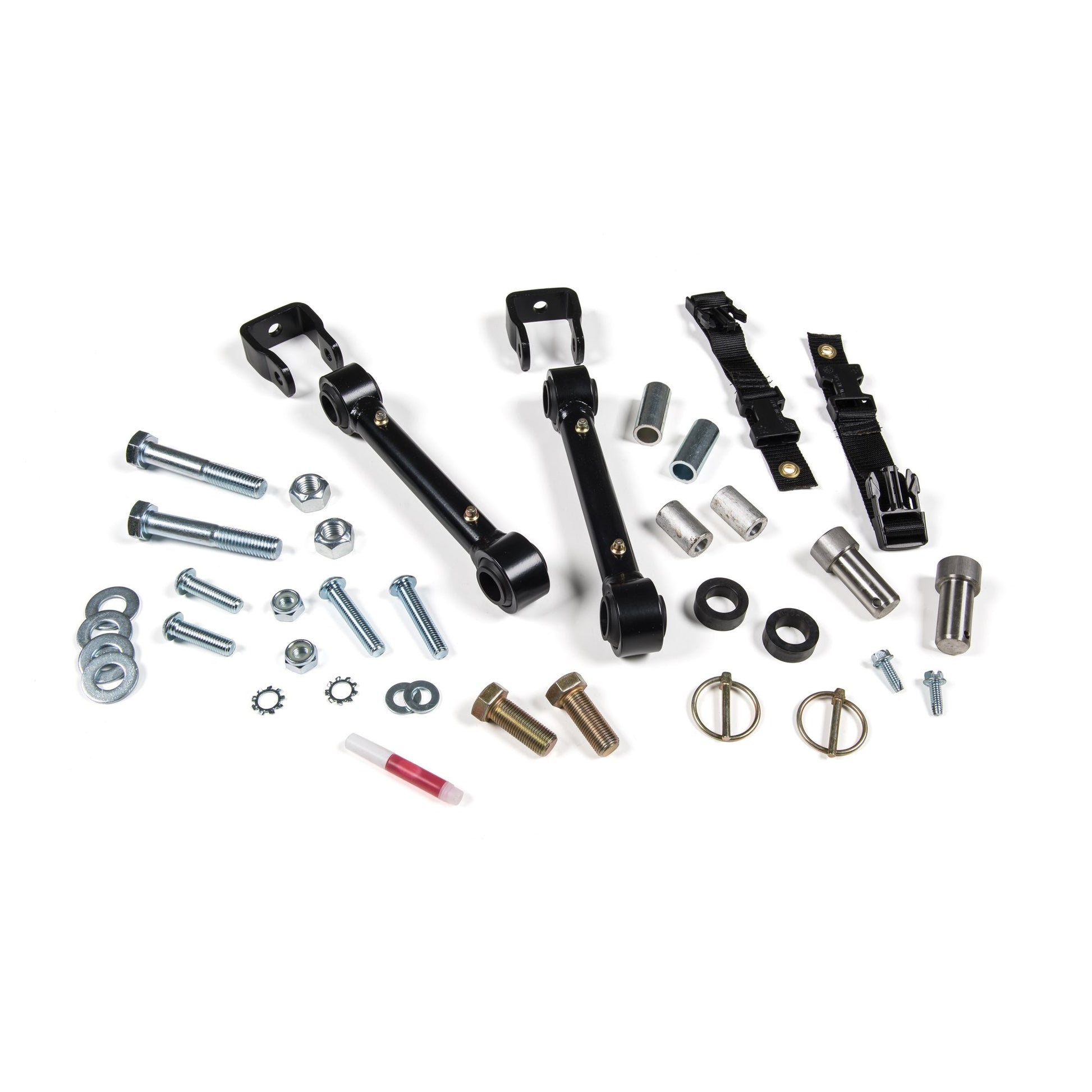

Front Sway Bar Disconnect Kit including Sway Bar Links suits Ram 2500 (14-26), 3500 (13-24) by BDS Suspension
Improve the handling of a lifted 2014-2026 Dodge Ram 2500 or 2013-2027 Ram 3500 with a factory front sway bar. Designed to be used with a 3- to 8-inch lift kit, the BDS front sway bar link disconnect kit will improve handling and prevent body roll. These disconnect kits are a manual disconnect with the links able to be quickly removed and clipped out of the way to achieve full capability of your RAM's suspension.
The BDS heavy-duty replacement sway bar links are designed specifically for lifted applications. These sway bar links are designed to correct the sway bar operating angle for improved performance for use on BDS lift kits and are compatible with most other lift kits on the market. The new sway bar links are built from 7/8" solid steel bar and feature grease-able, high-misalignment spherical polyurethane bushings. All mounting hardware is included for simple, bolt on installation on your RAM HD.
Wheel Backspacing & Offset Calculator
Convert wheel backspacing in inches to offset in millimetres, or the other way around. Find the right measurements for your wheel setup.
Backspace to Offset Calculator
Enter wheel width and backspace (inches). Offset can be positive or negative.
- Backspace
- —
- Frontspace
- —
- Offset type
- —
Enter a valid wheel width and measurement to view the diagram.
BDS wheel positioning guidance
Meeting a backspacing limit does not guarantee wheel fitment. Check wheel diameter, tyre size, brake clearance, suspension and all kit-specific requirements.
Results are approximate. The calculation allows an additional 1 inch for the wheel's two rim flanges (approximately 0.5 inch each). Actual flange dimensions vary between wheels.
Understanding wheel measurements
What is wheel backspacing?
The distance from the wheel mounting surface to the outermost edge of the inner rim flange, measured in inches.
What is wheel offset?
The distance between the wheel mounting surface and the wheel centreline, measured in millimetres.
Why does wheel width matter?
Two wheels with the same backspacing but different widths will have different offsets.
Why does BDS specify backspacing?
It helps position the wheel relative to steering and suspension parts, but is only one part of confirming fitment.
