BDS Suspension 4" Lift Kit for 2025+ Ram 1500 DT

$13,200.00 AUD
$13,200.00 AUD
Save 0
Tax included.
  • Stock: Checking...
  • SKU:
    BDS2117FPE
  • Vendor:
    Outback Kitters
  • Product type:
    4" Lift Kit

This kit suits 2025+ RAM 1500. Do you have for 2019-2024?

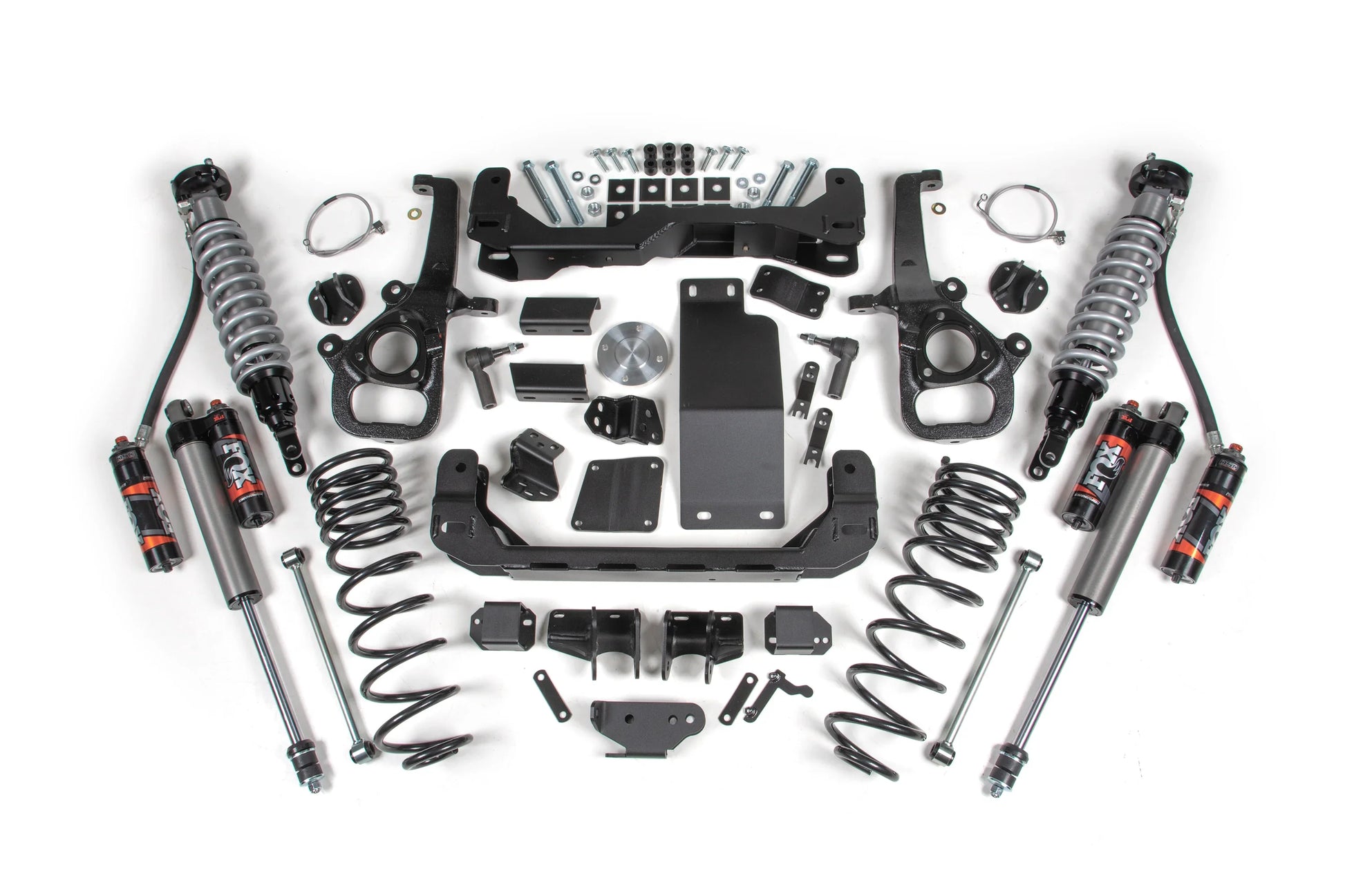

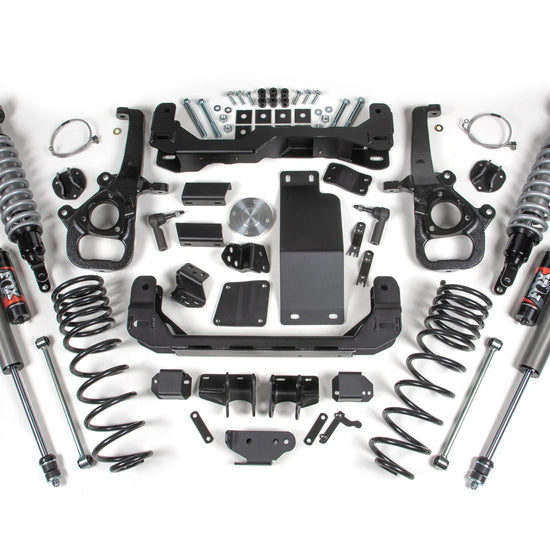

Hit the trails in your 2025 RAM 1500 truck after installing our coil-over suspension lift kit featuring FOX 2.5 Performance Elite Coil-over shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.



IMPORTANT NOTES

You must choose if you need the Standard Knuckles or Large Bore Knuckles.

  • Standard Knuckles are for factory 18" or 20" Wheels (Rebel or Laramie).
  • Large Bore Knuckles are for factory 22" Wheels (Limited).

Please make sure you order the correct kit.

FITMENT

  • To suit 2025+ Ram 1500 DT Models with Front & Rear Coils
  • This will not suit Air Suspension models
  • Will not fit Ram 1500 DS Classic models
Engineered to Perform

Engineered to Perform

BDS suspension kits are purpose-built for strength, reliability, and a perfect fit. Each system includes everything you need to get your ute or truck sitting right, with no hidden extras.

Key Features:

  • Lift heights from 2” to 8”
  • Complete systems – nothing left out
  • FOX shock upgrades available
  • Designed to maintain factory ride comfort
  • Lifetime No Fine Print Warranty
On-Road Comfort. Off-Road Capability.

On-Road Comfort. Off-Road Capability.

From the bitumen to the bush, BDS delivers a smooth, controlled ride. Pair your kit with FOX shocks tuned for your vehicle, and you’ll have the confidence to tackle corrugations, ruts, and washouts with ease.

Highlights:

  • Maintains driveline geometry
  • Built for towing and heavy loads
  • Designed and tested for tough Aussie conditions
Built Tough. Backed for Life.

Built Tough. Backed for Life.

Every BDS kit is finished with a premium powder coat for corrosion resistance and backed by a lifetime warranty. Break it, bend it, or crack it – BDS will replace it—no fine print. No worries.

Brand Promise:

  • Lifetime warranty, no questions asked
  • Trusted by off-roaders worldwide
  • Backed by expert local support
Why Choose BDS Suspension?

Why Choose BDS Suspension?

BDS isn’t just another lift kit – it’s peace of mind. With precision engineering, heavy-duty components, and unbeatable after-sales support, you’re not just buying a kit, you’re investing in every trip your rig takes.

Quick Points:

  • Proven performance in Aussie conditions
  • Designed to work seamlessly with late-model 4WDs and utes
  • Backed by one of the strongest warranties in the industry
Adventure Starts Here

Adventure Starts Here

Whether you’re towing the caravan, hauling gear for work, or hitting the tracks on the weekend, BDS Suspension gives your rig the clearance, stance, and strength it needs to handle anything Australia throws at it.
