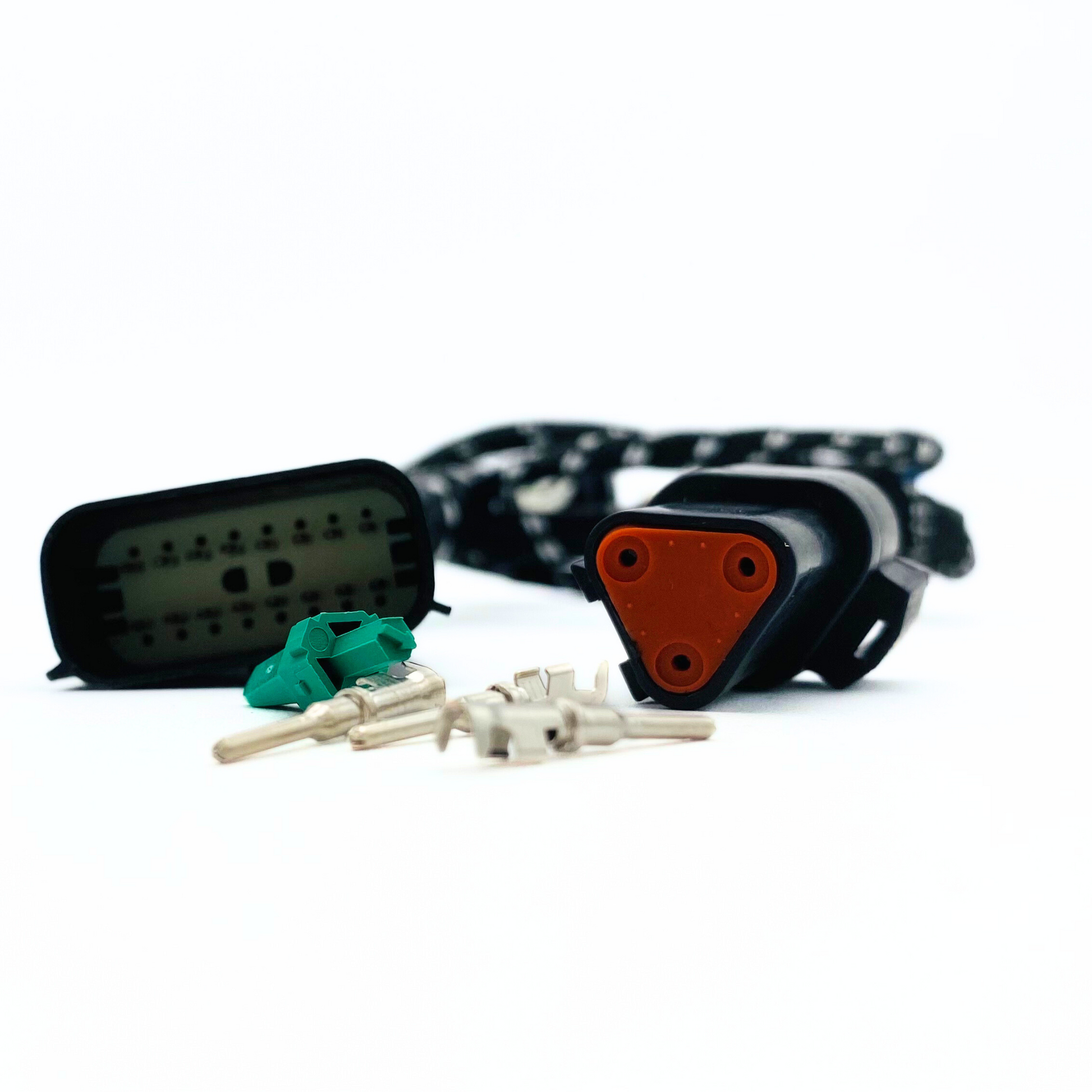

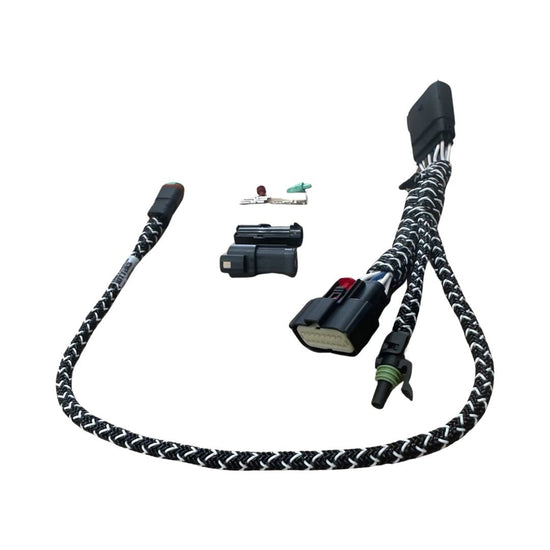

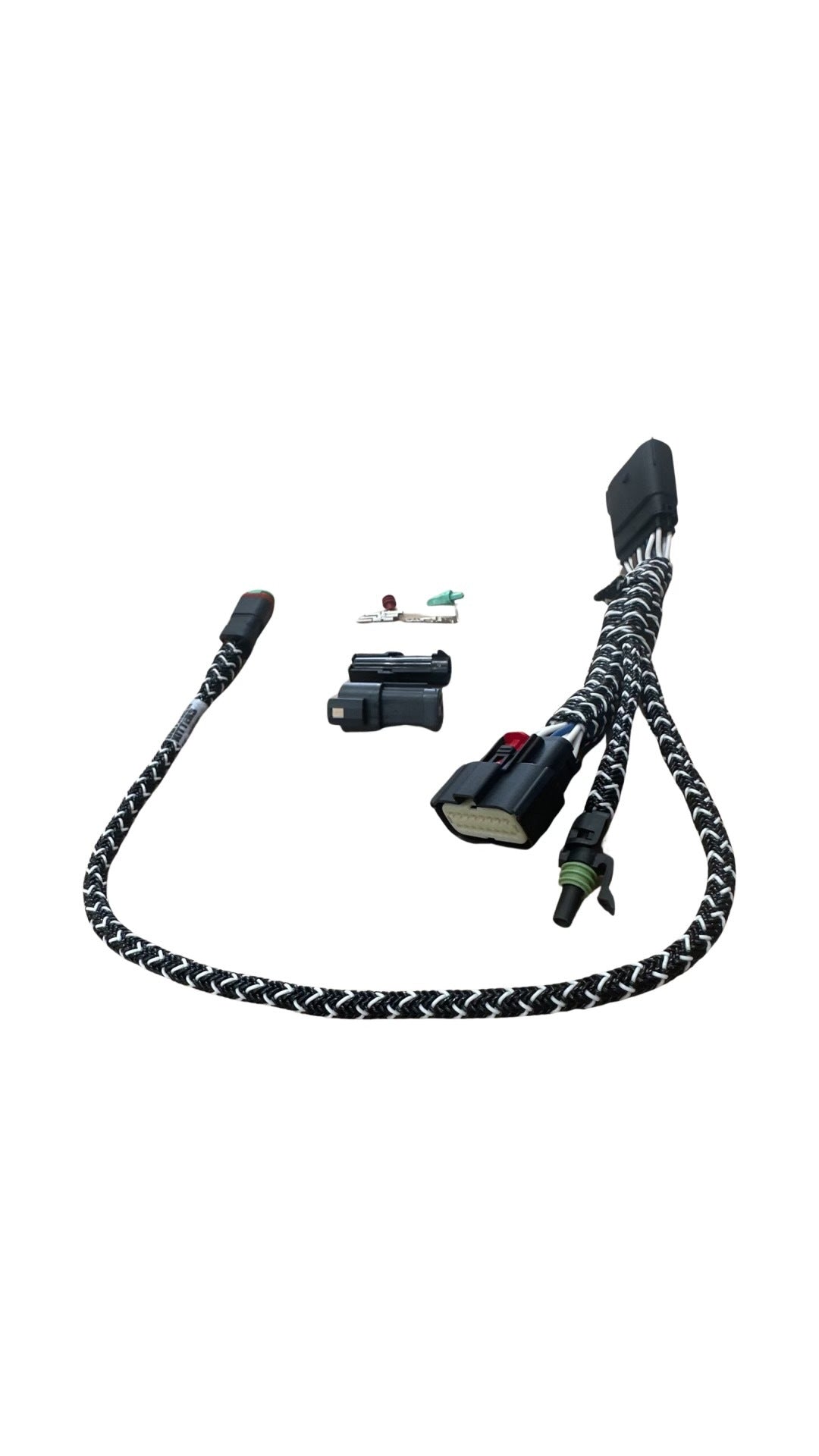

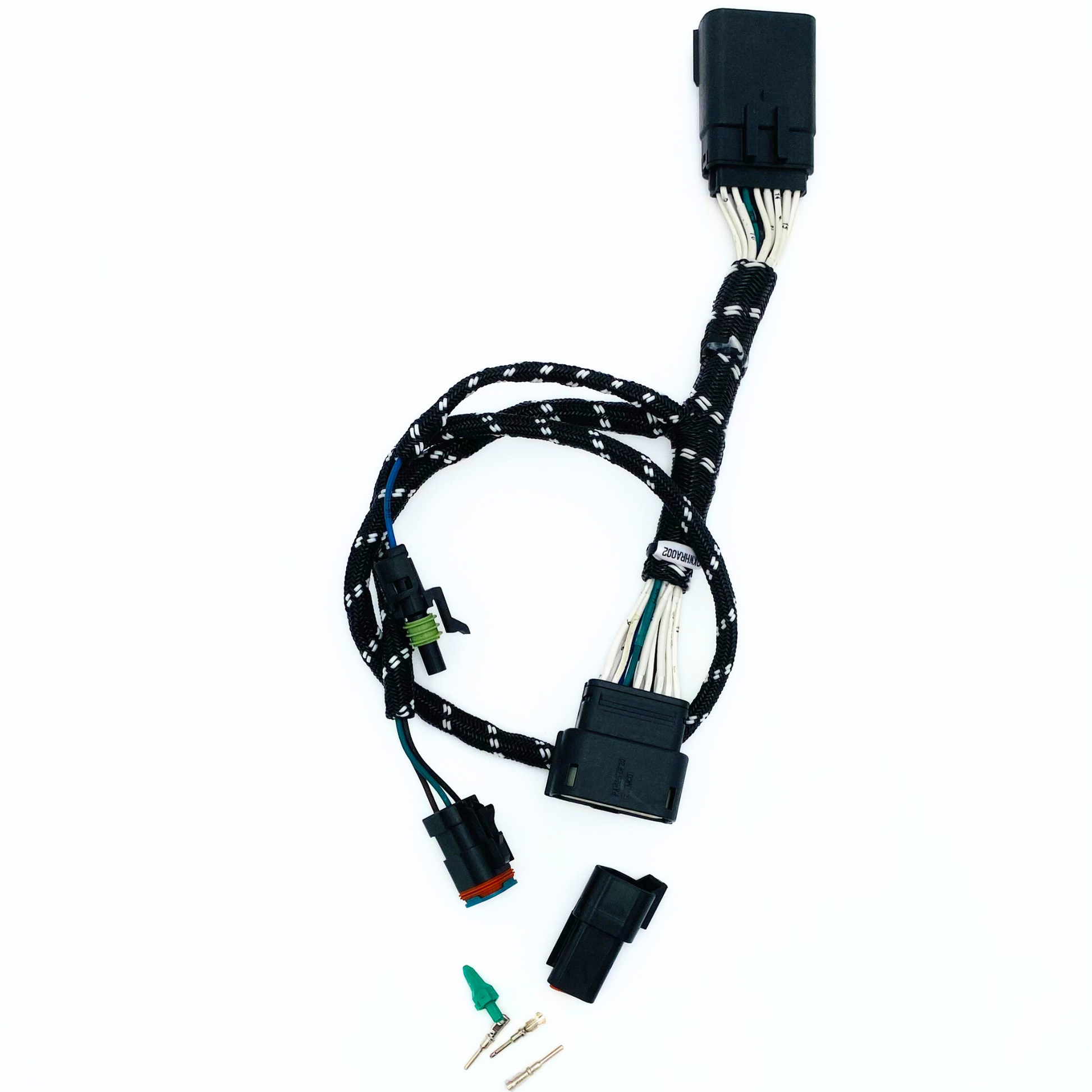

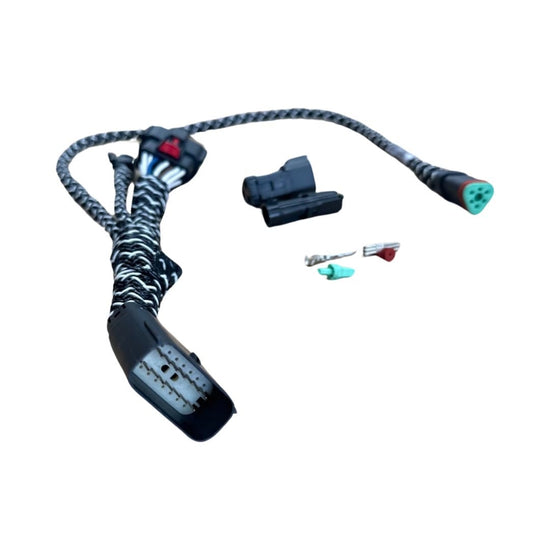

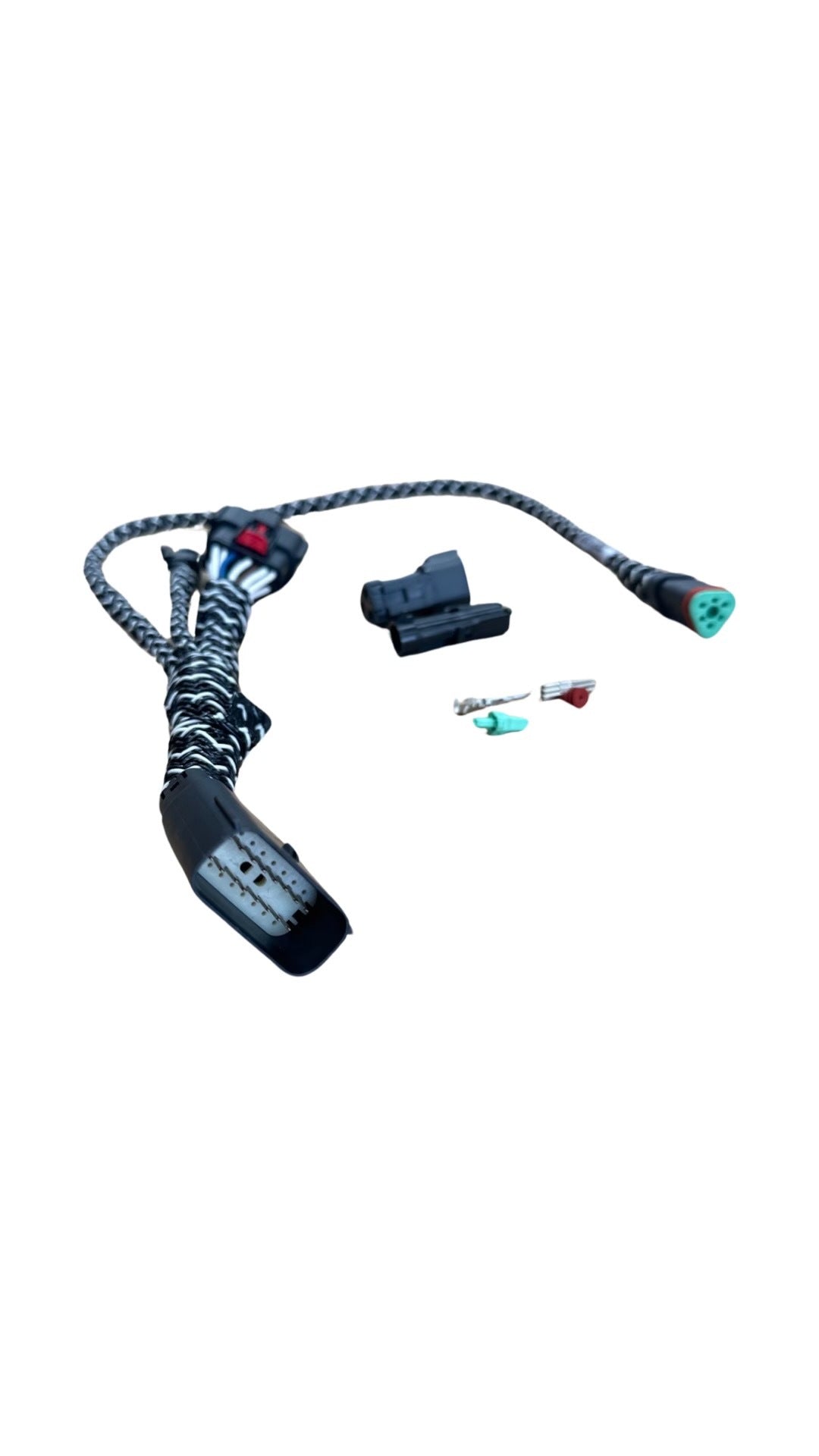

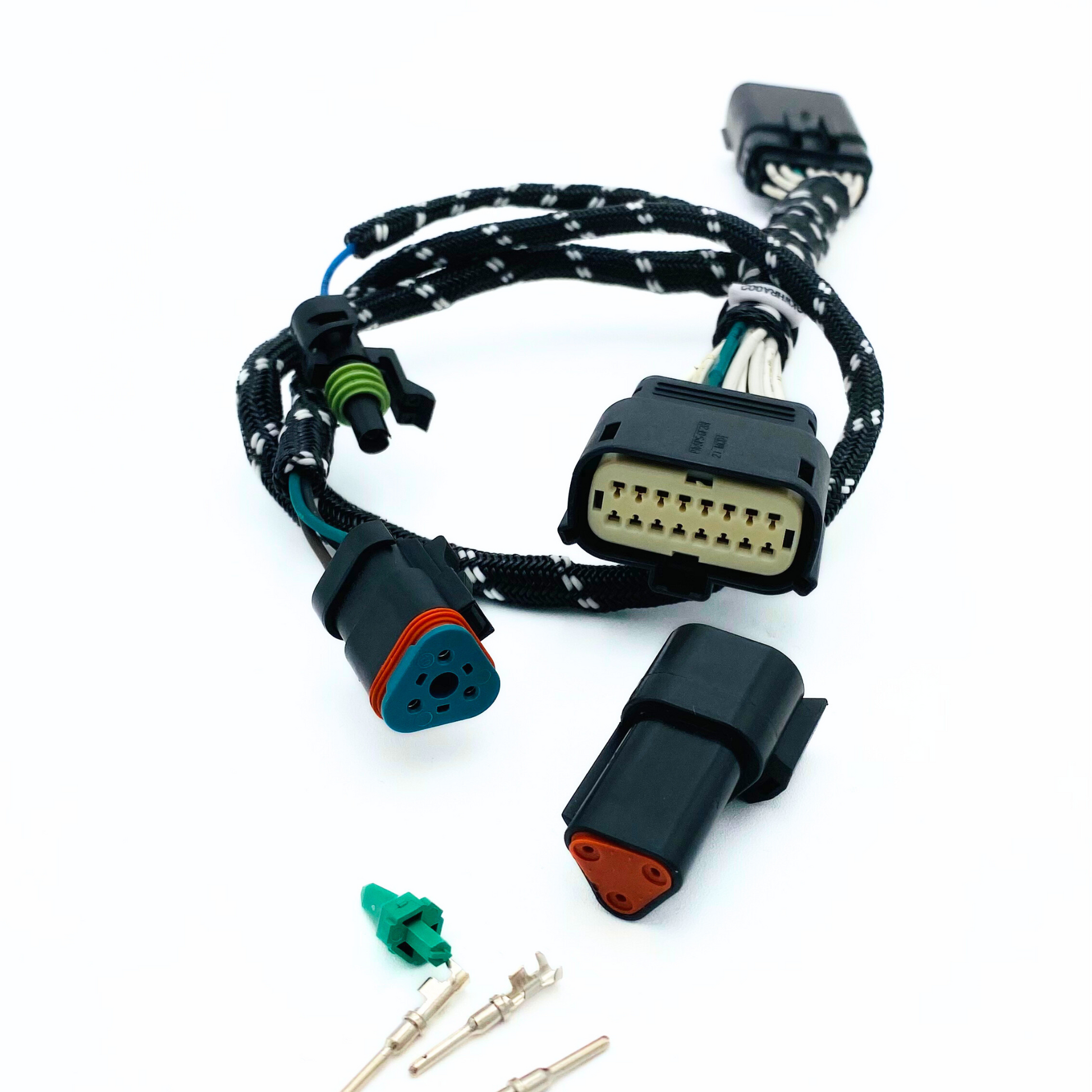

Headlight High Beam Trigger Patch Harness for Ram 1500 DT/2500
Plug & Play Spotlight Integration – No Wire Cutting Required
Light up the tracks the smart way with the Outback Kitters High Beam Patch Harness, engineered specifically for the Ram 1500 DT (2019-2024) / 2500. This simple, plug-and-play solution allows you to seamlessly connect your driving lights, spotlights, or LED light bars so they switch on automatically with your factory high beam—no splicing, soldering, or wire tapping required.
Whether you're installing auxiliary lighting for off-road adventures or upgrading your night-time visibility, this harness eliminates the guesswork and protects your vehicle’s factory wiring.
FITMENT
Note: (P/N OK131006) 2025+ RAM 1500 DT is landing soon
This headlight high beam patch harness comes with three different options:-
- 12 Pin (most commonly found on Ram 2500's)
- 12 Pin (RAM 1500 Big Horn)
- 16 Pin (most commonly found on Ram 1500 DT's)
12 PIN DESIGNED FOR:
- Tradesman
- Big Horn (-2018)
- Laramie (also available as a 16 pin - MUST CHECK BEFORE ORDERING)
Typically the 12 Pin Harness is for the Base Models (Tradesman / Big Horn) and the 16 Pin Harness is for the Premium Headlights with LEDs (Laramie / Limited / TRX). We have noticed however some Premium LED Headlights have been coming with the 12 Pin Harness so double check the pin out connect.
16 PIN DESIGNED FOR:
- Laramie (these also come in a 12 Pin - MUST CHECK BEFORE ORDERING)
- Longhorn
- Limited
- TRX
INSTALLATION
For instructions on how to install but to also choose the right harness:
PREVIOUS SKU
- OKWHRA003 - 12-pin (use OK131003)
- OKWHRA002 - 16-pin (use OK131002)
Reliable Power for Every Accessory
Outback Kitters wiring harnesses are designed to safely power your 4x4 accessories, from LED light bars to winches. With quality materials and smart engineering, they deliver consistent power without overloading your vehicle’s electrical system.
Plug-and-Play Design
Our harnesses are built for easy installation. Most come with plug-and-play connectors that fit your vehicle’s factory wiring, eliminating the need for cutting, splicing, or complex rewiring.
Engineered for Harsh Conditions
Made with high-quality wiring, heat-resistant sheathing, and weatherproof connectors, Outback Kitters harnesses are built to withstand dust, moisture, and the extreme temperatures often encountered in Australia’s outback.
Versatile Solutions for Your Rig
Whether you’re installing lights, winches, or other 4x4 accessories, Outback Kitters offers a range of harnesses tailored to popular vehicles. Each harness is designed to handle the load and keep your system running safely and efficiently.
Peace of Mind with Every Harness
When you choose Outback Kitters, you’re getting wiring solutions that are tested, reliable, and backed by a trusted brand. Protect your accessories, avoid electrical issues, and enjoy a professional installation every time.
FREQUENTLY ASKED QUESTIONS
The Outback Kitters Harnesses are vehicle / application specific.
Not necessarily. Most Outback Kitters harnesses are plug-and-play with clear instructions, allowing a straightforward DIY installation. That was the foundation in the pursuit of making these harnesses in the first place!
Yes. All Outback Kitters wiring harnesses are backed by a manufacturer’s warranty for defects in materials and workmanship, giving you peace of mind with every purchase.
