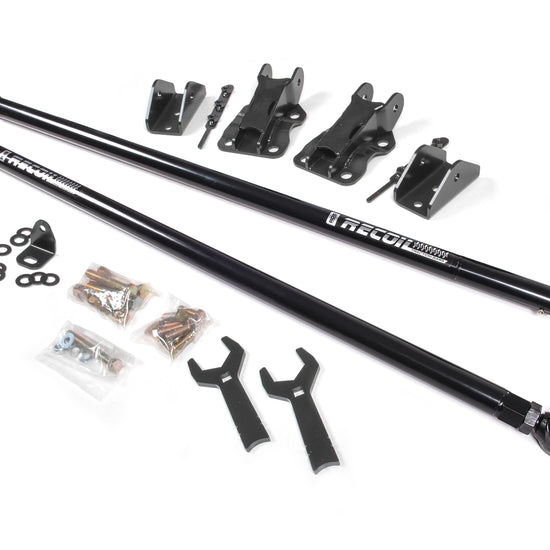

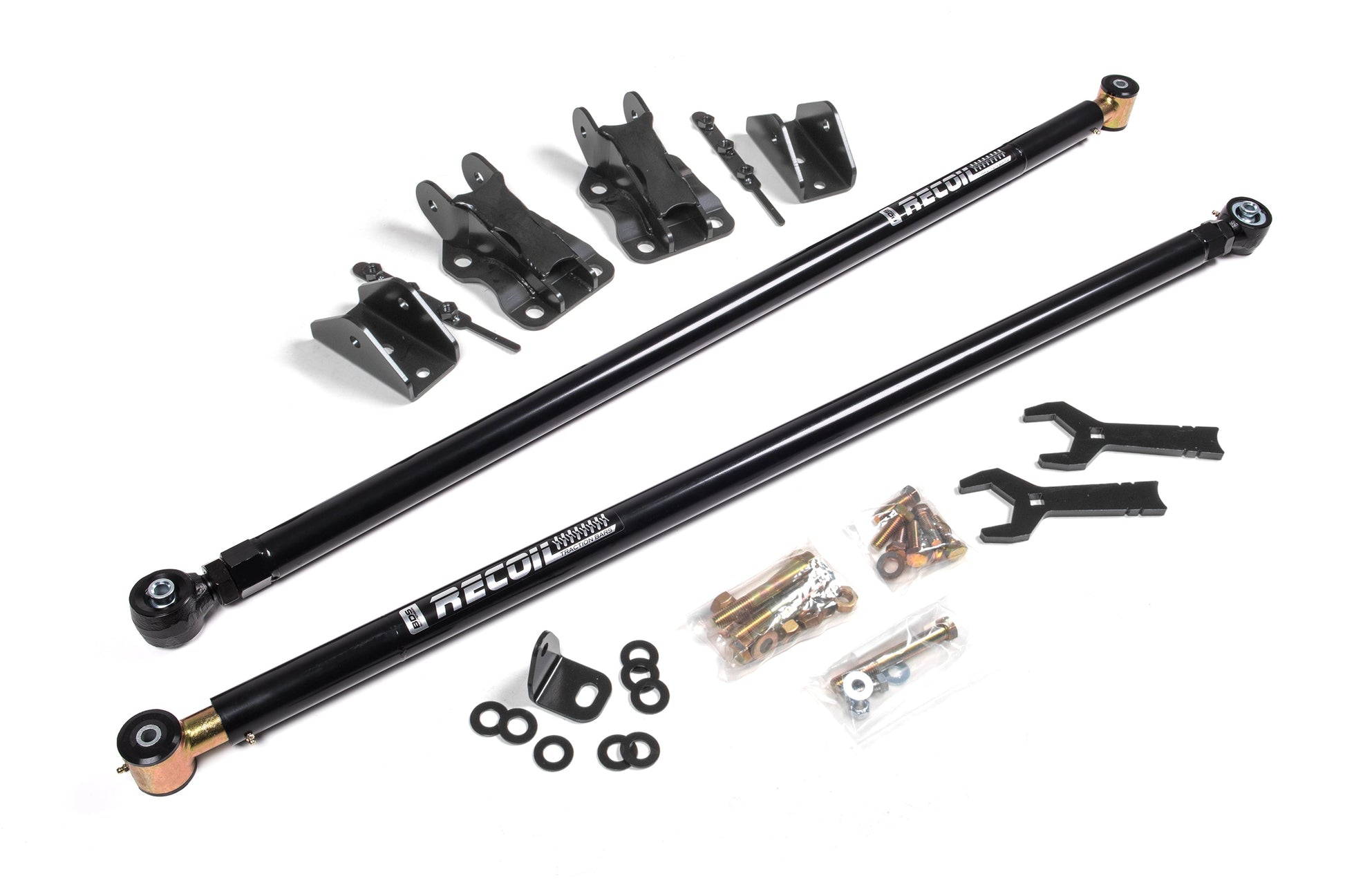

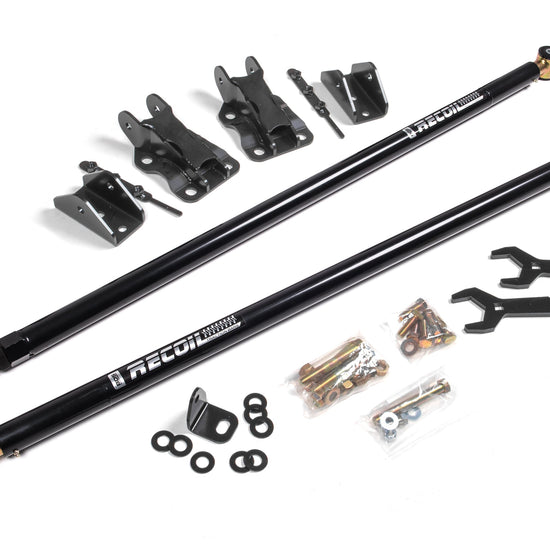

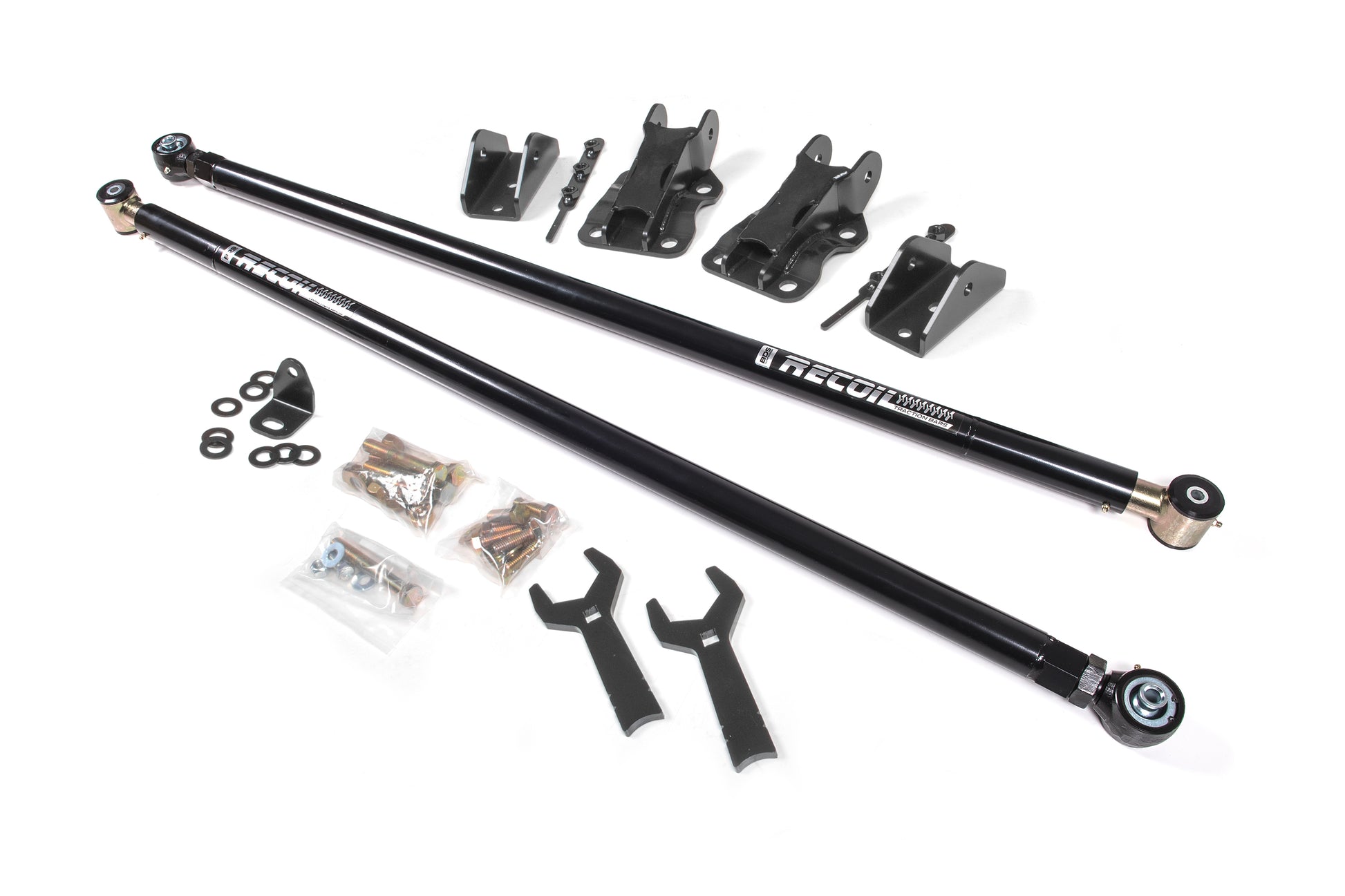

BDS Suspension 2017+ Ford F250/350 3.5-4" Axle Recoil Traction Bar & Mounting Kit
Improve traction on your 2017-2026 Ford F250 / F350 Super Duty 4WD (with 3.5-4 inch diameter axle) without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. Full float design for bind-free performance and can be installed with a range of lift heights.
Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.
Engineered to Perform
BDS suspension kits are purpose-built for strength, reliability, and a perfect fit. Each system includes everything you need to get your ute or truck sitting right, with no hidden extras.
Key Features:
- Lift heights from 2” to 8”
- Complete systems – nothing left out
- FOX shock upgrades available
- Designed to maintain factory ride comfort
- Lifetime No Fine Print Warranty
On-Road Comfort. Off-Road Capability.
From the bitumen to the bush, BDS delivers a smooth, controlled ride. Pair your kit with FOX shocks tuned for your vehicle, and you’ll have the confidence to tackle corrugations, ruts, and washouts with ease.
Highlights:
- Maintains driveline geometry
- Built for towing and heavy loads
- Designed and tested for tough Aussie conditions
Built Tough. Backed for Life.
Every BDS kit is finished with a premium powder coat for corrosion resistance and backed by a lifetime warranty. Break it, bend it, or crack it – BDS will replace it—no fine print. No worries.
Brand Promise:
- Lifetime warranty, no questions asked
- Trusted by off-roaders worldwide
- Backed by expert local support
Why Choose BDS Suspension?
BDS isn’t just another lift kit – it’s peace of mind. With precision engineering, heavy-duty components, and unbeatable after-sales support, you’re not just buying a kit, you’re investing in every trip your rig takes.
Quick Points:
- Proven performance in Aussie conditions
- Designed to work seamlessly with late-model 4WDs and utes
- Backed by one of the strongest warranties in the industry
Adventure Starts Here
Whether you’re towing the caravan, hauling gear for work, or hitting the tracks on the weekend, BDS Suspension gives your rig the clearance, stance, and strength it needs to handle anything Australia throws at it.
FREQUENTLY ASKED QUESTIONS
Yes. Lift kits must meet Australian vehicle standards. Check our GVM Upgrade page for the list of lift kits we can make compliant pre- and post-registration.
Generally, no. Under Australian Consumer Law, your warranty can only be denied if the lift kit directly causes a failure.
Refer to the wheels and tyres compatibility table above on the product page, which specifies the correct sizes for each BDS lift kit.
Contact us to be put in touch with a reputable installer, or check our Dealer Network for approved fitment specialists.
BDS provides a manufacturer warranty covering defects in materials and workmanship. Terms vary by product, so check the product page for details.
It depends on your vehicle. Check our GVM Upgrade page for the list of lift kits that can be made compliant pre- and post-registration.
Yes. All BDS lift kits are FMVSS compliant and have passed Electronic Stability Control (ESC) tests.
Short answer: No. Strut and coil spacers are not legal for compliance in Australia.
Installation requires specialised tools and expertise. While experienced DIYers can attempt it, professional installation is highly recommended to ensure safety and compliance.
Yes. A lift kit changes the vehicle’s centre of gravity and suspension geometry. BDS kits are engineered to maintain safe handling, but correct installation and setup are essential.
Not usually. Most BDS kits include upgraded shocks designed to match the lift, ensuring proper ride quality, handling, and compliance.
BDS lift kits are designed to maintain towing and payload capacity, but check the vehicle-specific kit and consider any additional suspension or GVM upgrades.
America’s Garage adapts BDS kits for Australian conditions, removing spacers and supplementing with coils and shocks to meet legal compliance and provide optimal performance.
Other unrelated components remain under warranty. Only parts directly affected by the lift installation could potentially be questioned in a warranty claim.
