Understanding Lift Kit Knuckles on 4” & 6” Kits
If you’ve ever looked under a properly lifted half-ton truck and wondered how it still drives straight, smooth, and stable — the answer is the steering knuckle.
Many people assume a 4” or 6” lift is just taller springs or spacers. On modern independent front suspension trucks, that approach simply doesn’t work. Suspension geometry is far too sensitive.
That’s why quality lift kits from BDS Suspension and Zone Offroad include replacement steering knuckles — and why they’re arguably the most important component in the entire system.

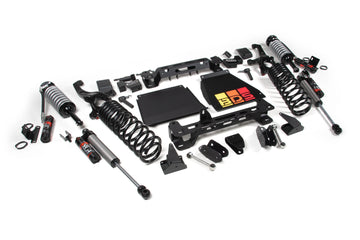

What the Steering Knuckle Actually Does
The factory steering knuckle is responsible for holding and positioning critical front-end components, including:
- Wheel hub & bearing
- Brake assembly
- Upper and lower ball joints
- Tie rod (steering connection)
From the factory, the hub sits roughly centered between the upper and lower control arms. This positioning is critical to maintaining proper suspension and steering geometry.

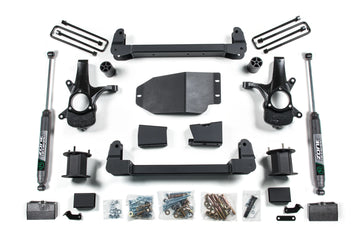

Why You Can’t Just “Lift the Truck”
Simply raising the chassis without correcting geometry forces the control arms into extreme downward angles. This leads to:
- Premature ball joint failure
- CV axle binding
- Poor steering response and bump steer
Instead of just lifting the body, properly engineered kits reposition the wheel hub itself. Aftermarket knuckles are built taller, relocating the hub higher relative to the control arms. This allows the truck to gain height while keeping suspension angles close to factory specifications.
That’s why a well-designed 4” or 6” lift still tracks straight down the highway.

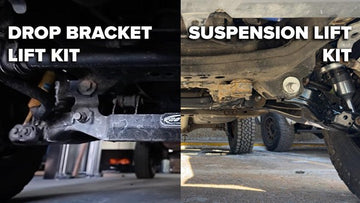

How the Knuckle Works with the Diff Drop
The steering knuckle solves one part of the geometry puzzle, but it can’t do everything on its own.
When the hub is repositioned, CV axles would normally operate at a much steeper angle. To correct this, quality lift kits include a front differential drop.
This accomplishes two key things:
- Reduces CV axle operating angles
- Prevents binding, vibration, and long-term wear
Together, the knuckle and diff drop work as a system — creating lift while preserving driveline reliability.

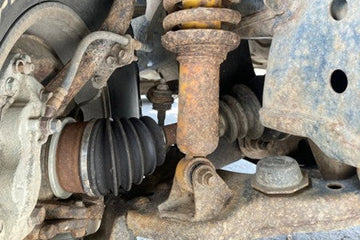

Why Wheel Choice Becomes Critical
A lot of people think a 4” or 6” lift
is just “bigger springs” or a spacer.
On modern IFS trucks (Ram 1500, F-150 and GM 1500s), that simply doesn’t work
anymore. The suspension geometry is too sensitive.
That’s why BDS Suspension and Zone
Offroad kits include replacement steering knuckles and they’re arguably the
most important part of the entire lift kit.
What the Knuckle Actually Does
The factory steering knuckle is the component that holds the wheel hub and bearing, the brake assembly, the upper and lower ball joints, and the tie rod for steering.
On a standard truck, the wheel hub sits roughly centered between the upper and lower control arms. A suspension lift can’t simply push the body upward, because doing so would force the control arms into severe downward angles. This leads to premature ball joint failure, CV axle binding, and poor steering characteristics such as bump steer.
Instead of lifting only the chassis, properly engineered lift kits reposition the wheel itself. The aftermarket steering knuckle is designed taller, relocating the wheel hub higher in relation to the control arms. This allows the body to gain height while keeping control arm angles close to factory specifications. That’s why a well-designed lift still drives straight and stable on the highway.

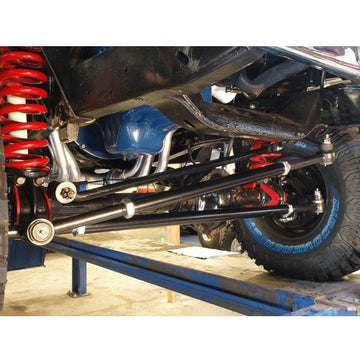

Why Wheel Choice Matters?
When running a 4” or 6” lift that uses replacement steering knuckles, wheel selection becomes more important than most people expect.
Because the aftermarket knuckle relocates the steering arm, the tie rod end no longer sits in the same position as it does on a factory suspension. It now sits higher, slightly further outward, and closer to the inner barrel of the wheel. This change dramatically affects wheel clearance, especially at full steering lock.
As a result, many factory wheels — and even some aftermarket wheels — will contact the tie rod end. This is not a flaw in the lift kit, but a byproduct of proper suspension geometry correction.

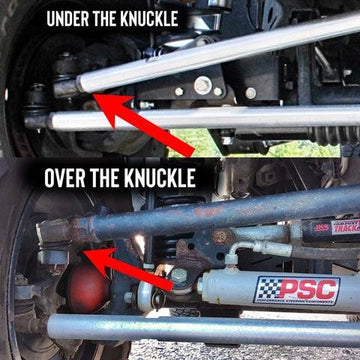

Wheel Fitment Guidelines
Best option
- 20” wheels, which typically provide adequate inner barrel clearance
Can work
- 18” wheels with negative offset
Sometimes works
- 18” wheels with 0 offset
In some cases, 18” wheels with zero offset may require light trimming of the outer edge of the tie rod end to achieve full-lock clearance.
Choosing the correct wheel setup from the start prevents fitment issues, eliminates unnecessary modifications, and ensures the lift performs as intended.

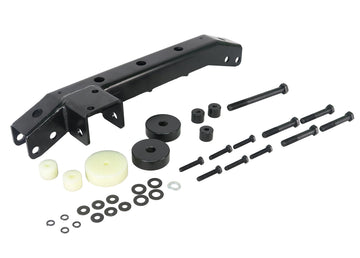

Why Manufacturers Design Lift Kits This Way?
Today’s American half-ton trucks use independent front suspension to maintain ride quality and steering precision. To preserve that factory feel, lift kits must control:
- Ball joint angles
- CV axle angles
- Steering arc and geometry
The replacement knuckle is what allows a lifted IFS truck to drive like a truck — not a farm buggy.
The Knuckle Is the Heart of a Proper IFS Lift
The steering knuckle is what makes a lifted truck drive correctly.
The diff drop protects the CV axles.
And the tie rod relocation is why wheel selection becomes critical.
When planning a 4” or 6” lift, choose your wheels first — not last.
